Egenskaber

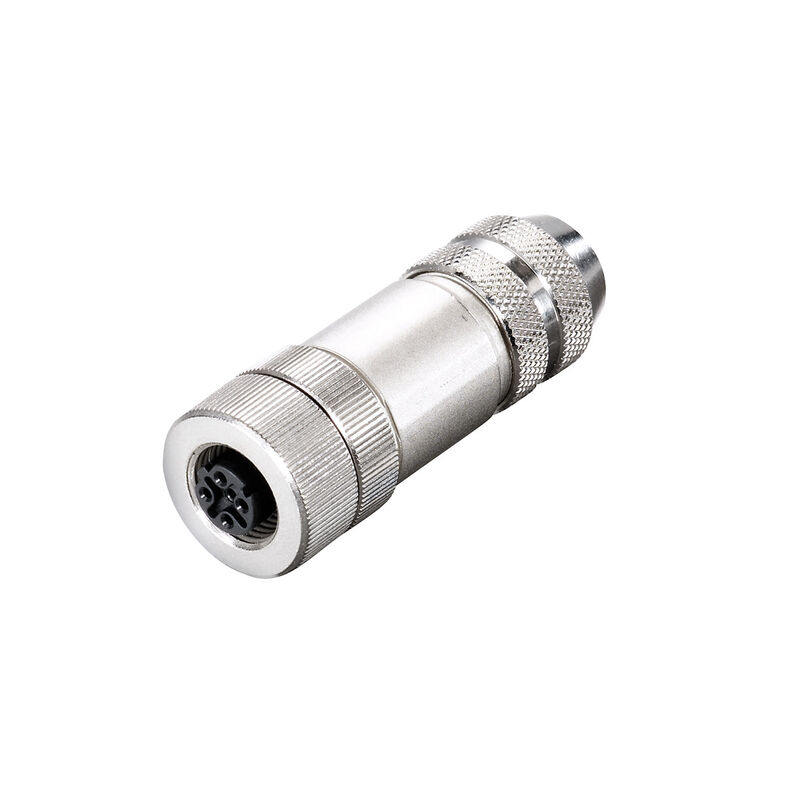

| Version | Field attachable connector, M12 |
| Order No. | 1892130000 |
| Type | SAIBM-4/8S-M12-4P D-COD |
| GTIN (EAN) | 4032248569373 |
| Qty. | 1 Styk |
| Net weight | 48 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC |
Lead 7439-92-1
Imidazolidine-2-thione 96-45-7 |
| SCIP | bcee35cf-c0f5-43d2-8daf-65ab0d08641a |

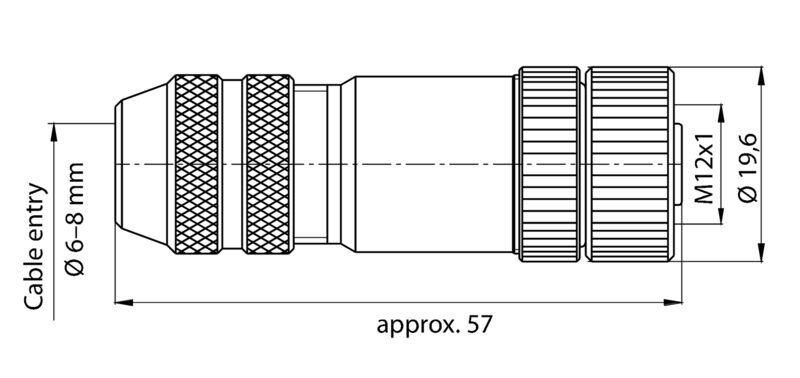

| Cable diameter, max. | 8 mm |
| Cable diameter, min. | 6 mm |

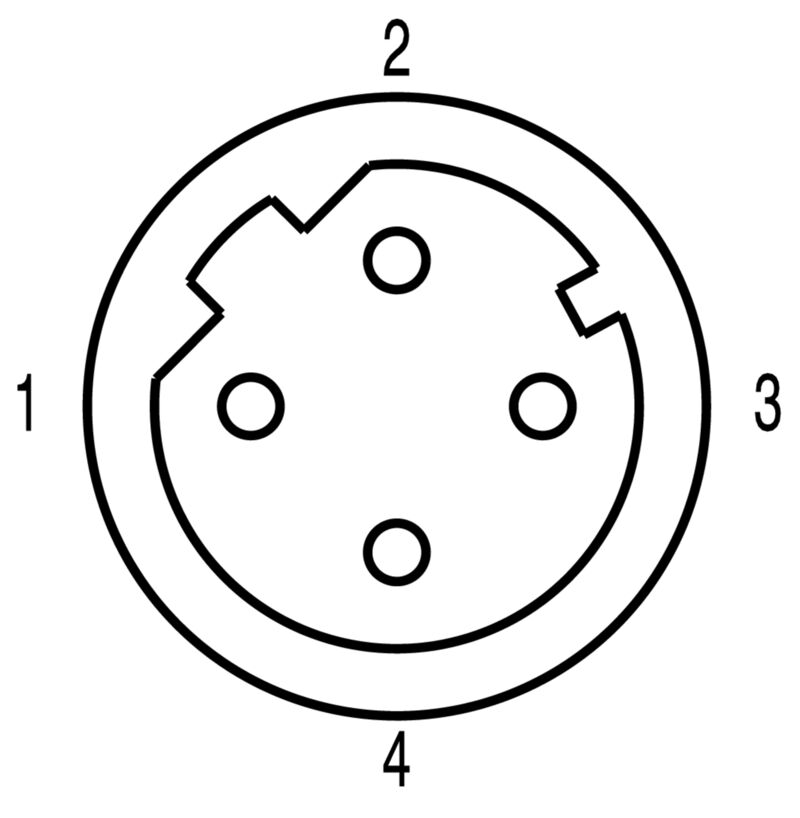

| Coding | D-coded |
| Conductor cross-section, max. | 0,75 mm² |
| Conductor cross-section, min. | 0,14 mm² |
| Connection cross-section, max. | 0,75 mm² |
| Connection cross-section, min. | 0,14 mm² |
| Contact surface | Gold-plated |
| Gender of contact | Female |
| Housing main material | CuZn |
| Insulation strength | 108 Ω |
| Number of poles | 4 |
| Plugging cycles | ≥ 100 |
| Pollution severity | 3 |
| Protection degree | IP67 |
| Rated current | 4 A |
| Rated voltage | 250 V |
| Shield connection | Yes |
| Temperature range of housing | -40 … +85 ° C |
| Threaded ring material | Diecast zinc |
| Type of connection | Screw connection |
| Number of poles | 4 |
| Connection 1 | M12 |
| Connection 2 | Screw |
| Housing main material | CuZn |
| Connection thread | M12 |
| Contact surface | Gold-plated |
| Protection degree | IP67 |
| Plugging cycles | ≥ 100 |
| Insulation strength | 108 Ω |
| Rated voltage | 250 V |
| Certificate No. (cURus) | E307231 |
| Connector standard | IEC 61076-2-101 |
| Connector standard | IEC 61076-2-101 |
| Approval/Certificate/Document of Conformity | [PROFINET Manufacturer's Declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_67339) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_177487) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1892130000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1892130000) |
| User Documentation | [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_71216) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 9.0 | EC002635 |
| ECLASS 9.0 | 27-44-01-02 |
| ECLASS 9.1 | 27-44-01-03 |
| ECLASS 10.0 | 27-44-01-02 |
| ECLASS 11.0 | 27-44-01-02 |
| ECLASS 12.0 | 27-44-01-16 |
| ECLASS 13.0 | 27-44-01-02 |
| ECLASS 14.0 | 27-44-01-16 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html) |
| Certificate No. (cURus) | E307231 |
