Egenskaber

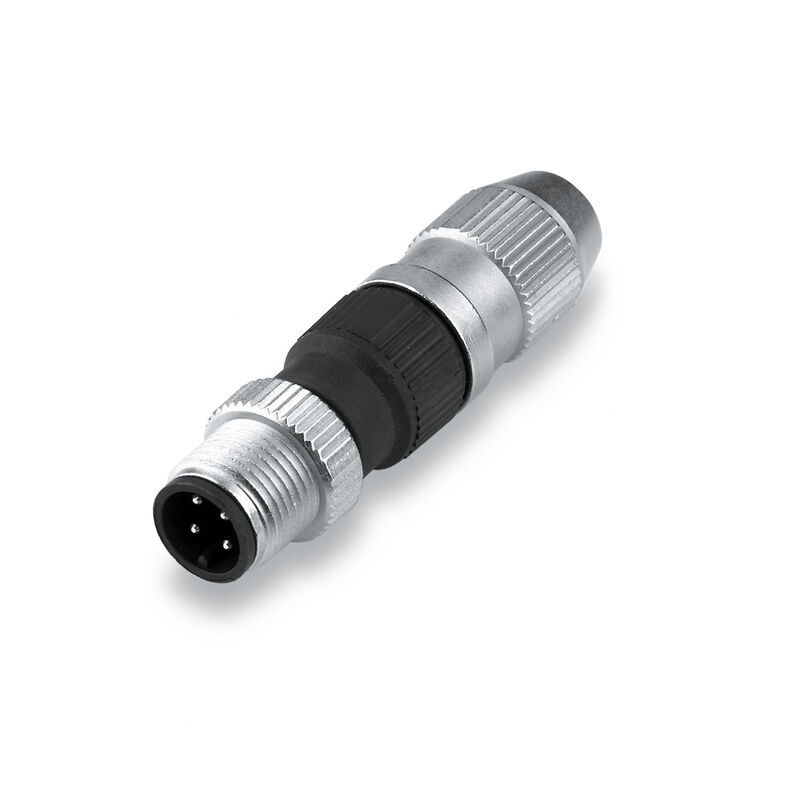

| Version | Field attachable connector, M12 |
| Order No. | 1781550000 |
| Type | SAIS-4-IDC M12 |
| GTIN (EAN) | 4032248172146 |
| Qty. | 1 Styk |
| Alternative product | [1781550001](~/p/1781550001) |
| Net weight | 22 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Cable diameter, max. | 5,1 mm |
| Cable diameter, min. | 4 mm |
| Coding | A-coded |
| Conductor cross-section, max. | 0,5 mm² |
| Conductor cross-section, min. | 0,25 mm² |
| Contact surface | tinned |
| Gender of contact | Male |
| Housing main material | CuZn |
| Insulation strength | 108 Ω |

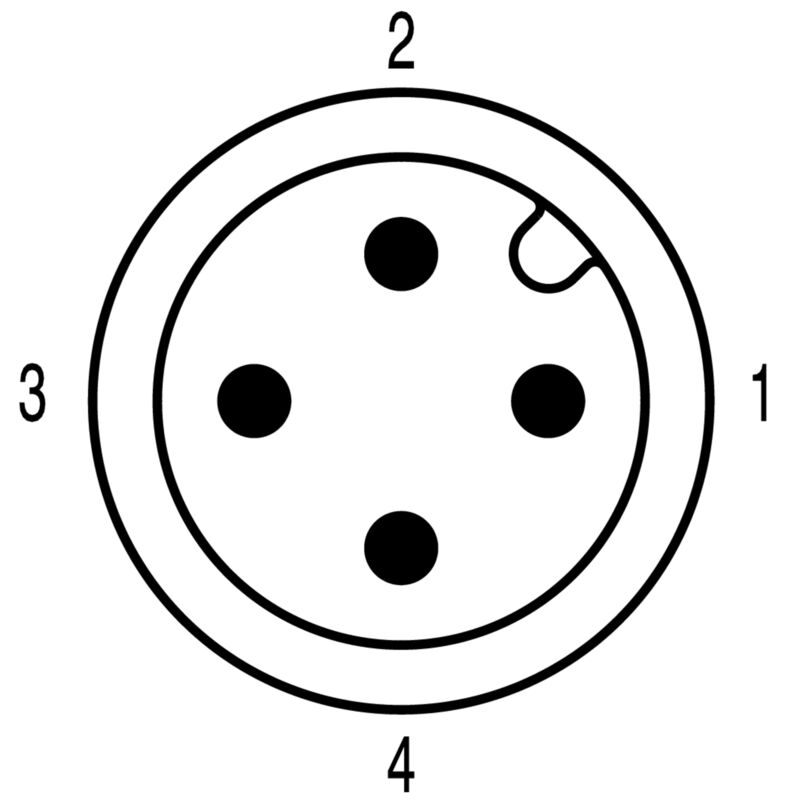

| Number of poles | 4 |
| Plugging cycles | ≥ 50 |
| Pollution severity | 3 |
| Protection degree | IP67 |
| Rated current | 4 A |
| Rated voltage | 32 V |
| Shield connection | No |
| Temperature range of housing | -25…+85 °C |
| Threaded ring material | Diecast zinc |
| Type of connection | Insulation displacement connection |
| Number of poles | 4 |
| Connection 1 | M12 |
| Connection 2 | IDC |
| Housing main material | CuZn |
| Connection thread | M12 |
| Contact surface | tinned |
| Protection degree | IP67 |
| Plugging cycles | ≥ 50 |
| Connector standard | IEC 61076-2-101 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_188565) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1781550000) |
| User Documentation | [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_71210) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 9.0 | EC002635 |
| ECLASS 9.0 | 27-44-01-02 |
| ECLASS 9.1 | 27-44-01-03 |
| ECLASS 10.0 | 27-44-01-02 |
| ECLASS 11.0 | 27-44-01-02 |
| ECLASS 12.0 | 27-44-01-16 |
| ECLASS 13.0 | 27-44-01-02 |
| ECLASS 14.0 | 27-44-01-16 |
| ROHS | Conform |
