Egenskaber

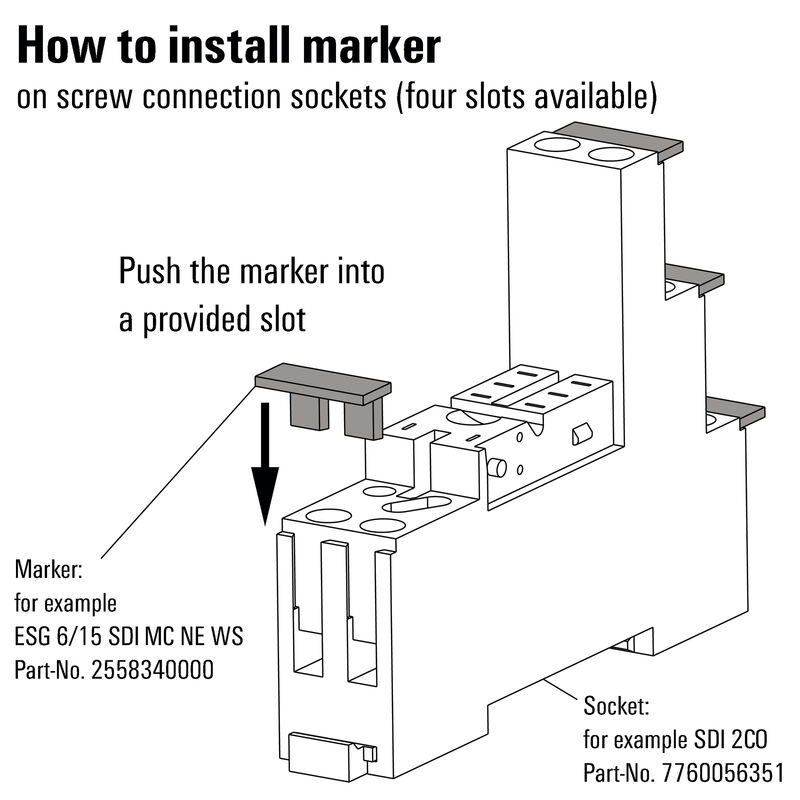

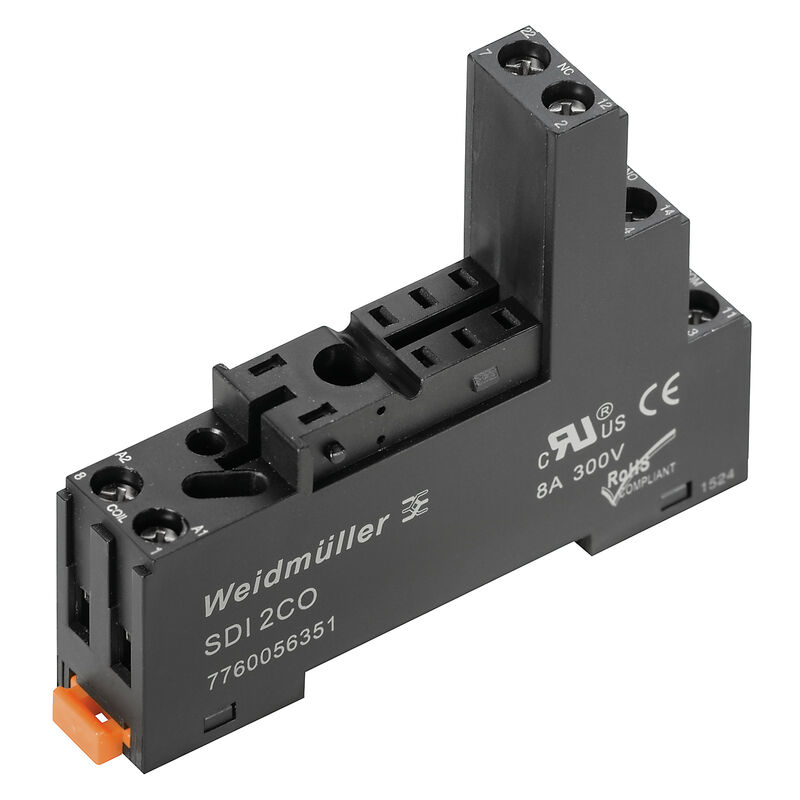

| Version | D-SERIES DRI, Relay socket, Number of contacts: 2, CO contact, Continuous current: 8 A, Screw connection |
| Order No. | 7760056351 |
| Type | SDI 2CO |
| GTIN (EAN) | 6944169739989 |
| Qty. | 10 Styk |

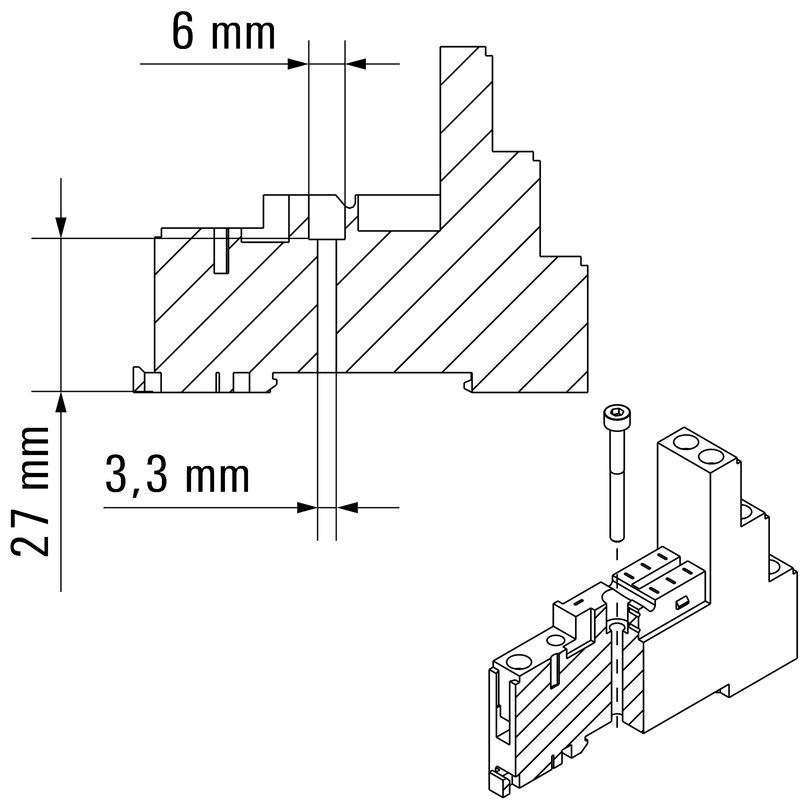

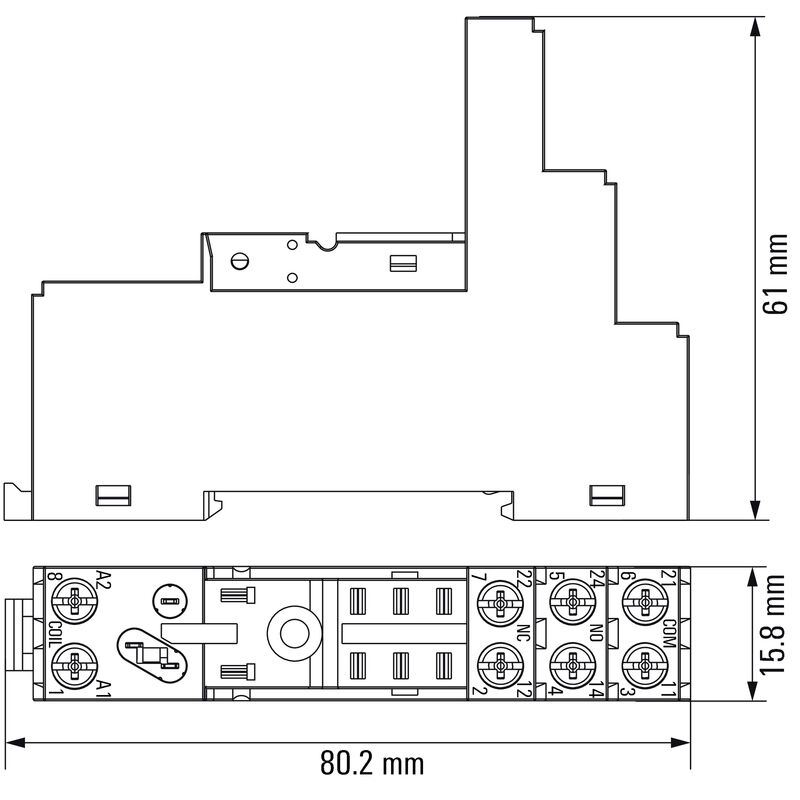

| Depth | 61 mm |
| Depth (inches) | 2,402 inch |
| Height | 80,2 mm |
| Height (inches) | 3,157 inch |
| Width | 15,8 mm |
| Width (inches) | 0,622 inch |
| Net weight | 42,4 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...70 °C |
| Humidity | 35...85 % rel. humidity, no condensation |
| RoHS Compliance Status | Compliant |
| REACH SVHC | No SVHC above 0.1 wt% |
| Certificate No. (cURus) | E355547 |
| Rated switching voltage | 250 V AC |
| Continuous current | 8 A |
| Max. switching voltage, AC | 250 V |
| Contact type | 2 CO contact |
| Rail | TS 35 |
| Colour | black |
| UL94 flammability rating component |
|
| Rated voltage | 250 V |
| Pollution severity | 2 |
| Surge voltage category | III |
| Insulating material group | IIIb |
| Clearance and creepage distances for control side - load side | ≥ 3 mm |
| Dielectric strength for control side - load side | 4 kVeff / 1 Min. |
| Dielectric strength of neighbouring contacts | 2.5 kVeff / 1 Min. |
| Impulse withstand voltage | 4.8 kV (1.2/50 µs) |
| Protection degree | IP20 |
| Certificate No. (cURus) | E355547 |
| Wire connection method | Screw connection |
| Stripping length, rated connection | 8 mm |
| Tightening torque, min. | 0,5 Nm |
| Tightening torque, max. | 0,8 Nm |
| Clamping range, rated connection | 1,5 mm² |
| Clamping range, min. | 0,25 mm² |
| Clamping range, max. | 4 mm² |
| Wire cross-section, solid, min. | 0,25 mm² |
| Wire cross-section, solid, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0,25 mm² |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,25 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 4 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0,25 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 4 mm² |
| Blade size | size PH1 |
| Approval/Certificate/Document of Conformity | [EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35367) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66563) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.7760056351) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=7760056351) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001456 |
| ETIM 7.0 | EC001456 |
| ETIM 8.0 | EC001456 |
| ETIM 9.0 | EC001456 |
| ECLASS 9.0 | 27-37-16-03 |
| ECLASS 9.1 | 27-37-16-03 |
| ECLASS 10.0 | 27-37-16-03 |
| ECLASS 11.0 | 27-37-16-03 |
| ECLASS 12.0 | 27-37-16-03 |
| ECLASS 13.0 | 27-37-16-03 |
| ECLASS 14.0 | 27-37-16-03 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E355547 |
