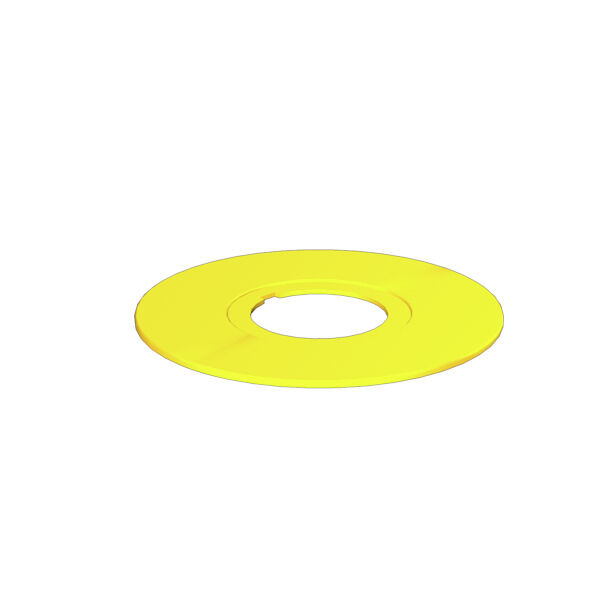

SwitchMark, Device markers, 60 x 60 mm, ø 60 - 22 mm, Siemens 3 SB, Eaton Moeller M22-PV, To customer specification

Ürün No. 1323740000
Veri sayfasını indir Product Downloads Engineering Support
İlgili ürünler 1
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Device markers Classifications

Approvals

ROHS
Conform

General ordering data

Ausfuehrung
SwitchMark, Device markers, 60 x 60 mm, ø 60 - 22 mm, Siemens 3 SB, Eaton Moeller M22-PV, To customer specification
Best.-Nr.
1323740000
Type
SM DIA 60-22 MC SDR
GTIN (EAN)
4050118127003
Qty.
2 adet

Dimensions and weights

Tiefe
1,2 mm
Depth (inches)
0,047 inch
Height
60 mm
Height (inches)
2,362 inch
Width
60 mm
Width (inches)
2,362 inch
Diameter
22 mm
Net weight
7 g

Temperatures

Temperaturområde för användning
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Ślad węglowy produktu
  • Cradle to gate:
    0.063 kg CO2 eq.

General data

Basic material
Polyamide 66
Caracteres impresos
Requires M-Print PRO File
Colour
To customer specification
Halogen
No
Jelölők száma kombinációnként
1 MultiCard = Device markers
kompatibilis nyomtató
[PRINTJET CONNECT](~/p/2715590000)
[MCP PLUS](~/p/1925000000)
Nombre de repérages par unité d'emballage

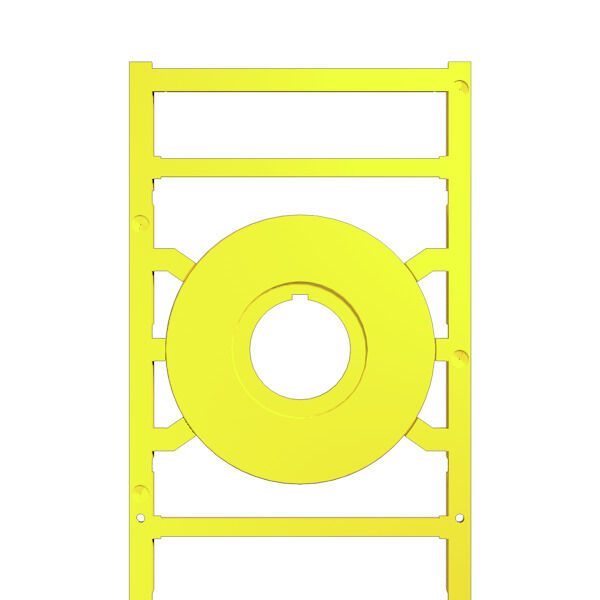

  • Form of supply:
    MultiCard
Operating temperature range
-40...100 °C
Operating temperature range, max.
100 °C
Operating temperature range, min.
-40 °C
UL 94 flammability rating
V-2
Version
Self-adhesive
Width
60 mm
응용 분야/제조사
ø 60 - 22 mm
Siemens 3 SB
Eaton Moeller M22-PV

Device markers

Diameter
22 mm
Halogen
No

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
