Egenskaber

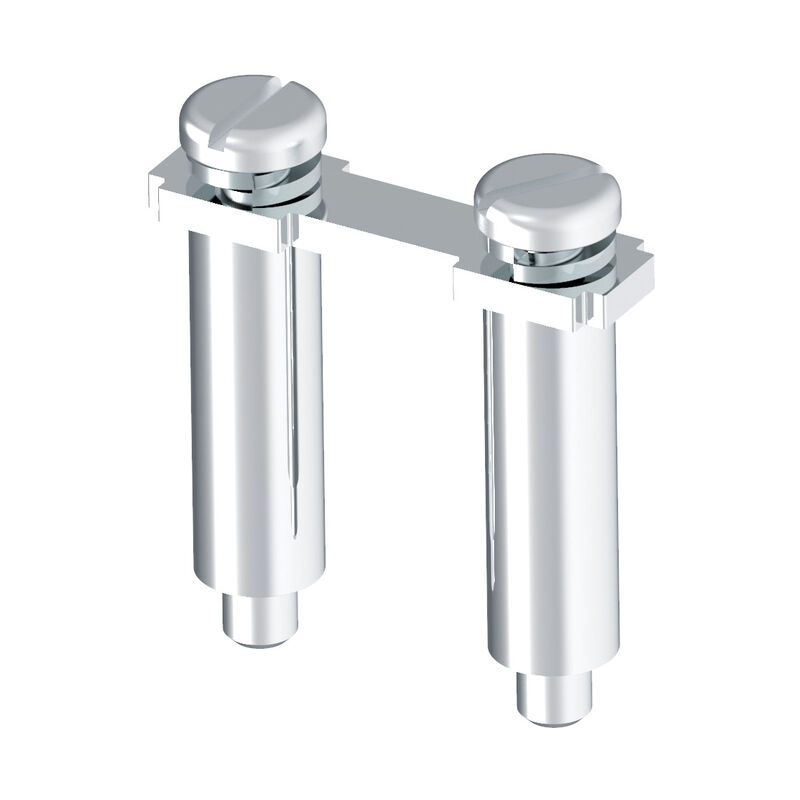

| Version | Cross-connector (terminal), when screwed in, black, grey, 125 A, Number of poles: 2, Pitch in mm (P): 18.00, Insulated: No, Width: 26 mm |
| Order No. | 2615080000 |
| Type | SQV 6/2 |
| GTIN (EAN) | 4050118653908 |
| Qty. | 100 Styk |
| Depth | 32 mm |
| Depth (inches) | 1,26 inch |
| Height | 7,5 mm |
| Height (inches) | 0,295 inch |
| Width | 26 mm |
| Width (inches) | 1,024 inch |
| Net weight | 8,71 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | PA |
| Colour |
black
grey |
| Version | Cross-connector |
| Explosion-tested version | No |
| Type of fixing | when screwed in |
| Type of mounting | when screwed in |
| Rated current, multi-pole | 125 A |
| Type | Cross-connector |
| Pitch in mm (P) | 18 mm |
| Number of poles | 2 |
| Rated current | 125 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205560) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2615080000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2615080000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ECLASS 14.0 | 27-25-03-03 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:2614960000Pakningsenhed:50 Styk
Stud terminal, Threaded stud connection, grey, 35 mm², 125 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, TS 32, V-0, Polyamide
Terminal BlocksUniversal rangeStud technologySRL-Series35 mm²
