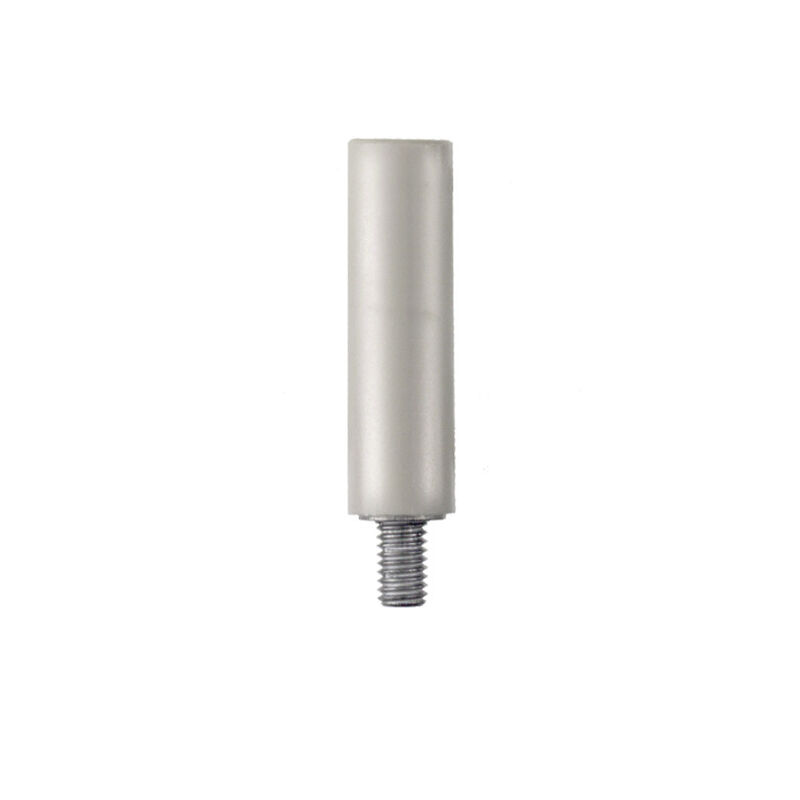

STB 21.6/IH/DB WTL6/3

Socket (terminal), Plug-in depth: 11.1 mm, Depth: 26.6 mm

Produkt ID 1071000000

Egenskaber

General ordering data

Version	Socket (terminal), Plug-in depth: 11.1 mm, Depth: 26.6 mm
Order No.	1071000000
Type	STB 21.6/IH/DB WTL6/3
GTIN (EAN)	4008190259204
Qty.	50 Styk

Dimensions and weights

Depth	26,6 mm
Depth (inches)	1,047 inch
Height	6,1 mm
Height (inches)	0,24 inch
Width	6,1 mm
Width (inches)	0,24 inch
Net weight	2,32 g

Temperatures

Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	120 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c
REACH SVHC	Lead 7439-92-1
SCIP	dce63e23-eea1-4eaa-9071-1c98fc8fa2ea

Material data

Material	Wemid
Colour	dark beige
UL 94 flammability rating	V-0

System specifications

Version

For the terminals

Additional technical data

Explosion-tested version	No
Installation advice	Direct mounting
Type of fixing	when screwed in
Type of mounting	when screwed in

Dimensions

Plug-in depth

11,1 mm

General

Installation advice	Direct mounting
Operating temperature range, max.	100 °C

Downloads

Approval/Certificate/Document of Conformity	[Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_224710)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1071000000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1071000000)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1071000000&norm=0)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002848
ETIM 7.0	EC002848
ETIM 8.0	EC002848
ETIM 9.0	EC002848
ECLASS 9.0	27-14-11-92
ECLASS 9.1	27-14-11-92
ECLASS 10.0	27-14-11-92
ECLASS 11.0	27-14-11-92
ECLASS 12.0	27-14-11-92
ECLASS 13.0	27-25-03-90
ECLASS 14.0	27-25-03-90

Approvals

ROHS

Conform
