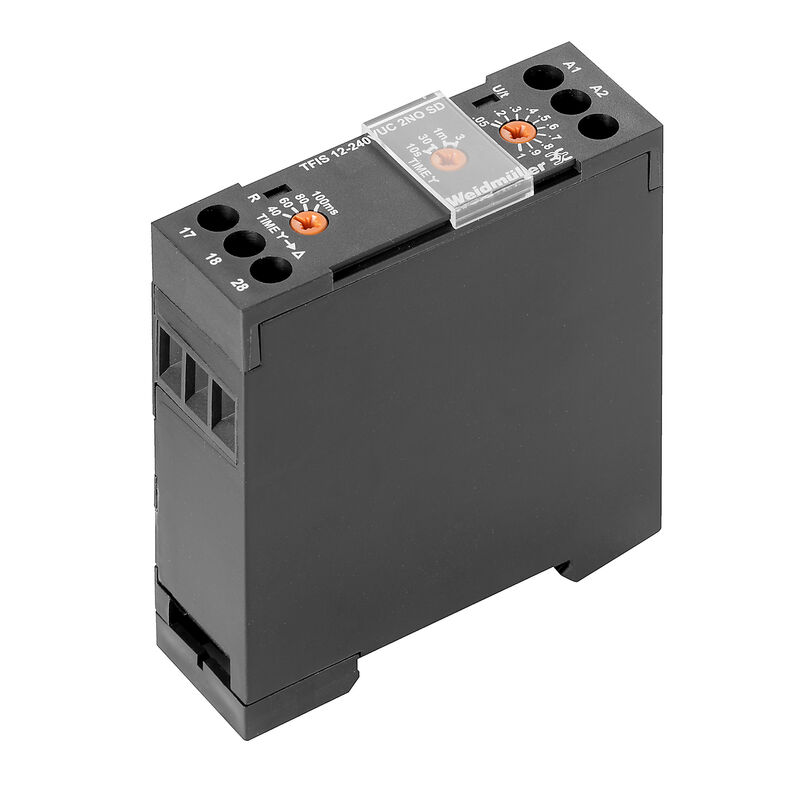

TFIS 12-240VUC 2NO SD — Product image

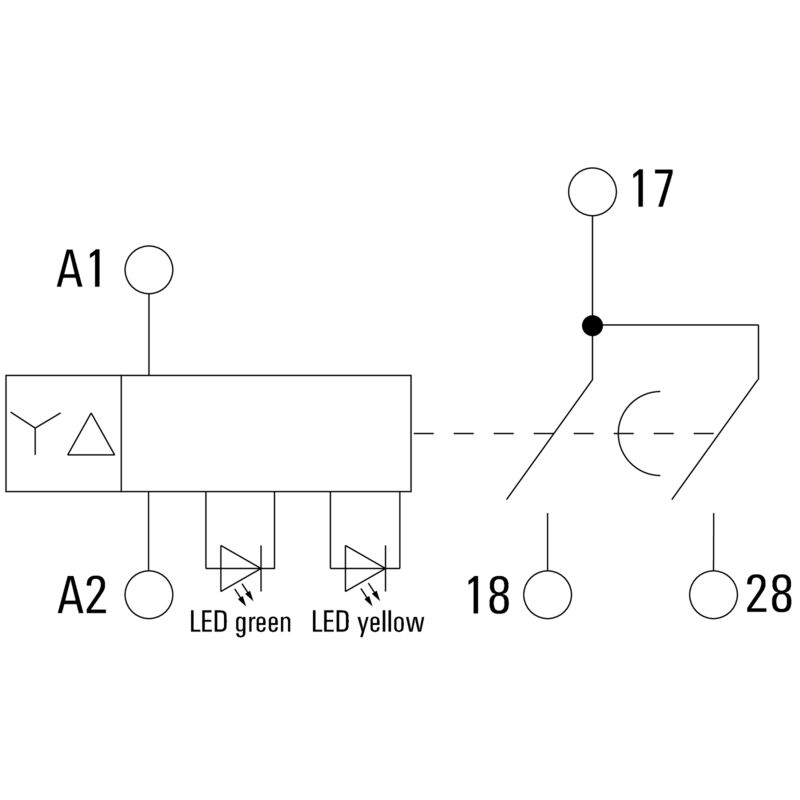

TFIS 12-240VUC 2NO SD — Wiring diagram

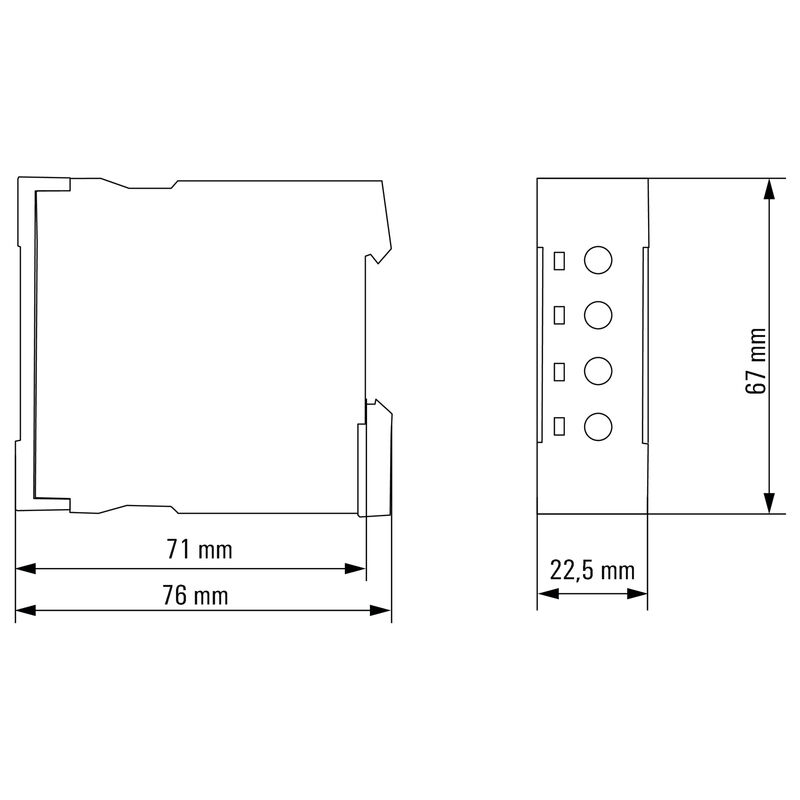

TFIS 12-240VUC 2NO SD — Dimensional drawing

TFIS 12-240VUC 2NO SD — Miscellaneous

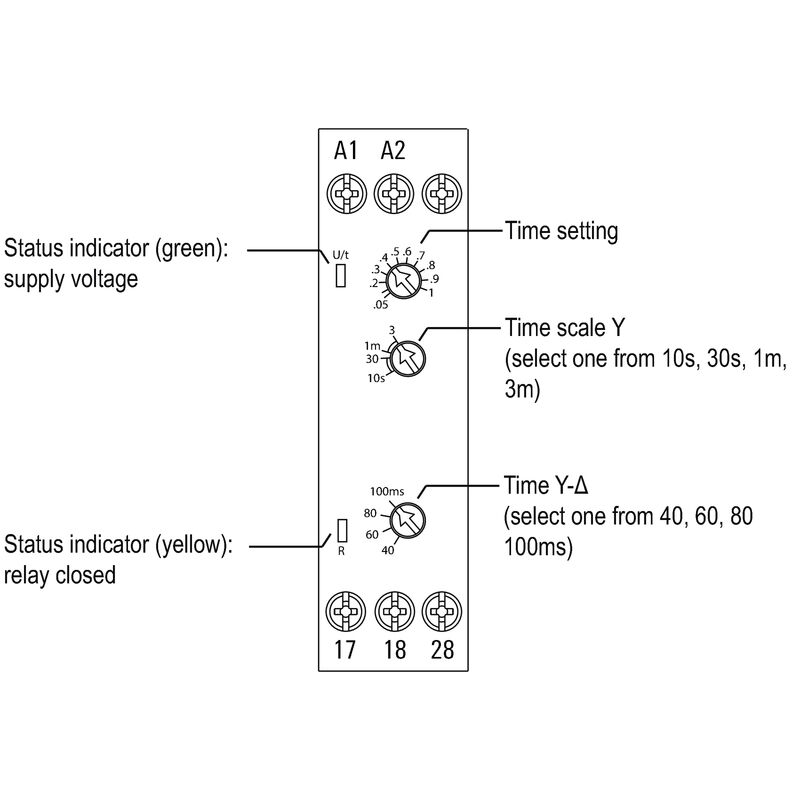

Detailed drawing

TFIS 12-240VUC 2NO SD — Graph

Time functions

TFIS 12-240VUC 2NO SD — Type codes

Miscellaneous

Download datablad Anvendte produkter

TFIS 12-240VUC 2NO SD

TFI-SERIES, Star-Delta Timer, Number of contacts: 2, NO contact, AgNi, Rated control voltage: 12...240 V UC -10 % / +10 %, Continuous current: 3 A, Screw connection

Produkt ID 2697270000

Egenskaber

General ordering data

Version	TFI-SERIES, Star-Delta Timer, Number of contacts: 2, NO contact, AgNi, Rated control voltage: 12...240 V UC -10 % / +10 %, Continuous current: 3 A, Screw connection
Order No.	2697270000
Type	TFIS 12-240VUC 2NO SD
GTIN (EAN)	4050118705270
Qty.	1 Styk

Dimensions and weights

Depth	75 mm
Depth (inches)	2,953 inch
Height	67 mm
Height (inches)	2,638 inch
Width	225 mm
Width (inches)	8,858 inch
Net weight	81 g

Storage temperature	-40 °C...70 °C
Operating temperature	-25 °C...60 °C
Humidity	5…95 % rel. humidity, no condensation

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Rated control voltage	12...240 V UC -10 % / +10 %
Power rating	500 mVA 180 mW
Status indicator	LED green (U/t) flashes: star-relay closed, time runs LED green (U/t) lights permanently: delta-relay closed, time runs LED yellow (R): star-relay closed
Time ranges	0.5 s - 10 s 1.5 s - 30 s 3 s - 60 s 9 s - 180 s
Setting tolerance	5 %
Max. reset time after voltage interruption	200 ms
Basic accuracy	± 1 % (of scale-end value)
Min. pulse duration	100 ms
Repeat accuracy	<0.5 % or ±5 ms

Rated switching voltage	250 V AC
Continuous current	3 A
Max. switching voltage, AC	250 V
Max. switching voltage, DC	30 V
Min. switching power	10 mA @ 12 V 100 mA @ 5 V
AC switching capacity (resistive), max.	750 VA
DC switching capacity (resistive), max.	90 W
Contact type	2 NO contact (AgNi)
Electrical service life, DC coil	100x10³ switching cycles (3 A at 250 VAC)
Mechanical service life	20 x 10⁶ switching cycles

Suitable for front mounting	No
Rail	TS 35
Test button available	No
Mechanical switch position indicator	No
Colour	black
UL 94 flammability rating	V-0
UL94 flammability rating component	Component: Housing UL94 flammability rating: V-0
Resistance to vibration EN 61812-1	10 Hz...60 Hz: 0.15 mm 60 Hz...150 Hz: 2 g

Insulation coordination

Rated voltage	300 V
Pollution severity	2
Surge voltage category	III
Clearance and creepage distances for control side - load side	≥ 3 mm
Dielectric strength for control side - load side	1.6 kV
Impulse withstand voltage	4 kV
Protection degree	IP20

Further details of approvals / standards

Certificate no. (cULus)

E360862

Connection data

Wire connection method	Screw connection
Stripping length, rated connection	8 mm
Tightening torque, max.	1 Nm
Clamping range, rated connection	2,5 mm²
Clamping range, min.	0,5 mm²
Clamping range, max.	4 mm²
Wire connection cross section AWG, min.	AWG 20
Wire connection cross section AWG, max.	AWG 12
Wire cross-section, solid, min.	0,5 mm²
Wire cross-section, solid, max.	4 mm²
Wire connection cross section, finely stranded, min.	0,5 mm²
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.	0,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.	2,5 mm²
Wire connection cross section, finely stranded, two clampable wires, min.	0,5 mm²
Wire cross-section, finely stranded, two clampable wires, max.	2,5 mm²
Blade size	size PH1

Approval/Certificate/Document of Conformity	[EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_94019)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_96351)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2697270000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2697270000)
User Documentation	[Beschreibung der Zeitfunktionen - Deutsch](https://mdcop.weidmueller.com/mediadelivery/asset/900_97434) [Declaration of timing functions - English](https://mdcop.weidmueller.com/mediadelivery/asset/900_97444) [Beipackzettel / Package Insert – multilingual](https://mdcop.weidmueller.com/mediadelivery/asset/900_102535)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC001439
ETIM 7.0	EC001439
ETIM 8.0	EC001439
ETIM 9.0	EC001439
ECLASS 9.0	27-37-16-05
ECLASS 9.1	27-37-16-05
ECLASS 10.0	27-37-16-05
ECLASS 11.0	27-37-16-05
ECLASS 12.0	27-37-16-05
ECLASS 13.0	27-37-16-05
ECLASS 14.0	27-37-16-05

Approvals	![CE](/picture/CE.gif) ![CULUS](/picture/CULUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate no. (cULus)	E360862
