THM MT30X 45/23 WS
THM MT30X 45/23 WS

THM MT30X 45/23 WS

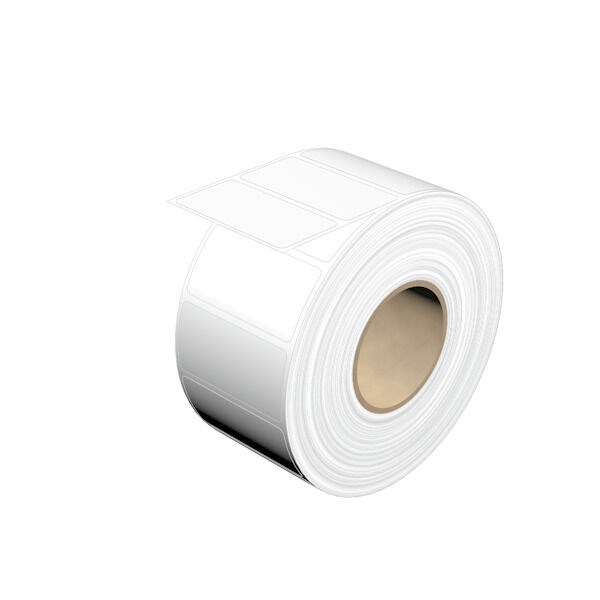

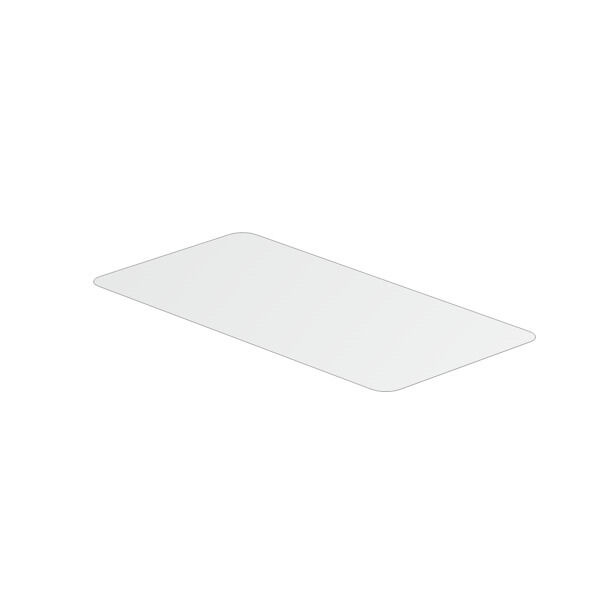

THM, Device markers, 23 x 45 mm, white

Produkt ID 1751811044
Download datablad Engineering Support Product Downloads
Tilbehør 1 Anvendte produkter 32
Approvals 일반 주문 데이터 Dimensioni e pesi Temperatures 환경 제품 규정 준수 General data Device markers Classifications

Approvals

ROHS
Conform

일반 주문 데이터

Version
THM, Device markers, 23 x 45 mm, white
Order No.
1751811044
Type
THM MT30X 45/23 WS
GTIN (EAN)
4032248001606
Qty.
1 Styk

Dimensioni e pesi

Depth
0,08 mm
Głębokość (cale)
0,003 inch
Height
23 mm
Height (inches)
0,906 inch
Width
45 mm
Width (inches)
1,772 inch
Net weight
220 g

Temperatures

Operating temperature range
-40...150 °C

환경 제품 규정 준수

RoHS Compliance Status
준수, 예외 미존재
REACH SVHC
No SVHC above 0.1 wt%

General data

Adhesive
Acrylate adhesive
Approval acc. to UL 969
Yes
Basic material
Polyester
Colour
white
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
Halogen
No
Material colour according to resistance code
9
Number of markers per combination
1 Label reel = Device markers
Number of markers per packaging unit
  • Form of supply:
    Label reel
Number per roll
2000
Operating temperature range
-40...150 °C
Operating temperature range, max.
150 °C
Operating temperature range, min.
-40 °C
Printed characters
without
Printing method
Termotransferencia
UL 94 flammability rating
V-0
Version
Öntapadós
halogénmentes
Width
45 mm

Device markers

Halogen
No

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
