Egenskaber

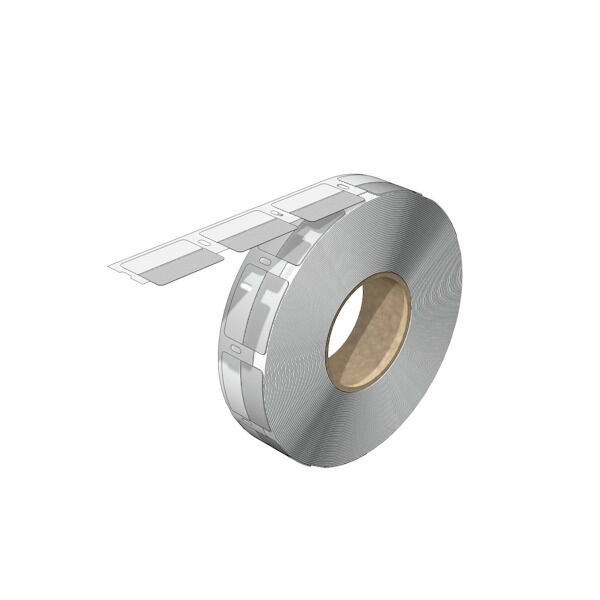

| Version | THM, Conductor and cable markers, 2 - 3.8 mm, 25 x 19.1 mm, white |
| Order No. | 2711870000 |
| Type | THM WO-Q 25/19.1 WS |
| GTIN (EAN) | 4050118750065 |
| Qty. | 1.000 Styk |
| Depth | 0,03 mm |
| Depth (inches) | 0,001 inch |
| Height | 25 mm |
| Height (inches) | 0,984 inch |
| Width | 19,1 mm |
| Width (inches) | 0,752 inch |
| Net weight | 0,094 g |
| Operating temperature range | -40...150 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Adhesive | Polyacrylate adhesive |
| Approval acc. to UL 969 | Yes |
| Colour | white |
| compatible printer |
[THM MMP](~/p/2430920000)
[THM MULTIMARK](~/p/2599430000) [THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | No |
| Material | Polyester film |
| Number of markers per combination | 1 Label reel = Conductor and cable markers |
| Number of markers per packaging unit |
|
| Number per roll | 1000 |
| Operating temperature range | -40...150 °C |
| Operating temperature range, max. | 150 °C |
| Operating temperature range, min. | -40 °C |
| Orientation of print | horizontal and vertical |
| Printed characters | without |
| Size of labelling field | 25 x 9 mm |
| Type of printing | neutral |
| UL 94 flammability rating | V-0 |
| Width | 19,1 mm |
| Conductor O.D. | 2 - 3.8 mm |
| Conductor O.D., max. | 3,8 mm |
| Conductor O.D., min. | 2 mm |
| Halogen | No |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
