Egenskaber

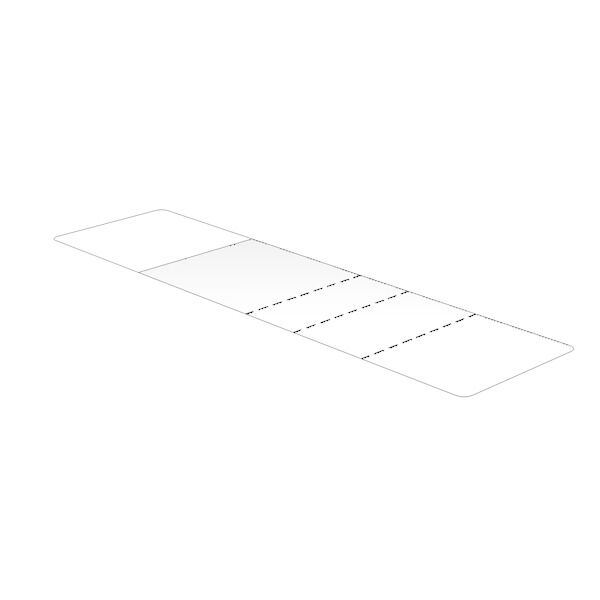

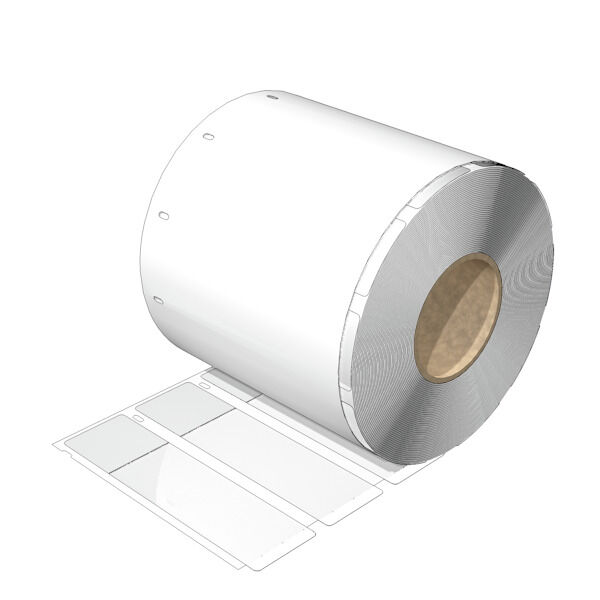

| Version | THM, Conductor and cable markers, 14 - 27 mm, 25.4 x 95.2 mm, white |
| Order No. | 2799230000 |
| Type | THM WO-QX VIN 25.4/95.2 WS IW |
| GTIN (EAN) | 4064675260998 |
| Qty. | 1.000 Styk |
| Depth | 0,08 mm |
| Depth (inches) | 0,003 inch |
| Height | 25,4 mm |
| Height (inches) | 1 inch |
| Width | 95,2 mm |
| Width (inches) | 3,748 inch |
| Net weight | 0,116 g |
| Operating temperature range | -40...150 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | white |
| Halogen | No |
| Material | PVC |
| Number of markers per combination | 1 Label reel = Conductor and cable markers |
| Number of markers per packaging unit |
|
| Operating temperature range | -40...150 °C |
| Operating temperature range, max. | 150 °C |
| Operating temperature range, min. | -40 °C |
| Printed characters | without |
| Type of printing | neutral |
| UL 94 flammability rating | V-0 |
| Width | 95,2 mm |
| Conductor O.D. | 14 - 27 mm |
| Conductor O.D., max. | 27 mm |
| Conductor O.D., min. | 14 mm |
| Halogen | No |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
