Egenskaber

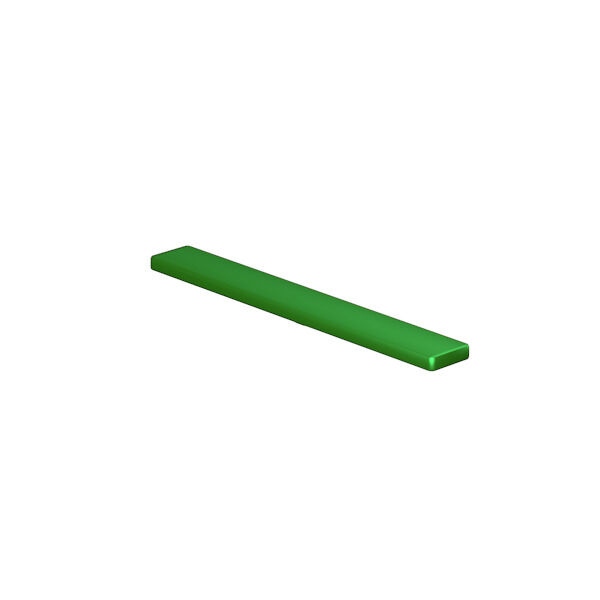

| Version | TM-I, Insert markers, 30 x 4 mm, green |
| Order No. | 1365610000 |
| Type | TM-I 30 MC NE GN |
| GTIN (EAN) | 4050118171907 |
| Qty. | 300 Styk |
| Alternative product | [1876320000](~/p/1876320000) |
| Depth | 2 mm |
| Depth (inches) | 0,079 inch |
| Height | 30 mm |
| Height (inches) | 1,181 inch |
| Width | 4 mm |
| Width (inches) | 0,157 inch |
| Net weight | 0,274 g |
| Operating temperature range | -40...100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Product Carbon Footprint |
|
| Colour | green |
| compatible printer | [PRINTJET CONNECT](~/p/2715590000) |
| Halogen | No |
| Material | Polyamide 66 |
| Material colour according to resistance code | 5 |

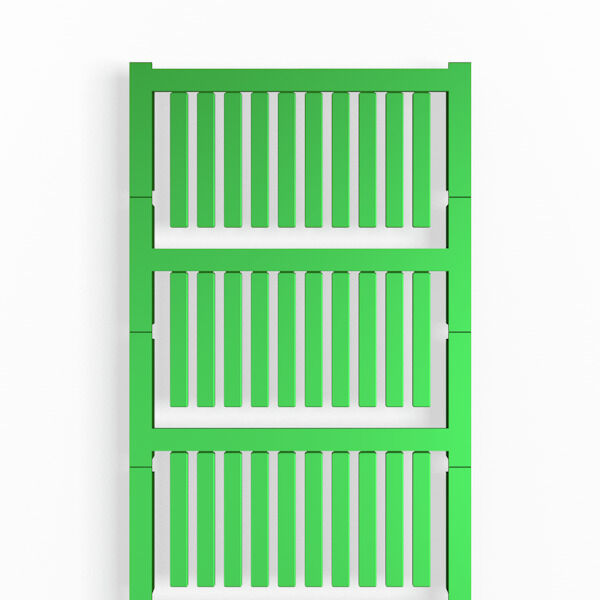

| Number of markers per combination | 1 MultiCard = Insert markers |
| Number of markers per packaging unit |
|
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| Printed characters | neutral |
| Recommended industries |
Transportation
Machinery |
| Type of printing | neutral |
| UL 94 flammability rating | V-2 |
| Width | 4 mm |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_61531) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1365610000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1365610000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:2902790000Pakningsenhed:200 Styk
, Socket x 5.3 mm, TPU, Colour: yellow, Transparent, Conductor O.D.: 1.3 - 3 mm
-
Produkt ID:2902820000Pakningsenhed:50 Styk
, Socket x 5.3 mm, TPU, Colour: yellow, Transparent, Conductor O.D.: 8 - 16 mm
-
Produkt ID:2902840000Pakningsenhed:30 Styk
, Socket x 5.3 mm, TPU, Colour: yellow, Transparent, Conductor O.D.: 24 - 35 mm
-
Produkt ID:2902800000Pakningsenhed:200 Styk
, Socket x 5.3 mm, TPU, Colour: yellow, Transparent, Conductor O.D.: 2.5 - 5 mm
-
Produkt ID:2902810000Pakningsenhed:100 Styk
, Socket x 5.3 mm, TPU, Colour: yellow, Transparent, Conductor O.D.: 4 - 10 mm
-
Produkt ID:2902830000Pakningsenhed:80 Styk
, Socket x 5.3 mm, TPU, Colour: yellow, Transparent, Conductor O.D.: 14 - 26 mm
-
Produkt ID:1874780000Pakningsenhed:200 Styk
TM, Socket x 9 mm, PVC, Colour: Transparent, Conductor O.D.: 6 - 10 mm
-
Produkt ID:1874850000Pakningsenhed:500 Styk
TM, Socket x 4 mm, PVC, Colour: Transparent, Conductor O.D.: 1.5 - 2.5 mm
-
Produkt ID:1874790000Pakningsenhed:200 Styk
TM, Socket x 14 mm, PVC, Colour: Transparent, Conductor O.D.: 10 - 14 mm
-
Produkt ID:1874800000Pakningsenhed:100 Styk
TM, Socket x 18 mm, PVC, Colour: Transparent, Conductor O.D.: 14 - 22 mm
-
Produkt ID:1874770000Pakningsenhed:200 Styk
TM, Socket x 6 mm, PVC, Colour: Transparent, Conductor O.D.: 4 - 6 mm
-
Produkt ID:1874760000Pakningsenhed:500 Styk
TM, Socket x 5 mm, PVC, Colour: Transparent, Conductor O.D.: 2 - 4 mm
