Egenskaber

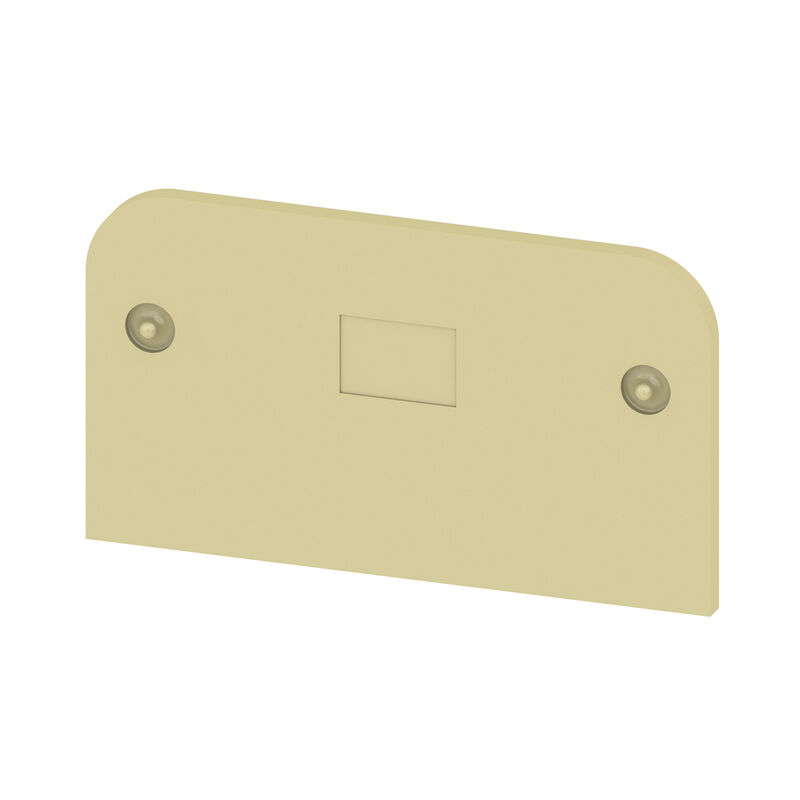

| Version | Partition plate (terminal), beige, Height: 75 mm, Width: 3 mm, V-2, PA 66 |
| Order No. | 0242920000 |
| Type | TW SAKB/C/T |
| GTIN (EAN) | 4008190069933 |
| Qty. | 20 Styk |
| Depth | 42,5 mm |
| Depth (inches) | 1,673 inch |
| Height | 75 mm |
| Height (inches) | 2,953 inch |
| Width | 3 mm |
| Width (inches) | 0,118 inch |
| Net weight | 11,36 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | PA 66 |
| Colour | beige |
| UL 94 flammability rating | V-2 |
| Version | Intermediate plate |
| Installation advice | Direct mounting |
| Snap-on | No |
| Installation advice | Direct mounting |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
