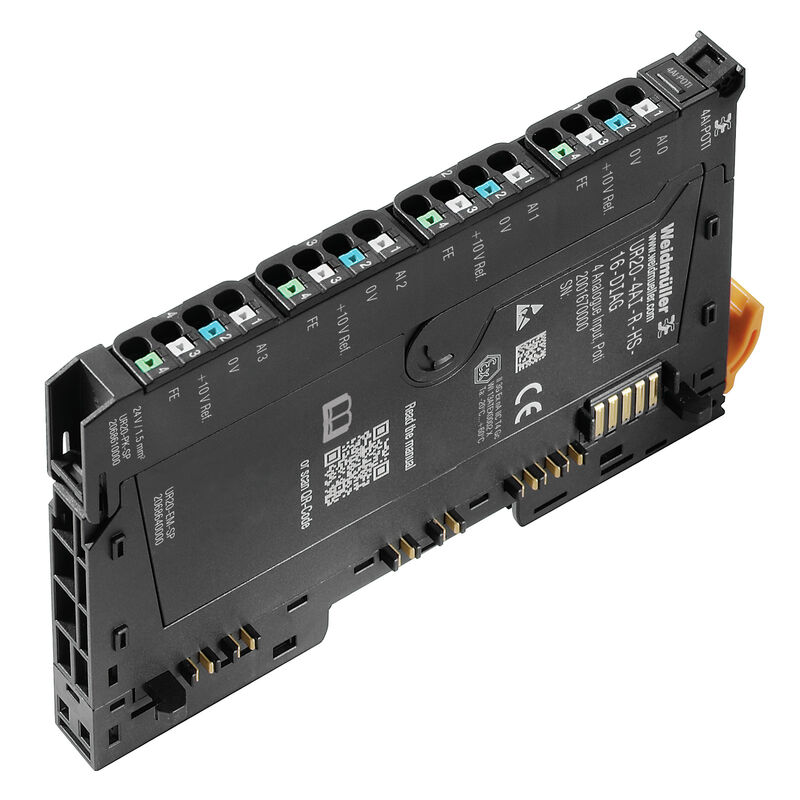

Product image
UR20-4AI-R-HS-16-DIAG
Block diagram
UR20-4AI-R-HS-16-DIAG

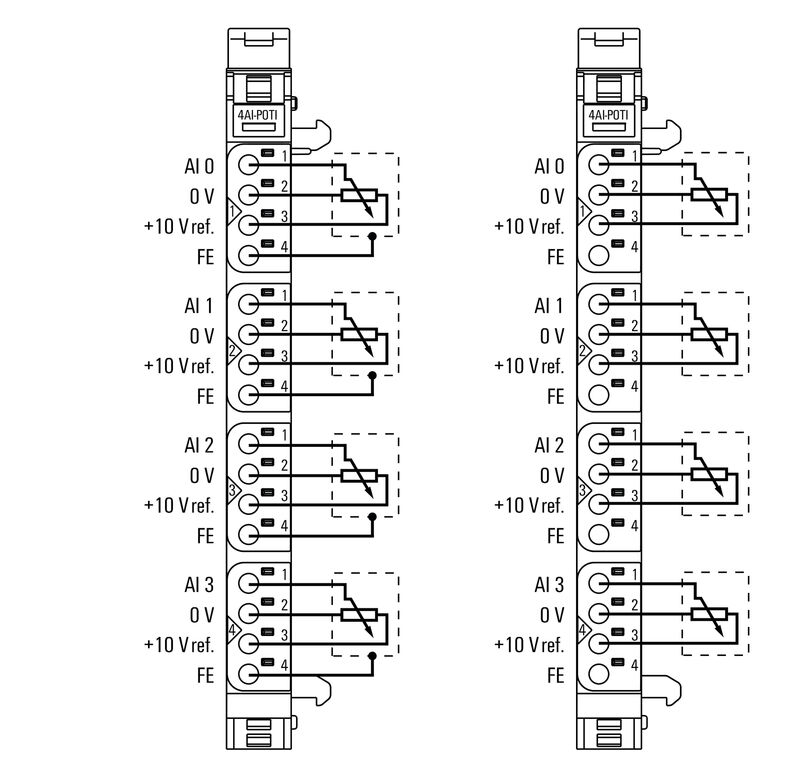

Connection diagram
UR20-4AI-R-HS-16-DIAG
Explanation of abbreviations
MAM_Cumulus:287298

UR20-4AI-R-HS-16-DIAG

Remote I/O module, IP20, 4-channel, Analog signals, Input, 16 Bit

Produkt ID 2001670000
Åbn i konfiguratoren
Download datablad Engineering Support Software Support Product Downloads
Tilbehør 12 Reservedele 2 Enkeltdele 2 Anvendte produkter 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance analogue inputs Connection data General data Power supply System data Classifications

Approvals

Dopuszczenia
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319212/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319215/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319245/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319247/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319249/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319255/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319217/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319220/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319224/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_322323/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197
Certificate no. (cULusEX)
E223527

General ordering data

Version
Remote I/O module, IP20, 4-channel, Analog signals, Input, 16 Bit
Order No.
2001670000
Típus
UR20-4AI-R-HS-16-DIAG
GTIN (EAN)
4050118383553
Qty.
1 Styk

Dimensions and weights

Profundidad
76 mm
Depth (inches)
2,992 inch
Posizione verticale
120 mm
Height (inches)
4,724 inch
Largeur
11,5 mm
Width (inches)
0,453 inch
Net weight
89 g

Temperatures

Temperatura magazynowania
-40 °C ... +85 °C
Drifttemperatur
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
82327f13-cd27-455a-ab5b-a62e1996dcf8
Product Carbon Footprint
  • Cradle to gate:
    8,705 kg CO2 eq.

analogue inputs

Accuracy
<± 0.25 % FSR at 25 °C
Conversion time
typ. 500 μs (typ. 625 μs at 50 Hz / typ. 521 μs at 60 Hz frequency suppression)
Current of supply voltage output
max. 0.05 A per channel, total 0.2 A
Individual channel diagnosis
Yes
Input resistance
typ. 500 kΩ against the wiper connection
Input value
Ratiometric potentiometer evaluation with own power supply
Internal resistance U
100 kΩ
Measurement range
300 Ω …50 kΩ
Module diagnosis
Yes
Number analogue inputs
4
Resolution
16 Bit
Sensor supply
Yes
Sensor-Anschluss
3-wire
3-wire + FE
Short-circuit-proof
Yes
Supply voltage for potentiometer
10 V DC ± 10%
Temperature coefficient
≤ 50 ppm/K
Wire-break recognition
Yes

Connection data

Type of connection
PUSH IN
Wire connection cross section, finely stranded, max.
1,5 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire cross-section, finely stranded, max. (AWG)
AWG 16
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, solid, max.
1,5 mm²
Wire cross-section, solid, max. (AWG)
AWG 16
Wire cross-section, solid, min.
0,14 mm²
Wire cross-section, solid, min. (AWG)
AWG 26

General data

Air humidity (operation)
10% to 95%, non-condensing as per DIN EN 61131-2
Air humidity (storage)
10% to 95%, non-condensing as per DIN EN 61131-2
Air humidity (transport)
10% to 95%, non-condensing as per DIN EN 61131-2
Air pressure (operation)
≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
Air pressure (storage)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Air pressure (transport)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Mounting rail
TS 35
Pollution severity
2
Shock
15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27
Surge voltage category
II
Test voltage
500 V
UL 94 flammability rating
V-0
Vibration resistance
5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6
8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6

Power supply

Current consumption from IIN (the respective power segment)
26 mA
Current consumption from Isys, typ.
8 mA
Supply voltage
24 V DC +20 %/ -15 %
via the system bus

System data

Diagnostic data
1 Bit
Field bus protocol
PROFINET IRT
PROFINET RT
CC-Link IE TSN
PROFIBUS DP-V1
EtherCAT
Modbus/TCP
EtherNet/IP
CANopen
DeviceNet
POWERLINK
CC-Link
Galvanic isolation
500 V DC between the current paths
Interface
u-remote system bus
Module type
Analogue input module
Process data
8 Byte
Transmission speed of system bus, max.
48 Mbit

Classifications

ETIM 8.0
EC001596
ETIM 9.0
EC001596
ETIM 10.0
EC001596
ECLASS 14.0
27-24-26-01
ECLASS 15.0
27-24-26-01
