Egenskaber
| Order No. | 2857090000 |
| Type | VPCB PV II R 600 |
| GTIN (EAN) | 4064675537458 |
| Qty. | 20 Styk |

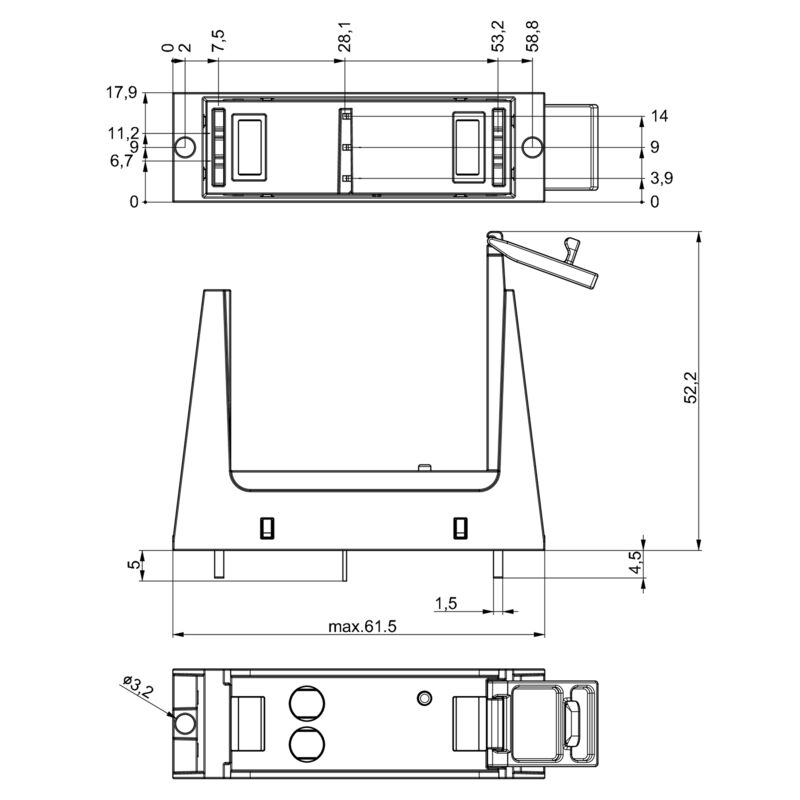

| Depth | 52,2 mm |
| Depth (inches) | 2,055 inch |
| Height | 61,5 mm |
| Height (inches) | 2,421 inch |
| Width | 17,9 mm |
| Width (inches) | 0,705 inch |
| Net weight | 20 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...85 °C |
| Humidity | 5 - 95% rel. humidity |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | grey |
| Design | miscellaneous |
| Protection degree | IP20 |
| UL 94 flammability rating | V-0 |
| Version | Miscellaneous |
| Pollution severity | 2 |
| Surge voltage category | III |
| Conditions and requirements | EN 50539-11 |
| Discharge current In (8/20 µs) | 20 kA |
| Operating height in the grounded PV system | ≤ 4000 m |
| Operating height in ungrounded PV system | ≤ 4000 m |
| PV system voltage, max. Ucpv | 750 V |
| Requirements class | Type I/II |
| Short-circuit curent ISCPV | 11 kA |
| Discharge current Imax (8/20µs) wire-PE | 40 kA |
| Number of poles | 1 |

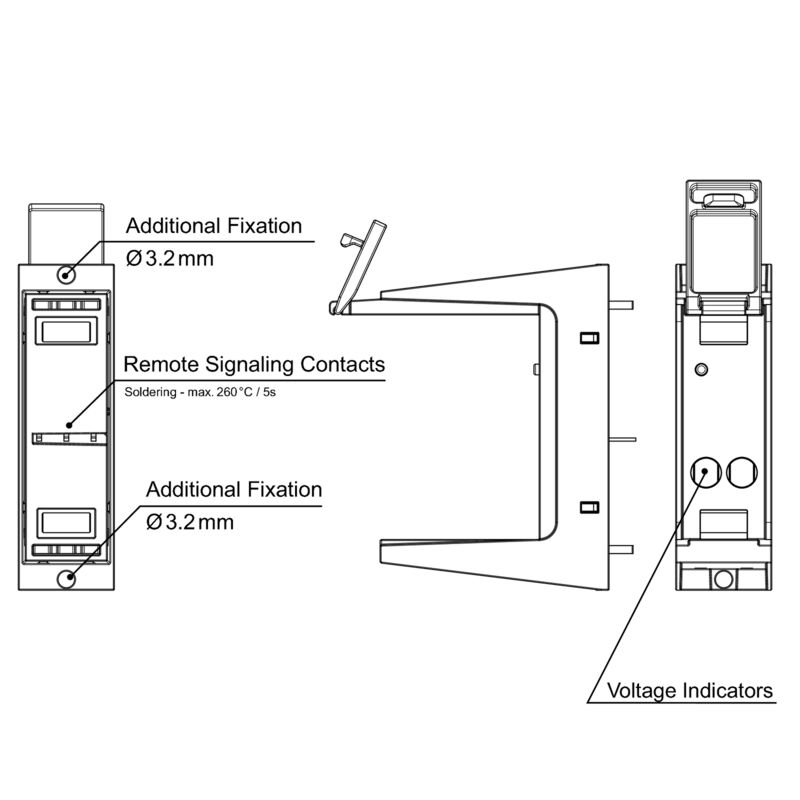

| Signalling contact |
250 V / 0,5 A
48 V CC / 0.5 A |
| Voltage type | DC |
| Type of connection |
Solder connection
when screwed in |
| Voltage type | DC |
| Number of poles | 1 |
| Protection degree | IP20 |
| Colour | grey |
| Time interval | 5 years |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205693) |
| User Documentation | [Assembly instructions VPCB PV](https://mdcop.weidmueller.com/mediadelivery/asset/900_106941) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000941 |
| ETIM 7.0 | EC000941 |
| ETIM 8.0 | EC000941 |
| ETIM 9.0 | EC000941 |
| ECLASS 9.0 | 27-13-08-05 |
| ECLASS 9.1 | 27-13-08-05 |
| ECLASS 10.0 | 27-13-08-05 |
| ECLASS 11.0 | 27-13-08-05 |
| ECLASS 12.0 | 27-17-90-90 |
| ECLASS 13.0 | 27-17-90-90 |
| ECLASS 14.0 | 27-17-90-90 |
| ROHS | Conform |
