VT SF 6/21 SDR V0

VT SF 6/21 SDR V0

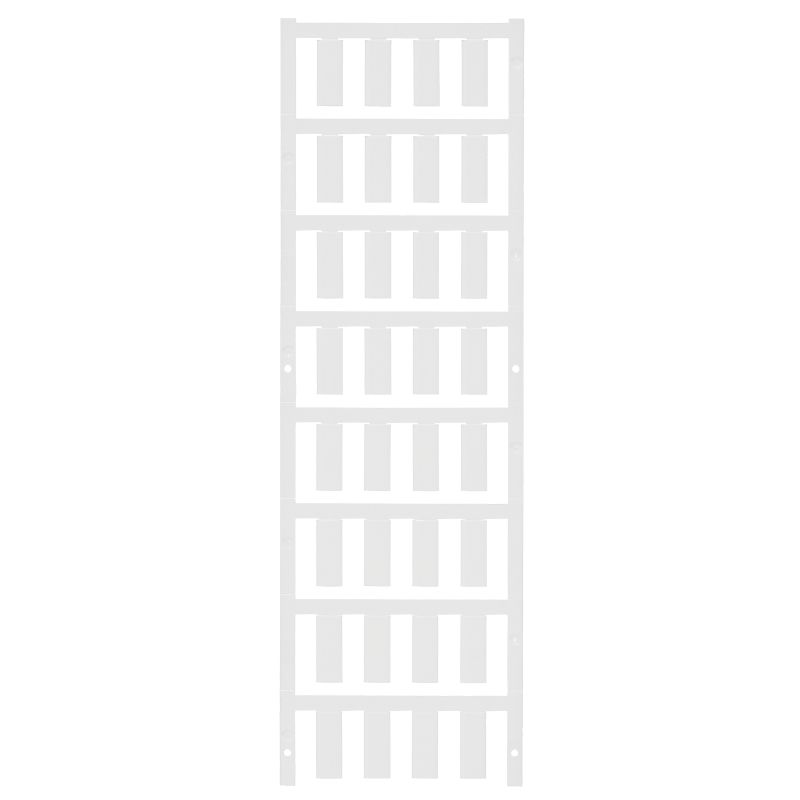

SlimFix, Señalizadores para cables y conductores, 5.8 - 7.8 mm, 21 x 8.4 mm, bajo demanda

Ürün No. 1789290000
Veri sayfasını indir Ürün İndirmleri Mühendislik desteği
İlgili ürünler 9
Approvals Datos generales para pedido Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

Datos generales para pedido

Version
SlimFix, Señalizadores para cables y conductores, 5.8 - 7.8 mm, 21 x 8.4 mm, bajo demanda
Order No.
1789290000
Type
VT SF 6/21 SDR V0
GTIN (EAN)
4032248209088
Qty.
32 adet

Dimensions and weights

Depth
8,5 mm
Profondeur (pouces)
0,335 inch
Height
21 mm
Height (inches)
0,827 inch
Width
8,4 mm
Width (inches)
0,331 inch
Net weight
0,719 g

Temperatures

Operating temperature range
-50...120 °C

Environmental Product Compliance

RoHS Compliance Status
Conforme sin exención
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.009 kg CO2 eq.

General data

Advice label
Colour based on customer requirements (Please send M-Print PRO file)
Basic material
Polyamide 66
Colour
To customer specification
Colour of printing
black
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Halogen
No
Number of markers per combination
1 MultiCard = Conductor and cable markers
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Operating temperature range
-50...120 °C
Operating temperature range, max.
120 °C
Operating temperature range, min.
-50 °C
Orientation of print
horizontal
Printed characters
Requires M-Print PRO File
Printing method
MC Laser
Size of labelling field
21 x 8.4 mm
Type of printing
To customer specification
UL 94 flammability rating
V-0
Width
8,4 mm

Conductor and cable markers

Conductor cross-section, max.
16 mm²
Conductor cross-section, min.
10 mm²
Conductor O.D.
5.8 - 7.8 mm
Conductor O.D., max.
7,8 mm
Conductor O.D., min.
5,8 mm
Cross-section for connected wire
10 - 16 mm²
Halogen
No

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
