Egenskaber

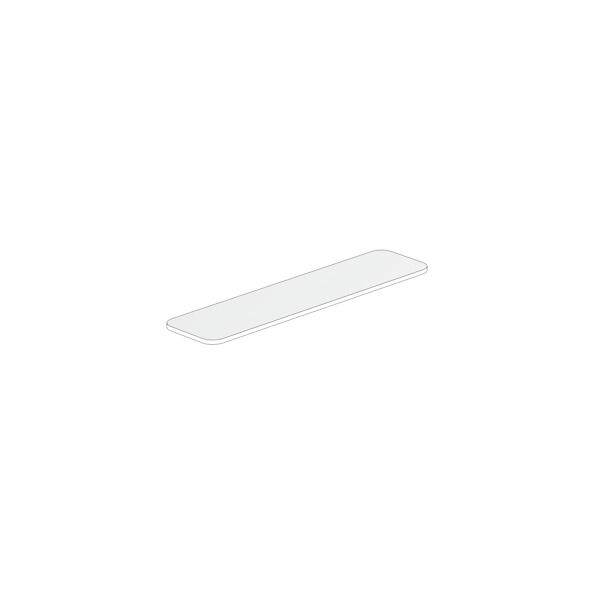

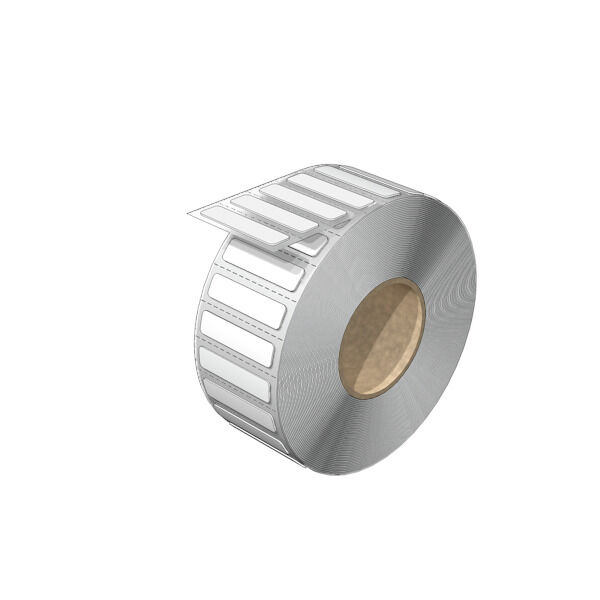

| Version | Terminal marker, 8 x 33.3 mm, Weidmueller, white |
| Order No. | 2969380000 |
| Type | WAD-FO 8 MM WS |
| GTIN (EAN) | 4099986783966 |
| Qty. | 250 Styk |
| Depth | 0,55 mm |
| Depth (inches) | 0,022 inch |
| Height | 8 mm |
| Height (inches) | 0,315 inch |
| Width | 33,3 mm |
| Width (inches) | 1,311 inch |
| Net weight | 3 g |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Adhesive | PE-foam with acrylic adhesive |
| Application/manufacturer | Weidmueller |
| Colour | white |
| Number per roll | 250 |
| Operating temperature range, max. | -30 °C |
| Operating temperature range, min. | 80 °C |
| Printed characters | neutral |
| UL 94 flammability rating | V-0 |
| Version | Self-adhesive |
| Width | 33,3 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_311407) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000761 |
| ETIM 7.0 | EC000761 |
| ETIM 8.0 | EC000761 |
| ETIM 9.0 | EC000761 |
| ECLASS 9.0 | 27-14-11-37 |
| ECLASS 9.1 | 27-14-11-37 |
| ECLASS 10.0 | 27-14-11-37 |
| ECLASS 11.0 | 27-28-11-01 |
| ECLASS 12.0 | 27-28-11-01 |
| ECLASS 13.0 | 27-28-11-01 |
| ECLASS 14.0 | 27-28-11-01 |
| ROHS | Conform |
