Egenskaber

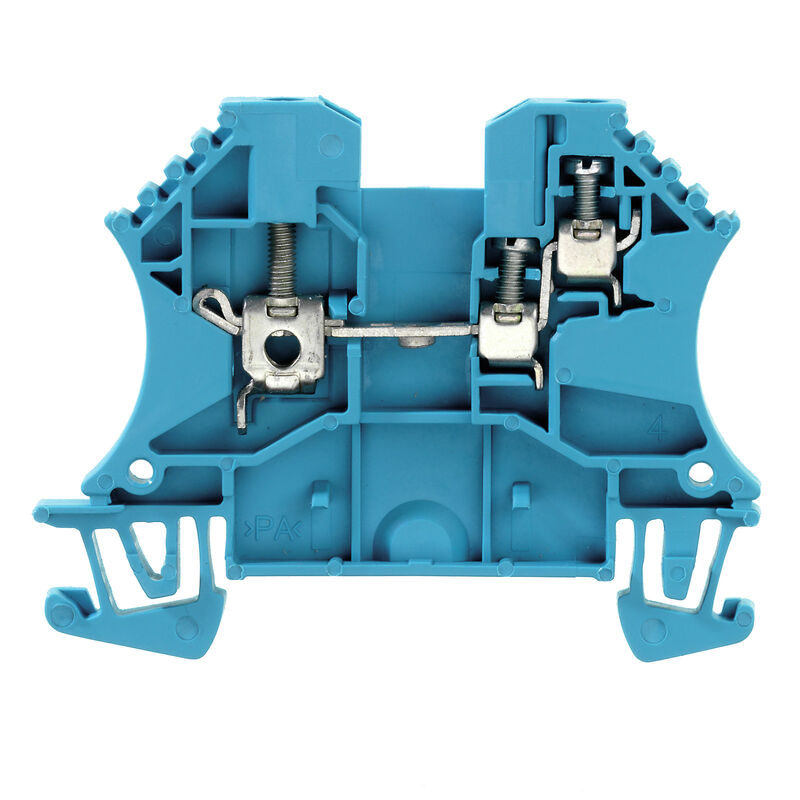

| Version | Feed-through terminal block, Screw connection, 2.5 mm², 800 V, 24 A, Number of connections: 1 |
| Order No. | 1024780000 |
| Type | WDU 2.5/1.5/ZR BL |
| GTIN (EAN) | 4008190173586 |
| Qty. | 100 Styk |
| Depth | 46,5 mm |
| Depth (inches) | 1,831 inch |
| Height | 60 mm |
| Height (inches) | 2,362 inch |
| Width | 5,1 mm |
| Width (inches) | 0,201 inch |
| Net weight | 7,5 g |
| Storage temperature | -25 °C...55 °C |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Material | Wemid |
| Colour | blue |
| UL 94 flammability rating | V-0 |
| Certificate No. (IECEX) | IECEXULD14.0005U |
| Max. voltage (IECEX) | 550 V |
| Current (IECEX) | 20 A |
| Wire cross section max. (IECEX) | 2.5 mm² |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7 | Ex eb II C Gb |
| Ex 2014/34/EU label | II 2 G D |
| Version |
Screw connection
Additional connection for screwable cross-connection One end without connector |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 1 |

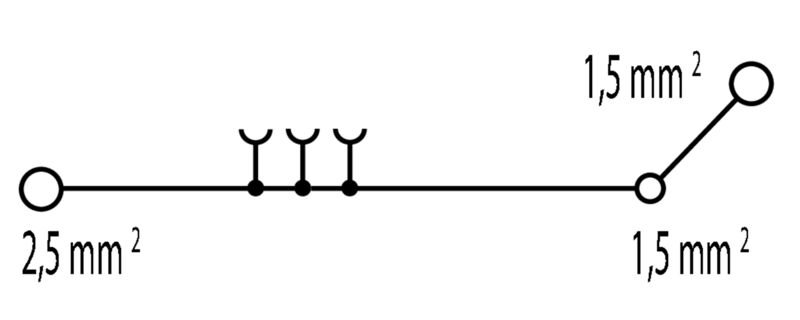

| Number of clamping points per level | 3 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | Yes |
| PE function | No |
| PEN function | No |
| Cross-section for connected wire, solid, two clampable wires, max. | 2,5 mm² |
| Cross-section for connected wire, solid, two clampable wires, min. | 0,5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max. | 1,5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min. | 0,5 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 0,5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 1,5 mm² |
| Explosion-tested version | Yes |
| Number of similar terminals | 1 |
| Open sides | right |
| Type of mounting | Snap-on |
| Blade size, additional connection | SD 0.6 x 3.5 |
| Clamping range, further connection, max. | 2,5 mm² |
| Clamping range, further connection, min. | 0,13 mm² |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 1,5 mm² |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, min. | 0,5 mm² |
| Conductor cross-section, flexible, further connection, min. | 0,5 mm² |
| Connection direction | on side |
| Connection type, additional connection | Screw connection |
| Cross-section for connected wire, AWG, additional connection, max. | AWG 12 |
| Cross-section for connected wire, AWG, additional connection, min. | AWG 26 |
| Cross-section for connected wire, flexible, further connection, max. | 1,5 mm² |
| Cross-section for connected wire, multi-core, further connection, max. | 2,5 mm² |
| Cross-section for connected wire, multi-core, further connection, min. | 0,5 mm² |
| Cross-section for connected wire, solid-core, further connection, max. | 2,5 mm² |
| Cross-section for connected wire, solid-core, further connection, min. | 0,5 mm² |
| Number of connections, additional connection | 2 |
| Rated cross-section, further connection | 1,5 mm² |
| Rated current, additional connection | 17,5 A |
| Stripping length , additional connection | 7 mm |
| Terminal screw, additional connection | M 2.5 |
| Tightening torque, additional connection, max. | 0,6 Nm |
| Tightening torque, additional connection, min. | 0,4 Nm |
| Blade size | 0.6 x 3.5 mm |
| Clampable conductor |
|
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0,05 mm² |
| Clamping screw | M 2.5 |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 1,5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 |
A3
A1 |
| Number of connections | 1 |
| Stripping length | 10 mm |
| Tightening torque, max. | 0,6 Nm |
| Tightening torque, min. | 0,4 Nm |
| Torque level with DMS electric screwdriver | 1 |
| Twin wire-end ferrules, max. | 1,5 mm² |
| Twin wire-end ferrules, min. | 0,5 mm² |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Certificate No. (CSA) | 12400-240 |
| Current size C (CSA) | 20 A |
| Voltage size C (CSA) | 300 V |
| Wire cross section max. (CSA) | 14 AWG |
| Wire cross section min. (CSA) | 26 AWG |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 30 |
| Rated cross-section | 2,5 mm² |
| Rated voltage | 800 V |
| Rated DC voltage | 800 V |
| Rated current | 24 A |
| Current at maximum wires | 32 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 1,33 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss in accordance with IEC 60947-7-x | 0,77 W |
| Pollution severity | 3 |
| Surge voltage category | III |
| Certificate No. (UR) | E60693 |
| Conductor size Factory wiring max. (UR) | 12 AWG |
| Conductor size Factory wiring min. (UR) | 30 AWG |
| Conductor size Field wiring max. (UR) | 12 AWG |
| Conductor size Field wiring min. (UR) | 30 AWG |
| Current size B (UR) | 20 A |
| Current size C (UR) | 20 A |
| Voltage size B (UR) | 300 V |
| Voltage size C (UR) | 300 V |
| Approval/Certificate/Document of Conformity |
[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35535)
[IECEx Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_39462) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) [UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253960) [DNVGL certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152134) [NEMKO certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_152186) [Lloyds Register Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_153734) [POLSKIREJ certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_156118) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_253962) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37606) [ATEX Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_39463) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59655) |
| Engineering Data | [Zuken E3.S](LINK/CAE_EN.html) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1024780000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1024780000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1024780000&norm=0) |
| User Documentation |
[NTI WDU/WPE 2.5 1.5 ZR](https://mdcop.weidmueller.com/mediadelivery/asset/900_35524)
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-01 |
| Approvals |                |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E60693 |
| Certificate No. (cURusEX) | E184763 |
