Egenskaber

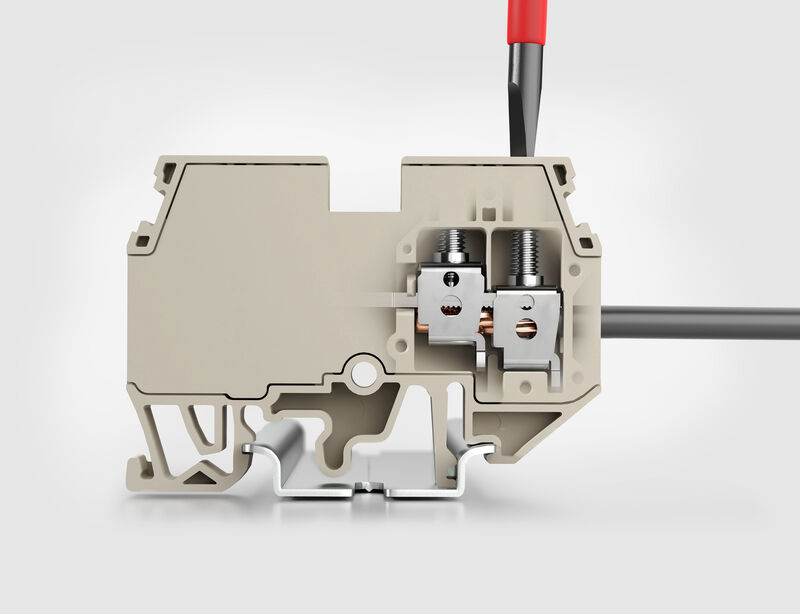

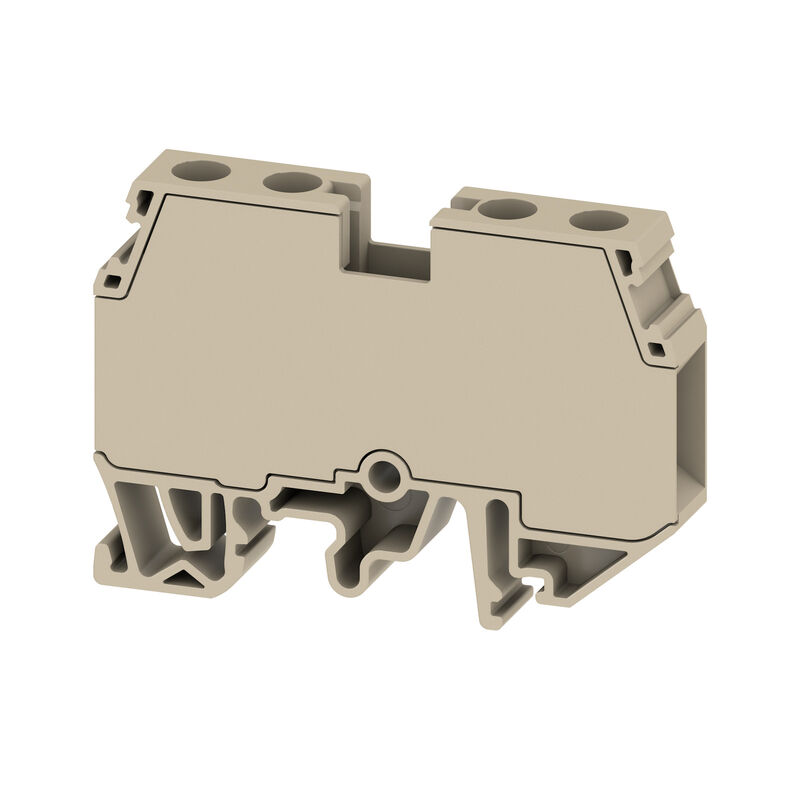

| Version | Feed-through terminal block, Screw connection, dark beige, 16 mm², 76 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, TS 32, V-0, Wemid, 110 °C |
| Order No. | 2868370000 |
| Type | WDUB 16 |
| GTIN (EAN) | 4064675619413 |
| Qty. | 20 Styk |
| Depth | 47 mm |
| Depth (inches) | 1,85 inch |
| Height | 65 mm |
| Height (inches) | 2,559 inch |
| Width | 9,9 mm |
| Width (inches) | 0,39 inch |
| Net weight | 40 g |
| Continuous operating temp., min. | -40 °C |
| Continuous operating temp., max. | 110 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version |
Screw connection
for screwable cross-connection One end without connector |
| End cover plate required | No |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | No |
| Rail |
TS 35
TS 32 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Explosion-tested version | No |
| Open sides | closed |
| Snap-on | Yes |
| Type of fixing | Snap-on |
| Type of mounting |
TS 32
TS 35 |
| Connection type, additional connection | Screw connection |
| Blade size | 0.8 x 4.0 mm |
| Clamping range, max. | 16 mm² |
| Clamping range, min. | 0,5 mm² |
| Clamping screw | M 4 |
| Connection cross-section, stranded, max. | 16 mm² |
| Connection cross-section, stranded, min. | 0,5 mm² |
| Connection direction | on side |
| Gauge to IEC 60947-1 | B6 |
| Number of connections | 2 |
| Stripping length | 20 mm |
| Tightening torque, max. | 1,9 Nm |
| Tightening torque, min. | 1,2 Nm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 6 |
| Wire connection cross section AWG, min. | AWG 24 |
| Wire connection cross section, finely stranded, max. | 10 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Certificate No. (CSA) | 200039-1057876 |
| Current size B (CSA) | 65 A |
| Current size C (CSA) | 65 A |
| Current size D (CSA) | 5 A |
| Voltage size B (CSA) | 600 V |
| Voltage size C (CSA) | 600 V |
| Voltage size D (CSA) | 600 V |
| Wire cross section max. (CSA) | 6 AWG |
| Wire cross section min. (CSA) | 18 AWG |
| Rail |
TS 35
TS 32 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 6 |
| Wire connection cross section AWG, min. | AWG 24 |
| Rated cross-section | 16 mm² |
| Rated voltage | 1.000 V |
| Rated DC voltage | 1.000 V |
| Rated current | 76 A |
| Current at maximum wires | 76 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0,42 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Pollution severity | 3 |
| Surge voltage category | III |
| Certificate No. (cURus) | E60693 |
| Current size B (cURus) | 65 A |
| Current size C (cURus) | 65 A |
| Current size D (cURus) | 5 A |
| Voltage size B (cURus) | 600 V |
| Voltage size C (cURus) | 600 V |
| Voltage size D (cURus) | 600 V |
| Wire cross section max. (cURus) | 6 AWG |
| Wire cross section min. (cURus) | 18 AWG |
| Approval/Certificate/Document of Conformity |
[Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
[CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_314047) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_294619) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2868370000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-01 |
| ECLASS 14.0 | 27-25-01-01 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
