Egenskaber
| Version | Cross-connector (terminal), when screwed in, Silver grey, 232 A, Number of poles: 2, Pitch in mm (P): 27.00, Insulated: No, Width: 10 mm |
| Order No. | 1063500000 |

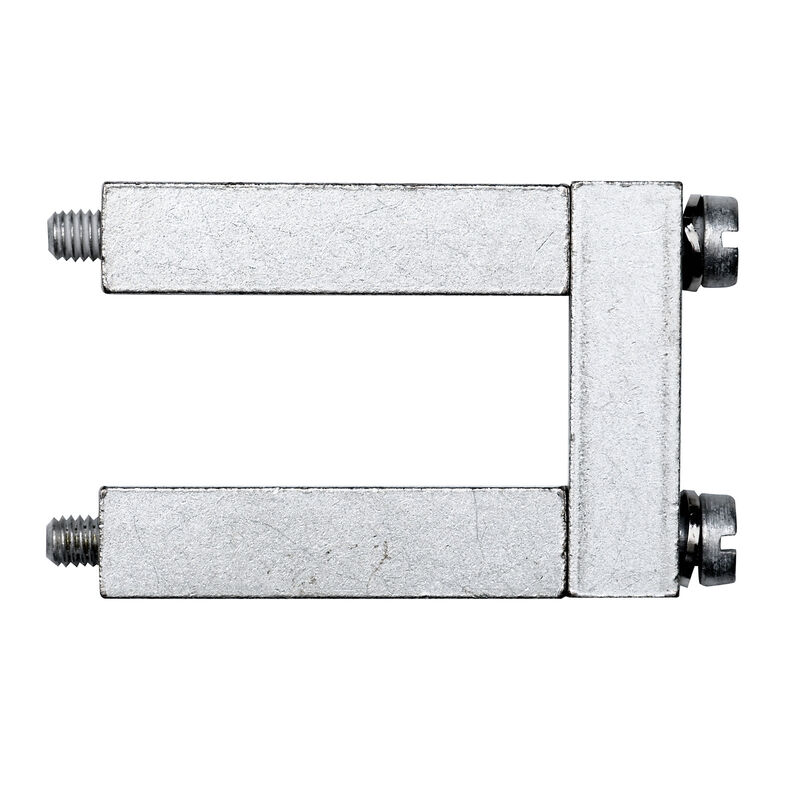

| Type | WQV 70/95/2 |
| GTIN (EAN) | 4008190028329 |
| Qty. | 5 Styk |
| Depth | 61,6 mm |
| Depth (inches) | 2,425 inch |
| Height | 37 mm |
| Height (inches) | 1,457 inch |
| Width | 10 mm |
| Width (inches) | 0,394 inch |
| Net weight | 101,6 g |
| Storage temperature | -25 °C...55 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | tinned copper |
| Colour | Silver grey |
| Version | For the terminals |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Tightening torque, max. | 3 Nm |
| Number of cross-connected terminals | 2 |
| Rated current, 2-pole | 232 A |
| Rated current, multi-pole | 192 A |
| Type | Cross-connector |
| Pitch in mm (P) | 27 mm |
| Installation advice | Direct mounting |
| Number of poles | 2 |
| Rated current | 232 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_236565) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1063500000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1063500000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1063500000&norm=0) |
| User Documentation |
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
[Instruction](https://mdcop.weidmueller.com/mediadelivery/asset/900_97219) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ECLASS 14.0 | 27-25-03-03 |
| ROHS | Conform |
Tilbehør
ToolsCuttingMiscellaneousCutting and notching tools for cross-connections
Er tilbehør til
-
Produkt ID:1024680000Pakningsenhed:10 Styk
Feed-through terminal block, Screw connection, blue, 95 mm², 232 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
-
Produkt ID:1024600000Pakningsenhed:10 Styk
Feed-through terminal block, Screw connection, dark beige, 95 mm², 232 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
-
Produkt ID:1024650000Pakningsenhed:10 Styk
Feed-through terminal block, Screw connection, Light green, 95 mm², 232 A, 1000 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid, 130 °C
Terminal BlocksApplication rangePower feed-inClamping yoke technologyFeed-through terminal blocks70/95 mm²
