Egenskaber

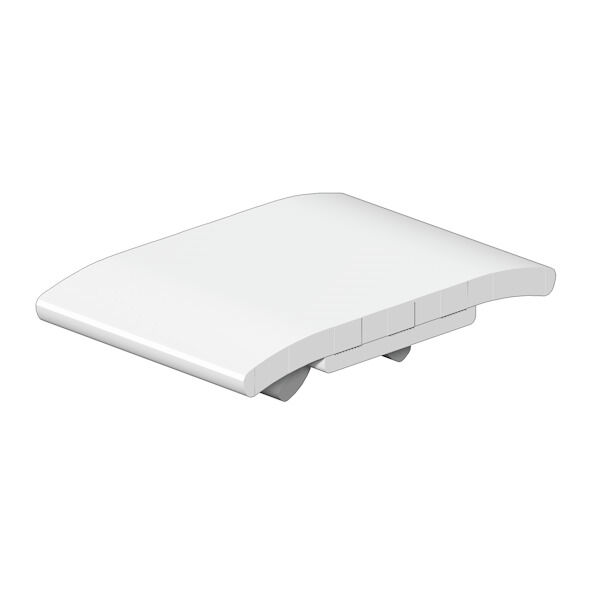

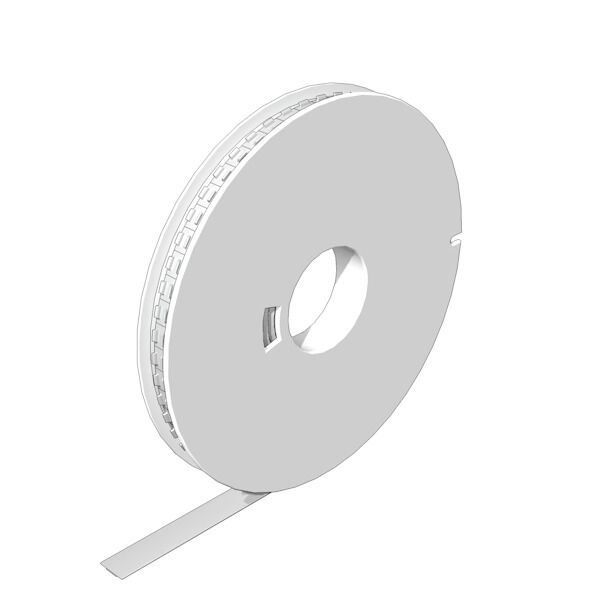

| Version | WS, Terminal marker, 12 x 8.1 mm, Weidmueller, white |
| Order No. | 2448920000 |
| Type | WS-A 12/8 MM WS |
| GTIN (EAN) | 4050118462975 |
| Qty. | 500 Styk |
| Height | 12 mm |
| Height (inches) | 0,472 inch |
| Width | 8,1 mm |
| Width (inches) | 0,319 inch |
| Net weight | 0,17 g |
| Operating temperature range | -50...90 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Application/manufacturer | Weidmueller |
| Colour | white |
| compatible printer |
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | No |
| Material |
PC-ABS
TPU |
| Operating temperature range | -50...90 °C |
| Operating temperature range, max. | 90 °C |
| Operating temperature range, min. | -50 °C |
| Printed characters | neutral |
| UL 94 flammability rating | V-2 |
| Version | halogen-free |
| Width | 8,1 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_54720) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2448920000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2448920000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000761 |
| ETIM 7.0 | EC000761 |
| ETIM 8.0 | EC000761 |
| ETIM 9.0 | EC000761 |
| ECLASS 9.0 | 27-14-11-37 |
| ECLASS 9.1 | 27-14-11-37 |
| ECLASS 10.0 | 27-14-11-37 |
| ECLASS 11.0 | 27-28-11-01 |
| ECLASS 12.0 | 27-28-11-01 |
| ECLASS 13.0 | 27-28-11-01 |
| ECLASS 14.0 | 27-28-11-01 |
| ROHS | Conform |
