ZP 4/1AN ZA GN
Изображение изделия

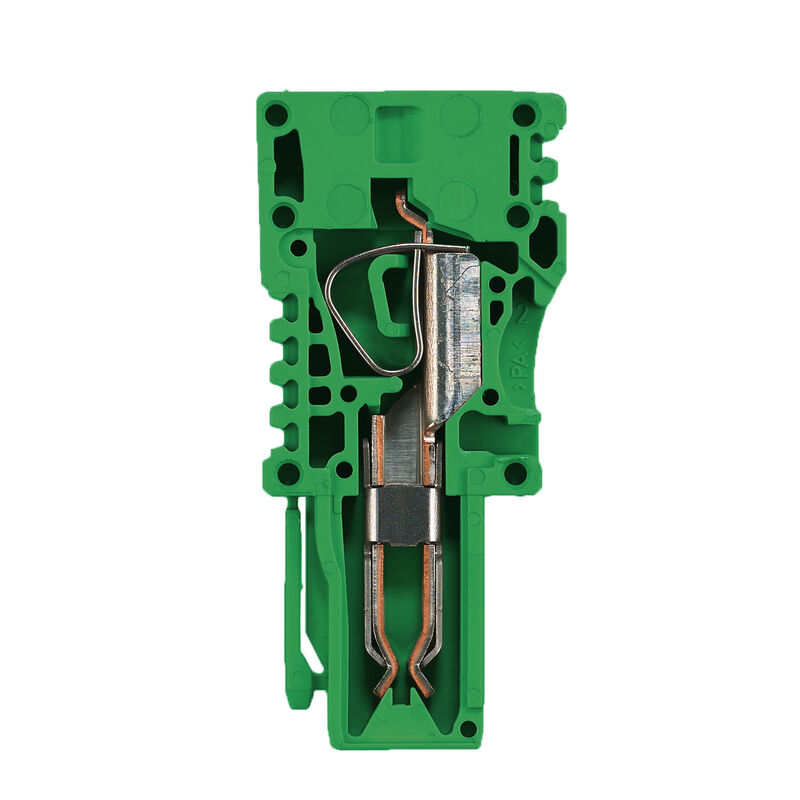

ZP 4/1AN ZA GN

Z-series, Plug-in connector, Direct mounting

Ürün No. 1051950000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 9 İlgili ürünler 317
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data 클램프용 컨덕터(정격 결선) Dati dimensionamento secondo CSA Allmänt Rating data Dati dimensionamento secondo UL Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
N° certificato (cURus)
E60693

General ordering data

Version
Z-series, Plug-in connector, Direct mounting
Order No.
1051950000
Type
ZP 4/1AN ZA GN
GTIN (EAN)
4032248804931
CPZ
50 adet

Dimensions and weights

Depth
47,5 mm
Depth (inches)
1,87 inch
Height
22,5 mm
Height (inches)
0,886 inch
Width
6,5 mm
Width (inches)
0,256 inch
Peso netto
5,861 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Matériau de base
Wemid
Colori
green
Classe d'inflammabilité selon UL 94
V-0

System specifications

Version
Plug
pluggable
With assembly peg
Tension-clamp connection
Flasque de fermeture nécessaire
No
Numero di potenziali
1
Number of levels
1
Number of clamping points per level
1
Etages internes pontés
No
Collegamento PE
No

Additional technical data

Istruzioni di montaggio
Direct mounting
Lati aperti
closed
Tipo di montaggio
Plugged

클램프용 컨덕터(정격 결선)

Clamping range, max.
6 mm²
Clamping range, min.
0,13 mm²
Connection cross-section, stranded, min.
0,13 mm²
Connection direction
u góry
Number of connections
1
Type of connection
Tension-clamp connection
Wire connection cross section AWG, max.
AWG 10
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, min.
0,13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,13 mm²
Wire connection cross-section, solid core, max.
6 mm²
Wire connection cross-section, solid core, min.
0,13 mm²

Dati dimensionamento secondo CSA

Certificate No. (CSA)
200039-1720292
Current size C (CSA)
28 A
Voltage size C (CSA)
600 V
Wire cross section max. (CSA)
10 AWG
Wire cross section min. (CSA)
26 AWG

Allmänt

Installation advice
Direct mounting
Number of poles
1
Standards
In accordance with IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 10
Wire connection cross section AWG, min.
AWG 26

Rating data

Section nominale
4 mm²
Tension nominale
800 V
Tensione DC nominale
800 V
Courant nominal
32 A
Norme
In accordance with IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1 mΩ
Potenza dissipata secondo IEC 60947-7-x
1,02 W

Dati dimensionamento secondo UL

Certificat Nº (cURus)
E60693
Courant Gr C (cURus)
28 A
Taille du conducteur Câblage d'installation max. (cURus)
10 AWG
Taille du conducteur Câblage d'installation min. (cURus)
26 AWG
Taille du conducteur Câblage d'usine max. (cURus)
10 AWG
Taille du conducteur Câblage d'usine min. (cURus)
26 AWG
Tension Gr C (cURus)
600 V

Product images

Classifications

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
