Egenskaber
| Version | Cross-connector (terminal), Plugged, orange, 192 A, Number of poles: 2, Pitch in mm (P): 25.00, Insulated: Yes, Width: 48 mm |
| Order No. | 2694250000 |

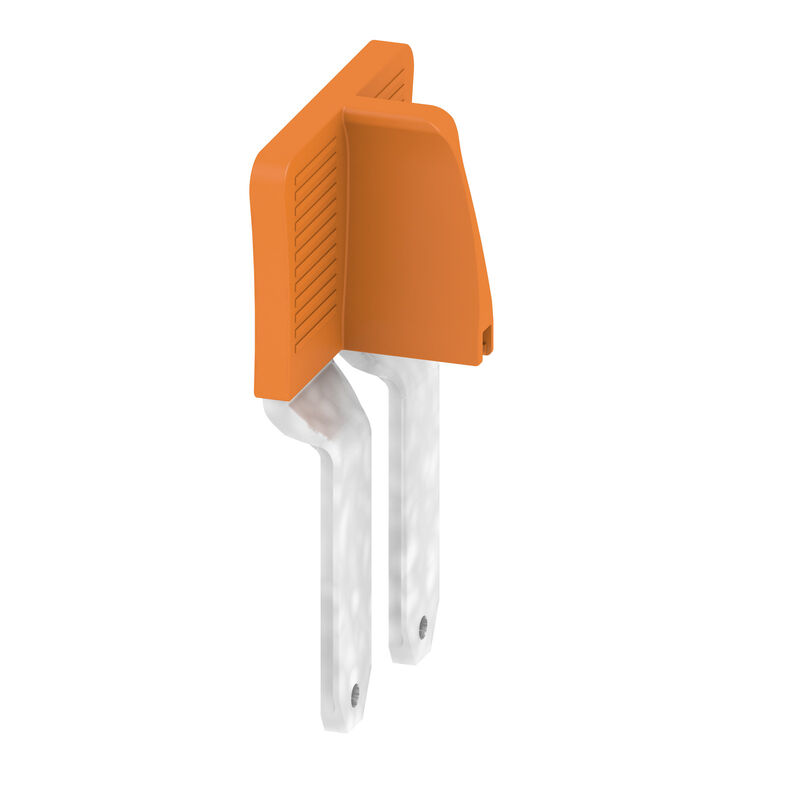

| Type | ZQV 95/120N/2 |
| GTIN (EAN) | 4064675266563 |
| Qty. | 10 Styk |
| Depth | 23 mm |
| Depth (inches) | 0,906 inch |
| Height | 77 mm |
| Height (inches) | 3,031 inch |
| Width | 48 mm |
| Width (inches) | 1,89 inch |
| Net weight | 64,585 g |
| Storage temperature | -25 °C...55 °C |
| Operating temperature | -60 °C...130 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | orange |
| UL 94 flammability rating | V-0 |
| Version | Cross-connector |
| Explosion-tested version | No |
| Type of fixing | Plugged |
| Type of mounting | Plugged |
| Pitch in mm (P) | 25 mm |
| Number of poles | 2 |
| Rated current | 192 A |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_244231) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2694250000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2694250000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2694250000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ECLASS 14.0 | 27-25-03-03 |
| ROHS | Conform |
Er tilbehør til
-
Produkt ID:2694150000Pakningsenhed:5 Styk
Feed-through terminal, PUSH IN, 95 mm², 1000 V, 232 A, dark beige
-
Produkt ID:2694120000Pakningsenhed:1 Styk
Feed-through terminal, PUSH IN, 95 mm², 1000 V, 232 A, dark beige
-
Produkt ID:2694230000Pakningsenhed:1 Styk
Feed-through terminal, PUSH IN, 95 mm², 1000 V, 232 A, dark beige
-
Produkt ID:2694060000Pakningsenhed:5 Styk
Feed-through terminal, PUSH IN, 95 mm², 1000 V, 232 A, dark beige
-
Produkt ID:2694220000Pakningsenhed:1 Styk
Feed-through terminal, PUSH IN, 95 mm², 1000 V, 232 A, dark beige
-
Produkt ID:2694170000Pakningsenhed:5 Styk
Feed-through terminal, PUSH IN, 95 mm², 1000 V, 232 A, black/yellow
-
Produkt ID:2694160000Pakningsenhed:5 Styk
Feed-through terminal, PUSH IN, 95 mm², 1000 V, 232 A, blue
-
Produkt ID:2694180000Pakningsenhed:1 Styk
Feed-through terminal, PUSH IN, 95 mm², 1000 V, 232 A, dark beige
-
Produkt ID:2694070000Pakningsenhed:5 Styk
Feed-through terminal, PUSH IN, 95 mm², 1000 V, 232 A, blue
-
Produkt ID:2694100000Pakningsenhed:1 Styk
Feed-through terminal, PUSH IN, 95 mm², 1000 V, 232 A, dark beige
-
Produkt ID:2694080000Pakningsenhed:5 Styk
Feed-through terminal, PUSH IN, 95 mm², 1000 V, 232 A, black/yellow
-
Produkt ID:2694200000Pakningsenhed:1 Styk
Feed-through terminal, PUSH IN, 95 mm², 1000 V, 232 A, dark beige
-
Produkt ID:2694140000Pakningsenhed:1 Styk
Feed-through terminal, PUSH IN, 95 mm², 1000 V, 232 A, dark beige
-
Produkt ID:2694130000Pakningsenhed:1 Styk
Feed-through terminal, PUSH IN, 95 mm², 1000 V, 232 A, dark beige
-
Produkt ID:2755910000Pakningsenhed:5 Styk
Feed-through terminal, PUSH IN, 95 mm², 1000 V, 232 A, blue
-
Produkt ID:2742130000Pakningsenhed:5 Styk
Feed-through terminal, PUSH IN, 95 mm², 1000 V, 232 A, black/yellow
-
Produkt ID:2742120000Pakningsenhed:5 Styk
Feed-through terminal, PUSH IN, 95 mm², 1000 V, 232 A, dark beige
