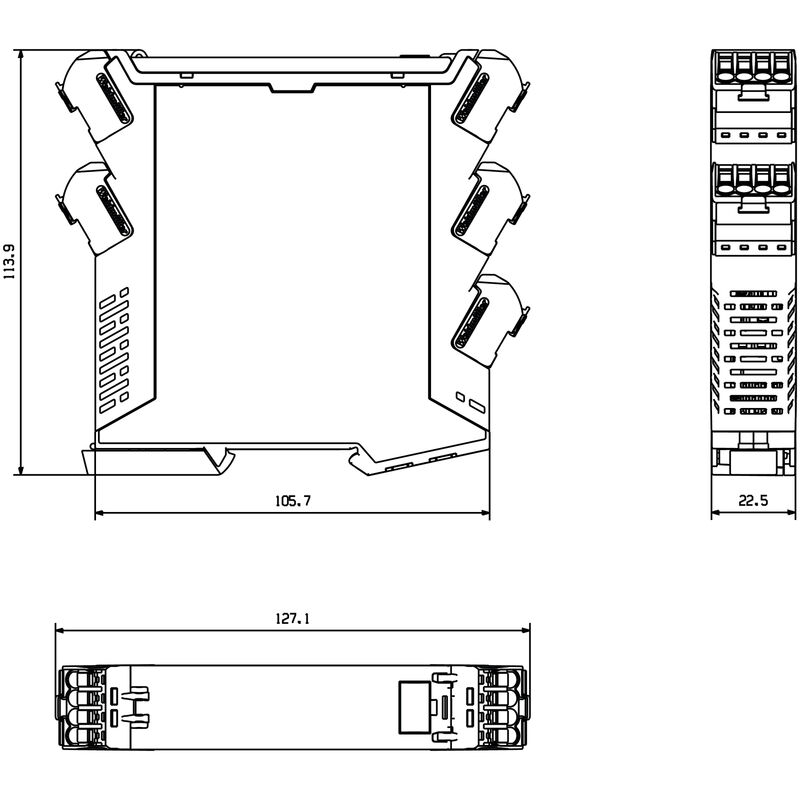

Méretrajz
ACT20P-UI-2RCO-DC-P

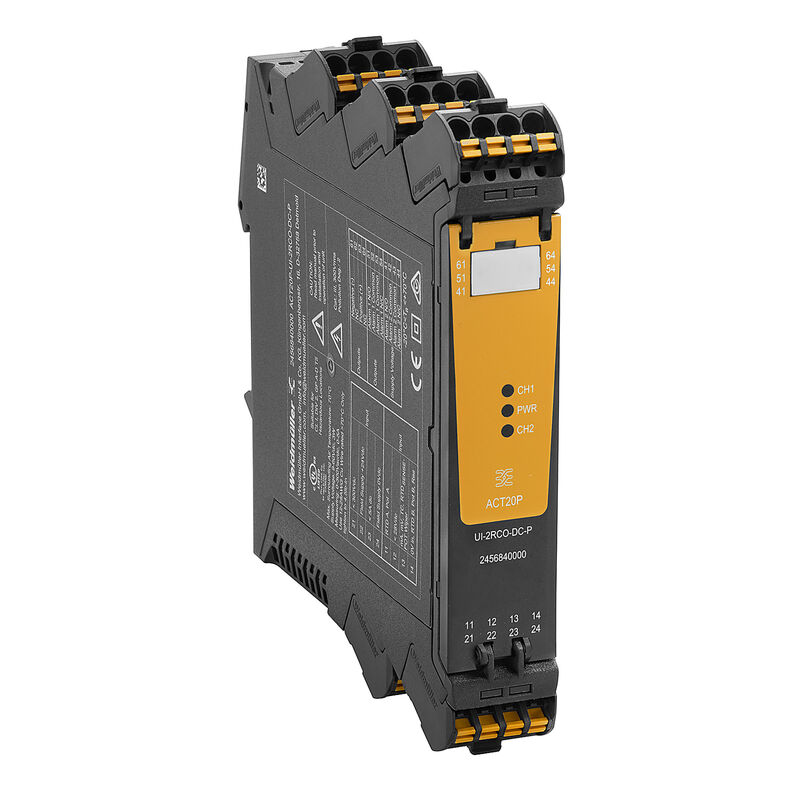

Similar to illustration
ACT20P-UI-2RCO-DC-P
ACT20P-UI-2RCO-DC-P
ACT20P-UI-2RCO-DC-P
Example of use
ACT20P-UI-2RCO-DC-P

ACT20P-UI-2RCO-DC-P

Limit value monitoring, Input : universal U, I, R,ϑ, Output : 2 x relays, Input: temperature, R, U, I, Relay output, 24 V DC power supply

ID výrobku 2456840000
Otevřít v konfigurátoru
Stáhnout datový list Technická podpora Softwarová podpora Dokumenty ke stažení
Příslušenství 3 Jednotlivé díly 1 Příbuzné výrobky 18
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Input Output Output (digital) General data Insulation coordination Connection data Part description Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/4a92d911-d582-40e3-85fc-c9e9b159e140/DAP_Master_ICON,w_80,q_80)
Approvals
CULUS;
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULusEX)
E338066

General ordering data

Version
Limit value monitoring, Input : universal U, I, R,ϑ, Output : 2 x relays, Input: temperature, R, U, I, Relay output, 24 V DC power supply
Order No.
2456840000
Type
ACT20P-UI-2RCO-DC-P
GTIN (EAN)
4050118471779
Qty.
1 adet

Dimensions and weights

Depth
113,6 mm
Depth (inches)
4,472 inch
Height
127,1 mm
Height (inches)
5,004 inch
Width
22,5 mm
Width (inches)
0,886 inch
Čistá hmotnost
166 g

Temperatures

Storage temperature
-20 °C...70 °C
Operating temperature
-20 °C...60 °C
Humidity at operating temperature
0...95 % (no condensation)
Wilgotność
10...90 % (bez obroszenia)

Probability of failure

SIL in compliance with IEC 61508
None
MTBF
180 a

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
2f6dd957-421a-46db-a0c2-cf1609156924

Input

Cable-length compensation
<±0.002 Ω per cable resistance Ω
Influence of the sensor cable resistance
5 Ω @ RTD- Kabel
Input current
configurable
± 25 mA DC
±5 A DC
Input resistance, current
40 Ω
Input resistance, voltage
2 MΩ
> 10 MΩ
Input voltage
configurable
±150 mV DC
± 600mV DC
±30 V DC
±300 V DC
Number inputs
1
Potentiometer
1.2…500 kΩ
Resistance
0…10 kΩ
0…12 kΩ
0…15 kΩ
Sensor
Thermocouples: B, E, J, K, L, N, R, S, T, U
RTD: PT100, PT200, PT1000, Ni120, Cu10, 2-/3-/4-wire
Sensor supply
0.1 mA / 0.05 mA (depending on measuring range) @ RTD cable
24 V (@ 4-20 mA loop)
Temperature input range
B: +100…+1820 °C
E: -270…+1000 °C
J: (-210…+1200 °C)
K: -270…+1372 °C
L: +100…+900 °C
N: (-180…+1300 °C)
R: -50…+1768 °C
S: -50…+1768 °C
T: -270…+400 °C
U: -200…+600 °C

Output

Number of outputs
2

Output (digital)

Alarm function
configurable
Top and bottom limit values, window range
Alarm delay: 0…99 s
Hysteresis adjustable
auto / manual reset
Max. switching voltage, AC
250 V
Max. switching voltage, DC
110 V
Névleges kapcsolási áram
200mA @ 110Vdc
6A @ 24Vdc / 240Vac
Type
2 CO contacts
normal / inverse adjustment
Switching frequency 20 Hz
Uscite digitali
2

General data

Accuracy
<0.1 % of measuring range
Cold-junction compensation error
±2.0°C @ -20° C - 70°C
Configuration
With FDT/DTM software
or via 7-segment display, push-buttons and rotary encoder on the device itself
Requires configuration adapter 8978580000 CBX200 USB
Long-term drift
0,1 % / 10.000 h
Mounting rail
TS 35
Nominal power consumption
1,5 VA
Operating altitude
≤ 2000 m
Power consumption
≤ 3.5 W
<2 W
Protection degree
IP20
Repeat accuracy
± 0.05 % of measuring range final value
Step response time
450 ms
Supply voltage
9...60 V DC
Temperature coefficient
<0.02 °C of measuring range / °C
350 ppm/K

Insulation coordination

EMC standards
EN 61326-1
Galvanic isolation
between input ⁄ output ⁄ supply ⁄ relay
Impulse withstand voltage
4 kV (1.2/50 µs)
Insulation voltage
4 kV (ingresso / uscita)
Pollution severity
2
Rated voltage
300 Veff
Surge voltage category
III
Test voltage
0,3 kV

Connection data

Type of connection
PUSH IN
Tightening torque, min.
0,4 Nm
Tightening torque, max.
0,6 Nm
Clamping range, rated connection
2,5 mm²
Clamping range, min.
0,5 mm²
Klemmbereich, max.
2,5 mm²
Leiteranschlussquerschnitt AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Сечение подключаемого провода, одножильного, мин.
0,2 mm²
Ledardiameter, entrådig max.
2,5 mm²
Průřez připojení vodičů, jemně stáčené, min.
0,2 mm²
Průřez připojení vodičů, jemně stáčené, max.
2,5 mm²
Průřez připojení vodiče, jemně splétaný s koncovkami DIN 46228/4, min.
0,2 mm²
Průřez připojení vodiče, jemně splétaný s koncovkami DIN 46228/4, max.
2,5 mm²

Part description

Product description
The devices of the ACT20P-UI-2RCO-XX-x family record current, voltage, potentiometer and temperature sensor signals (mA, A, mV, V, potentiometer, RTD and TC). They have two independent relay outputs which emit an alarm when levels exceed or fall below pre-set limits.
