HDC HEE 18 FC
HDC HEE 18 FC

HDC HEE 18 FC

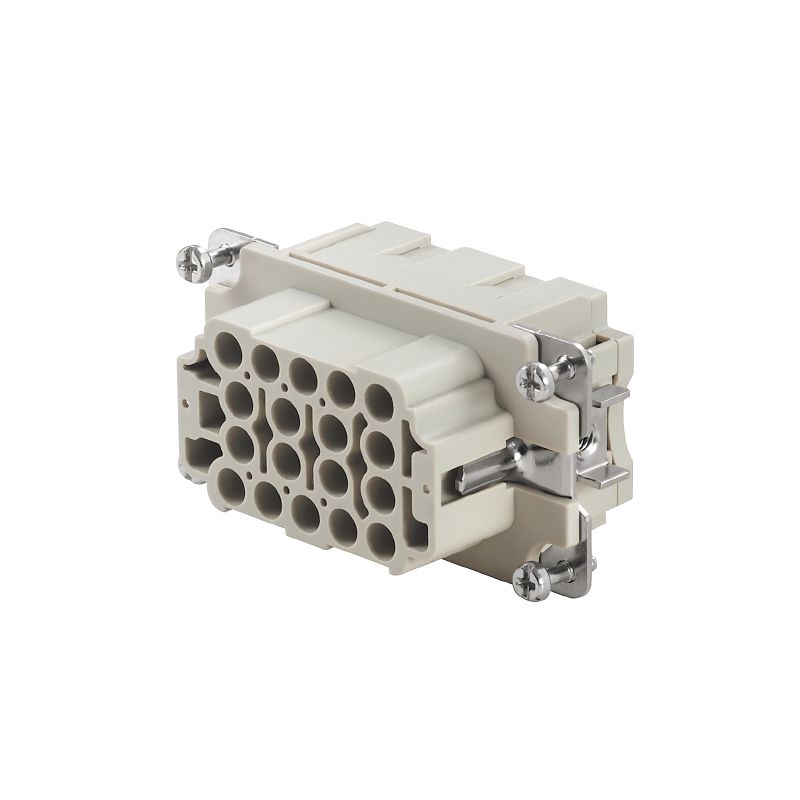

HDC insert, Female, 500 V, 16 A, Number of poles: 18, Crimp connection, Installation size: 4

Tuotteen tunnus 1826820000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 16 Samankaltaiset tuotteet 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensioni General data Connection data PE wersja Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
N° certificato (cURus)
E92202

General ordering data

Versione
HDC insert, Female, 500 V, 16 A, Number of poles: 18, Crimp connection, Installation size: 4
N. d’ordine
1826820000
Tipo
HDC HEE 18 FC
GTIN (EAN)
4032248330225
CPZ
1 items

Dimensions and weights

Profondità
64 mm
Depth (inches)
2,52 inch
Posizione verticale
36 mm
Height (inches)
1,417 inch
Larghezza
34 mm
Width (inches)
1,339 inch
Net weight
44 g

Temperatures

Valori limite di temperatura
-40 °C ... 125 °C

Environmental Product Compliance

Stato conformità RoHS
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
1609748e-c278-4c9b-b3d1-e6215d2988cd
Resistenza chimica
  • Substance:
    Acetone
  • Chemical resistance:
    Resistant
  • Substance:
    Ammonia, watery
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Petrol
  • Chemical resistance:
    Resistant
  • Substance:
    Benzene
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Acetic acid, concentrated
  • Chemical resistance:
    Resistant
  • Substance:
    Potassium hydroxide
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Methanol
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Motor oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Lye, diluted
  • Chemical resistance:
    Resistant
  • Substance:
    Hydrochlorofluorocarbons
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Outdoor use
  • Chemical resistance:
    Conditionally resistant

Dimensioni

Altezza Femmina
36 mm
Larghezza
34 mm
Lunghezza, zoccolo
64 mm

General data

BG
4
Colour
beige
Grado di lordura
3
Grado inflamabilidad según UL 94
V-0
Insulation resistance
1010 Ω
Materiale di base
Copper alloy
Number of poles
18
Number of power contacts
18
Number of signal contacts
0
Plugging cycles, gold
≥ 500
Prąd pomiarowy (DIN EN 61984)
16 A
Rated voltage according to UL/CSA
600 V AC/DC
Resistencia de paso
≤2 mΩ
Steckzyklen Ag
≥ 500
Tamaño de instalación
4
Tipo
Female
Type of connection
Crimp connection
Udarowe napięcie pomiarowe (DIN EN 61984)
6 kV
Низкий уровень дымности по стандарту DIN EN 45545-2
Yes
Номинальный ток (cUR)
  • Wire connection cross section AWG:
    AWG 12
  • Rated current:
    11,3 A
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    8,5 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    6,3 A
  • Wire connection cross section AWG:
    AWG 18
  • Rated current:
    5,9 A
  • Wire connection cross section AWG:
    AWG 20
  • Rated current:
    4,3 A
Номинальный ток (UR)
  • Wire connection cross section AWG:
    AWG 12
  • Rated current:
    21,6 A
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    16 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    11,9 A
  • Wire connection cross section AWG:
    AWG 18
  • Rated current:
    11 A
  • Wire connection cross section AWG:
    AWG 20
  • Rated current:
    8,1 A
シリーズ
HEE
絶縁材
PC glass-fibre reinforced (UL-listed and railway-certified)
絶縁材グループ
IIIa
締付けトルク、最小 PE 接続
1,2 Nm
정격 전압(DIN EN 61984)
500 V
조임 토크, 최대 PE 결선
1,5 Nm
컨덕터 단면적
4 mm²

Connection data PE

Coppia di serraggio max. collegamento PE
1,5 Nm
Coppia di serraggio, min. collegamento PE
1,2 Nm
Dimensione lama (a croce)
size PH1
Dimensione lama (a taglio) (collegamento PE)
SD 0.8 x 4.0
Lunghezza di spellatura, collegamento PE
10 mm
Sezione di collegamento cavo AWG (PE), max.
AWG 12
Sezione di collegamento cavo AWG (PE), min.
AWG 20
Sezione di dimensionamento
4 mm²
Tipo di collegamento PE
Screw connection
Vite di fissaggio
M 4

wersja

BG
4
Dimensioni di installazione
4
Materiale di base
Copper alloy
Resistenza di passaggio
≤2 mΩ
Sezione di collegamento cavo AWG, min.
AWG 20
Sezione di collegamento cavo, flessibile con terminali DIN 46228/4, max.
4 mm²
Sezione di collegamento cavo, flessibile con terminali DIN 46228/4, min.
0,5 mm²
Sezione di collegamento cavo, flessibile, max.
4 mm²
Sezione di collegamento cavo, flessibile, min.
0,5 mm²
Sezione di collegamento cavo, max.
4 mm²
Sezione di collegamento cavo, min.
0,5 mm²
Sezione di collegamento cavo, rigido, max.
4 mm²
Sezione di collegamento cavo, rigido, min.
0,5 mm²
Tipo di collegamento
Crimp connection
导线最大压接面积 AWG
AWG 12
额定连接下的裸线长度
7,5 mm

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
