Eigenschaften

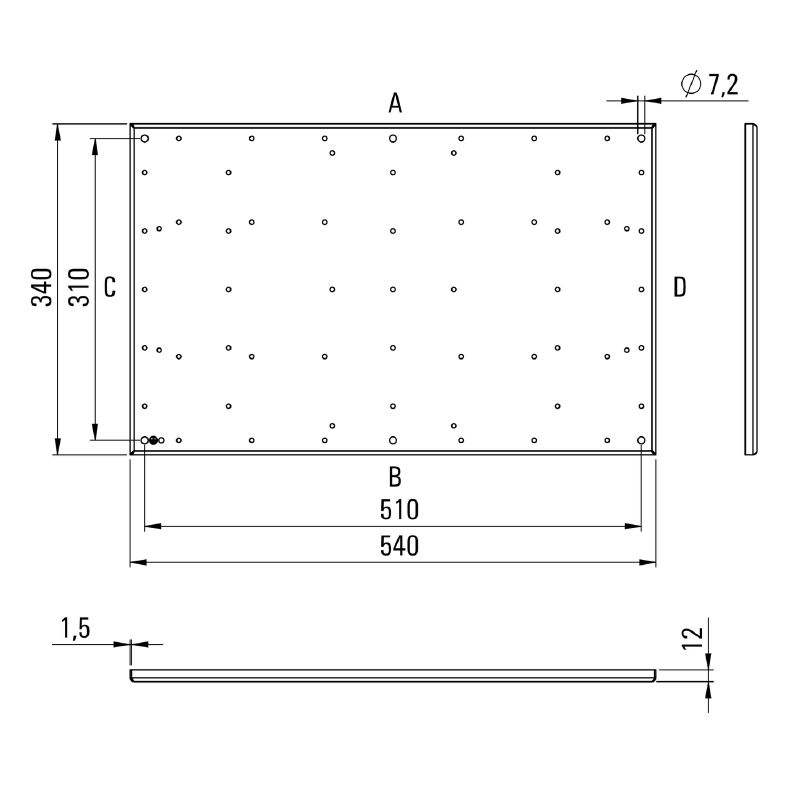

| Ausfuehrung | Klippon EB (Essential Box), Montageplatte, Höhe: 340 mm, Breite: 540 mm, Tiefe: 12 mm, Werkstoff: Edelstahl 1.4301 (304), unbehandelt, silber |
| Best.-Nr. | 8000074320 |
| Art | KEB MOPL 4060 S2N H |
| GTIN (EAN) | 4064675425298 |
| VPE | 1 Stück |
| Tiefe | 12 mm |
| Tiefe (inch) | 0,472 inch |
| Höhe | 340 mm |
| Höhe (inch) | 13,386 inch |
| Breite | 540 mm |
| Breite (inch) | 21,26 inch |
| Nettogewicht | 2.295 g |
| RoHS-Konformitätsstatus | Konform ohne Ausnahme |
| REACH SVHC | No SVHC above 0.1 wt% |
| Materialstärke | 1,5 mm |
| Oberfläche | unbehandelt |
| Werkstoff | Edelstahl 1.4301 (304) |
| Engineering-Daten | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_224946) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8000074320) |
| Kataloge | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000213 |
| ETIM 7.0 | EC000213 |
| ETIM 8.0 | EC000213 |
| ETIM 9.0 | EC000213 |
| ECLASS 9.0 | 27-40-06-39 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-40-06-39 |
| ECLASS 11.0 | 27-40-06-39 |
| ECLASS 12.0 | 27-40-06-39 |
| ECLASS 13.0 | 27-40-06-39 |
| ECLASS 14.0 | 27-40-06-39 |
| ROHS | Konform |
