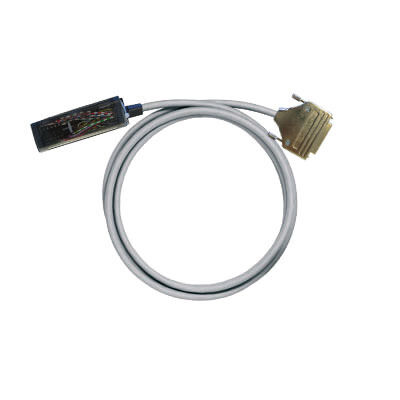

PAC-RX3I-SD25-V0-2M

PAC-RX3I-SD25-V0-2M

Pre-assembled cable, PAC, Cable LiYCY, 0.25 mm²

Ürün No. 7789625020
Veri sayfasını indir Product Downloads
İlgili ürünler 185
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance dane ogólne Electrical Data Classifications

Approvals

ROHS
Conform

General ordering data

Változat
Pre-assembled cable, PAC, Cable LiYCY, 0.25 mm²
Rendelési szám
7789625020
Tipo
PAC-RX3I-SD25-V0-2M
GTIN(EAN)
4032248348800
Qty.
1 adet

Dimensions and weights

Net weight
510 g

Temperatures

Temperatura di magazzinaggio
-10...60 °C
Temperatura d'esercizio
-10...50

Environmental Product Compliance

Status zgodności z dyrektywą RoHS
Compliant with exemption
RoHS 면제(해당되거나 알려진 경우)
6c
REACH SVHC
Lead 7439-92-1
SCIP
4bbf2c0d-0764-4fc8-bb24-9351c28c190d

dane ogólne

Interface connector
SUB-D FEMALE 25P
interfejs SPS
GEFANUC IC694TBS032 36P
liczba biegunów, min.
25-pole
przekrój przewodu
0,25 mm²
Średnica zewnętrzna
10.15 ± 1 mm
기본 재질
PVC
적합
Analogue signals
케이블
Cable LiYCY
케이블 길이
2 m

Electrical Data

경로별 허용 전류 세기, 최대
1 A
고전압 테스트
1 KV/1s
용량 와이어/와이어
300 pF/m
용량 와이어/차폐
300 pF/m
저항
≤ 80 mΩ/m
정격 전압
≤ 60 Vdc ≤ 25 Vac
총 전류, 최대
3 A

Classifications

ETIM 8.0
EC000237
ETIM 9.0
EC000237
ETIM 10.0
EC000237
ECLASS 14.0
27-24-22-20
ECLASS 15.0
27-24-22-20
