SAID-M8S-8-SMT
Similar to illustration
SAID-M8S-8-SMT
Dimensioned drawing
SAID-M8S-8-SMT
PCB design
SAID-M8S-8-SMT

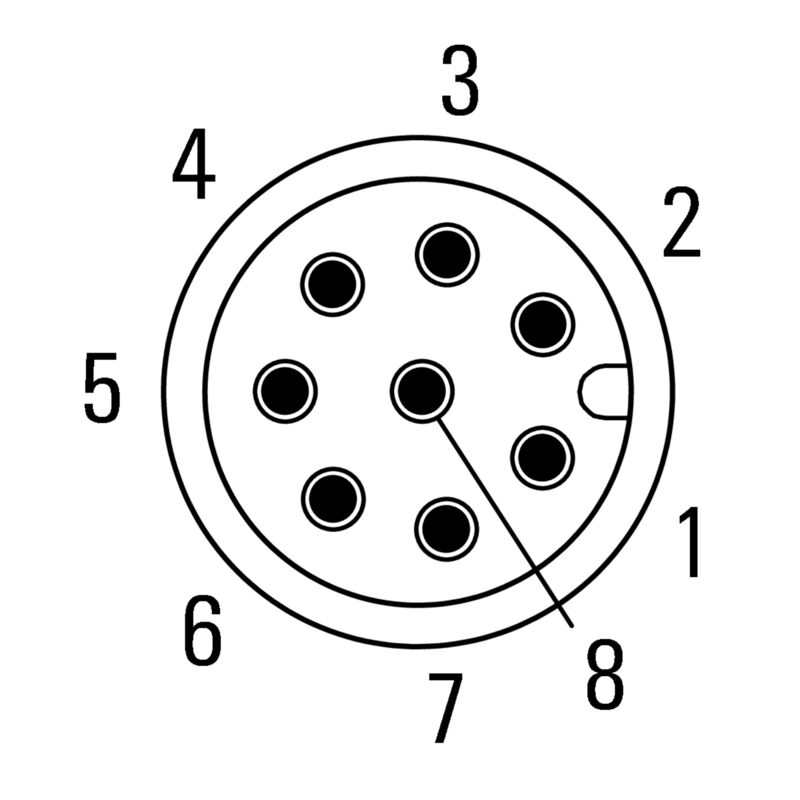

Pole scheme
M8 = none

SAID-M8S-8-SMT

この製品は、まもなくご利用いただけなくなります。

最終注文日: /Date(1793401200000)/

Built-in plugs, M8, Mounting thread: , Number of poles: 8, Strand / cable length:

商品番号 2422110000
データシートのダウンロード エンジニアリング・サポート
付属品 6 関連製品 16
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data of PCB plug-in connector General Info Material data システムパラメータ Classifications

Approvals

ROHS
Conform

General ordering data

Version
Built-in plugs, M8, Mounting thread: , Number of poles: 8, Strand / cable length:
Order No.
2422110000
Type
SAID-M8S-8-SMT
GTIN (EAN)
4050118429657
Qty.
25 adet

Dimensions and weights

Net weight
2 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
0ea6d931-f9e9-40a6-89d9-8d67103189d3

Technical data of PCB plug-in connector

Coding
M8 = none
Housings
M8 pin
Number of poles
8
Shield connection
No
Nominal voltage
30 V
Rated voltage
60 V (3-pole) / 30 V (4-,5- and 8-pole)
Nominal current
1,5 A
Rated current
4 A (3-, 4- and 5-pole) / 1.5 A (8-pole)
Temperature range
-25…95 °C
Protection degree
IP67
Povrch kontaktu
Au (zlato)
Housing main material
LCP
Connection thread
M8
Tightening torque
M8: 0.5 Nm
Grado di lordura
3 (2 all'interno dell'area sigillata)
Plugging cycles
≥ 100
Материал контакта
Сплав меди
ロックナット材質
ニッケルメッキCuZn
フランジ取り付けハウジングの材質
ニッケルメッキCuZn

General Info

Number of poles
8
UL 94 flammability rating
V-0
Housing main material
LCP
Anschlussgewinde
M8
Kontaktmaterial
Cu-legering
Contact surface
Au (Gold)
保護度合い
IP67
プラギング回数
≥ 100

Material data

UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
Au (Gold)

システムパラメータ

Number of poles
8
Pin series quantity
1
Plugging cycles
≥ 100
Protection degree
IP67

Classifications

ETIM 8.0
EC003557
ETIM 9.0
EC003557
ETIM 10.0
EC003557
ECLASS 14.0
27-44-02-23
ECLASS 15.0
27-44-02-23
