SAIP-M12GM12G-4-10U
SAIP-M12GM12G-4-10U
Detailed drawing
Male, straight
SAIP-M12GM12G-4-10U
Detailed drawing
Straight socket
SAIP-M12GM12G-4-10U
Pole scheme
Male
SAIP-M12GM12G-4-10U
Pole scheme
Socket
SAIP-M12GM12G-4-10U
Wiring diagram
SAIP-M12GM12G-4-10U
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIP-M12GM12G-4-10U

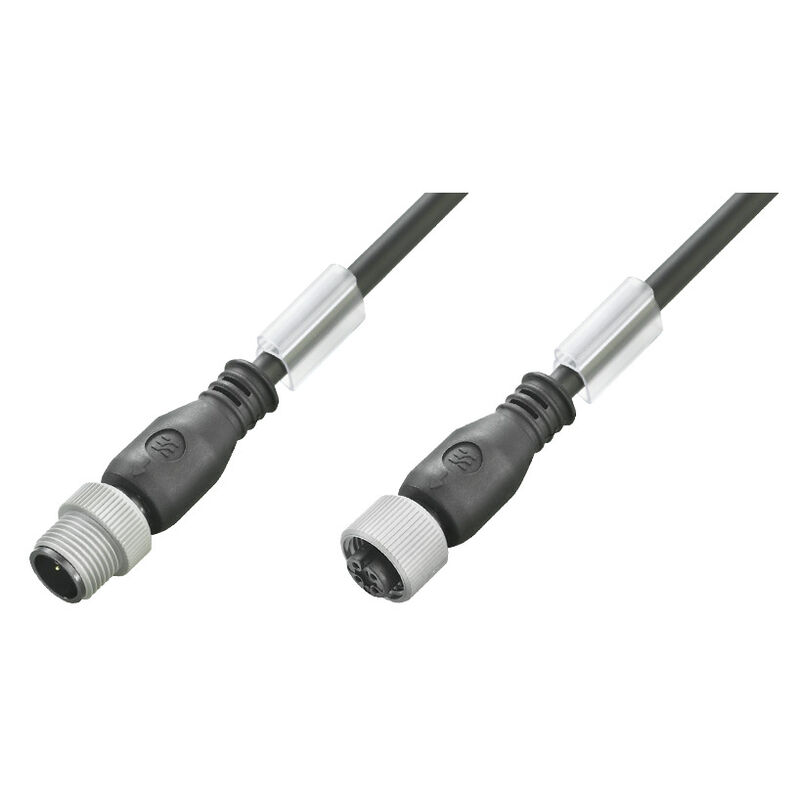

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 10 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Produkt ID 1108841000
Download datablad Engineering-support Produktdownloads
Tilbehør 7 Anvendte produkter 9
Approvals General ordering data Dimensions and weights Environmental Product Compliance 케이블의 기술 사양 General technical data Electrical properties General standards Standards Plug, left Plug, right Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Zertifikat-Nr. (cULus)
E307231

General ordering data

Ausfuehrung
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 10 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Best.-Nr.
1108841000
Art
SAIP-M12GM12G-4-10U
GTIN (EAN)
4032248888061
Qty.
1 Styk

Dimensions and weights

Net weight
271,04 g

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant with exemption
RoHS-Ausnahme (falls zutreffend/bekannt)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

케이블의 기술 사양

Acceleration
5 m/s²
Ader nach UL AWM style
10493 (80 °C / 300 V)
Außendurchmesser
4.1 mm + 0.15 mm
Bending cycles
12 Mio
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Biegezyklen bei Torsionsbeanspruchung
> 5 Mio.
Cable length
10 m
Configurable cable length
No
Core cross-section
0,34 mm²
Farbcodierung
brown
white
blue
black
Halogen
No
Hydrolysis and microbe resistant
Yes
Insulation
PP
LABS-free
Yes
Mantel nach UL AWM style
20549 (80 °C / 300 V)
Number of wires
4
Polzahl
4
Resistance to oils
Yes
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Schweißfunkenbeständigkeit
No
Schweißperlenfest
No
Sheath material
PUR
Sheathing colour
black (similar to RAL 9005)
Shielded
No
Speed
3,33 m/s
Strahlenvernetzt
No
Suitable for cable carriers
Yes
Temperaturbereich, bewegt
-25...60 °C
Temperaturbereich, fest verlegt
-50...80 °C
Torsionsfestigkeit
180 °/m
Torsionslänge
1 m

General technical data

Anschlussgewinde
M12 / M12
Anzugsdrehmoment
M12 (пластмасса): 0,9 - 1,1 Нм
Ausführung
Stift, rakt - uttag, rakt
Codierung
A-coded
gebrückt
No
Gehäusebasismaterial
PUR
Isolationswiderstand
108 Ω
Kontaktoberfläche
Gold-plated
LED
No
Material Gewindering
Plastic
Nennspannung
250 V
Nennstrom
4 A
Schutzart
IP65
IP66
IP67
IP68
when screwed in
Steckzyklen
≥ 100
Temperaturbereich Gehäuse
-25…+85 °C
Verschmutzungsgrad
3

Electrical properties

Isolationswiderstand
108 Ω
Nennspannung
250 V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, IP69, male contact, straight, Plastic, unshielded

Plug, right

Clavija de conexión derecha
M12, A-coded, IP69, female contact, straight, Plastic, unshielded

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
