TRP 230VUC 1CO 16A PB

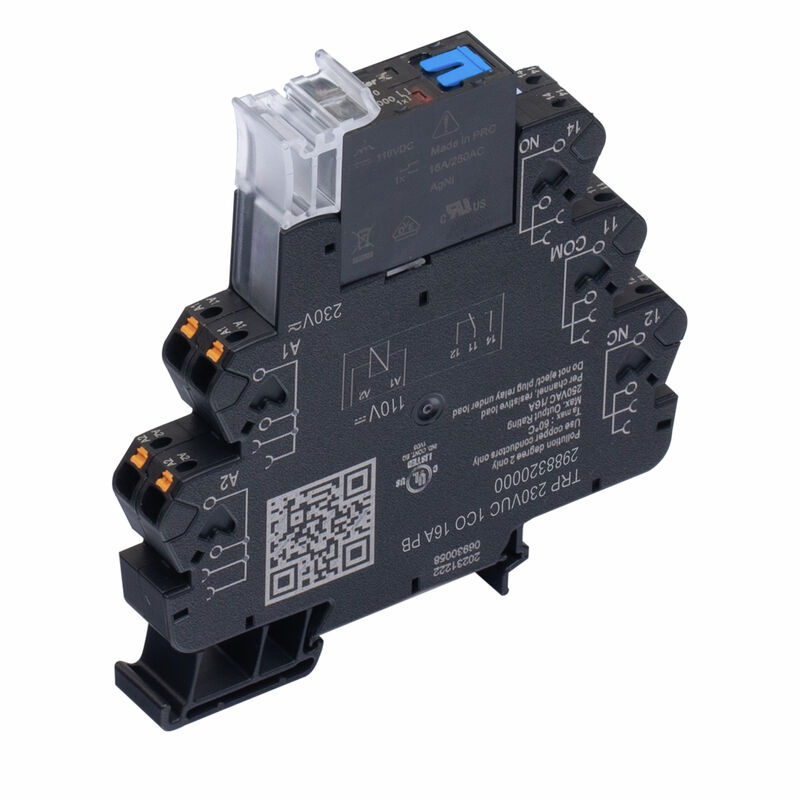

Product image
Similar to illustration
TRP 230VUC 1CO 16A PB

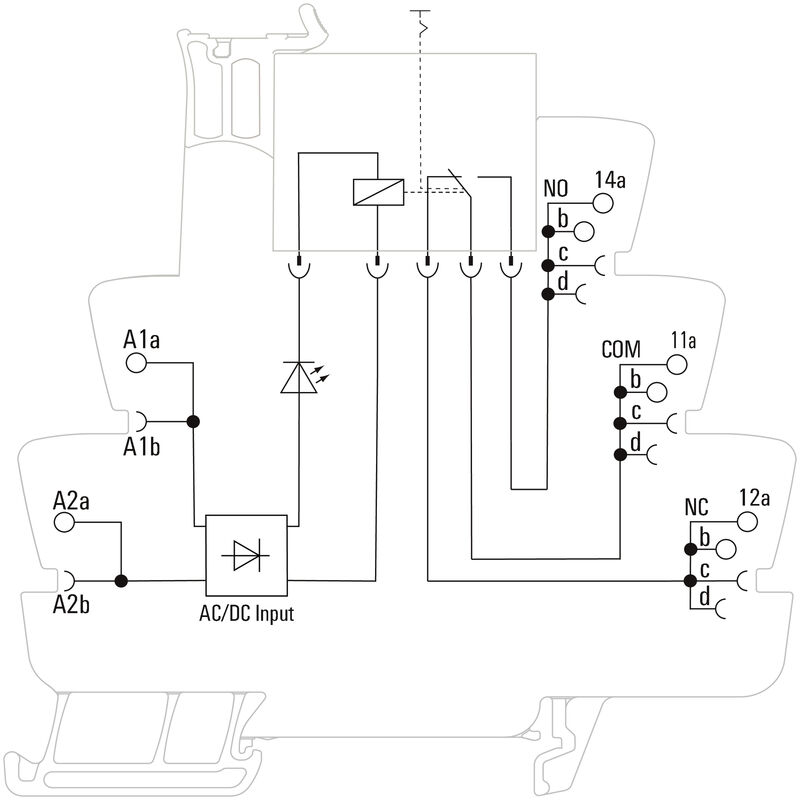

Wiring diagram
TRP 230VUC 1CO 16A PB
Graph
DC load limit curve
Resistive load
TRP 230VUC 1CO 16A PB
Derating curve
TRP 230VUC 1CO 16A PB
Dimensional drawing
TRP 230VUC 1CO 16A PB
Miscellaneous
Type codes

TRP 230VUC 1CO 16A PB

TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi, Rated control voltage: 230 V UC ±5 %, Continuous current: 16 A, PUSH IN, Test button available: Yes

Tuotteen tunnus 2988320000
Avaa konfiguraattorissa
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 25 Samankaltaiset tuotteet 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL Control side Load side General data Insulation coordination Further details of approvals / standards Connection data Classifications

Approvals

인증
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197

General ordering data

버전
TERMSERIES, Relay module, Number of contacts: 1, CO contact AgNi, Rated control voltage: 230 V UC ±5 %, Continuous current: 16 A, PUSH IN, Test button available: Yes
주문 번호
2988320000
유형
TRP 230VUC 1CO 16A PB
GTIN (EAN)
4099986859128
Qty.
5 items

Dimensions and weights

깊이
97,5 mm
Depth (inches)
3,839 inch
높이
89,4 mm
Height (inches)
3,52 inch
너비
12,8 mm
Width (inches)
0,504 inch
Net weight
62 g

Temperatures

보관 온도
-40 °C...70 °C
주변 온도
-40 °C…60 °C
Humidity
5...85 % rel. humidity, no condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS 면제(해당되거나 알려진 경우)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
9e2cbc49-76d9-4611-b8ec-5b4f549a0aa9

Rated data UL

Output current derating (ohmic)
16 A @ 55 °C
12 A @ 60 °C
Connection cross-section AWG, min.
AWG 26
Connection cross-section AWG, max.
AWG 14
Pollution severity level
2

Control side

Rated control voltage
230 V UC ±5 %
Rated current DC
4.3 mA
Status indicator
Green LED
Protective circuit
Free-wheeling diode
Reverse polarity protection
Coil voltage of the replacement relay deviating from the rated control voltage
Yes
Coil voltage of the replacement relay
110 V DC

Load side

Rated switching voltage
250 V AC
Continuous current
16 A
Max. switching frequency at rated load
0,1 Hz
Max. switching voltage, AC
250 V
Max. switching voltage, DC
400 V
Min. switching power
100 mA @ 10 V
Inrush current
30 A / 4 s
AC switching capacity (resistive), max.
4000 VA
DC switching capacity (resistive), max.
46W @ 230V
Switch-on delay
≤ 15 ms
Switch-off delay
≤ 16 ms
Contact type
1 CO contact (AgNi)
Mechanical service life
5 x 106 switching cycles

General data

Operating altitude
≤ 2000 m
above sea level
Szyna montażowa
TS 35
Test button available
Yes
Version of test button
Lockable test button
Momentary test button
Механический индикатор положения переключателя
Yes
Colour
black
UL94 flammability rating component
  • Component:
    Housing
  • UL94 flammability rating:
    V-0
  • Component:
    Retaining clip
  • UL94 flammability rating:
    V-0
  • Component:
    Pusher
  • UL94 flammability rating:
    V-0

Insulation coordination

Номинальное напряжение
300 V
Pollution severity
2
Överspänningskategori
III
Insulating material group
IIIa
Clearance and creepage distances for control side - load side
≥ 5.5 mm
Dielectric strength for control side - load side
2.5 kVeff / 1 Min.
Type of isolation at input and output
reinforced insulation
Dielectric strength of open contact
5 kVeff / 1min
Dielectric strength to mounting rail
4 kVeff / 1 Min.
Impulse withstand voltage
6 kV (1.2/50 µs)
Protection degree
IP20
인근 접점의 임펄스 내전압
4 kV (1.2/50 µs)

Further details of approvals / standards

Certificate no. (cULus)
E141197

Connection data

와이어 결선 방식
PUSH IN
탈피 길이, 정격 결선
9 mm
Clamping range, rated connection
1,5 mm²
Clamping range, min.
0,14 mm²
Clamping range, max.
2,5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Wire cross-section, solid, min.
0,14 mm²
Wire cross-section, solid, max.
1,5 mm²
Wire cross-section, solid, min. (AWG)
AWG 25
Wire cross-section, solid, max. (AWG)
AWG 16
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, finely stranded, max. (AWG)
AWG 14
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0,14 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
1,5 mm²
Blade size
0.4 x 2.0 mm

Classifications

ETIM 8.0
EC001437
ETIM 9.0
EC001437
ETIM 10.0
EC001437
ECLASS 14.0
27-37-16-01
ECLASS 15.0
27-37-16-01
