Properties

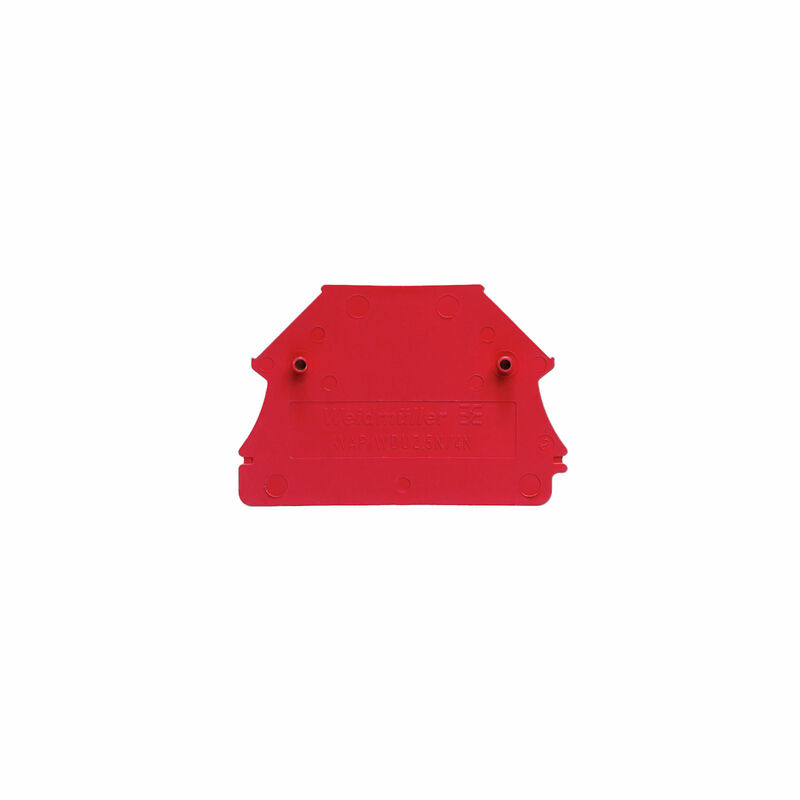

| Version | End plate (terminals), 44 mm x 1.5 mm, red |
| Order No. | 2932440000 |
| Type | WAP WDU2.5N/4N RT |
| GTIN (EAN) | 4099986672239 |
| Qty. | 50 items |
| Depth | 29.7 mm |
| Depth (inches) | 1.169 inch |
| Height | 44 mm |
| Height (inches) | 1.732 inch |
| Width | 1.5 mm |
| Width (inches) | 0.059 inch |
| Net weight | 1.781 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| Material | Wemid |
| Colour | red |
| UL 94 flammability rating | V-0 |
| Version | End plate |
| Installation advice | Direct mounting |
| Snap-on | No |
| Installation advice | Direct mounting |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_301952) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
Is accessory of
-
Item No.:1016200000Packaging unit:50 PC
PE terminal, Screw connection, 2.5 mm², 500 V, Number of connections: 2, Number of levels: 1, Green/yellow
-
Item No.:1023780000Packaging unit:100 PC
Feed-through terminal block, Screw connection, 2.5 mm², 500 V, 24 A, Number of connections: 2
-
Item No.:1023760000Packaging unit:100 PC
Feed-through terminal block, Screw connection, 2.5 mm², 500 V, 24 A, Number of connections: 2
-
Item No.:1023700000Packaging unit:100 PC
Feed-through terminal block, Screw connection, 2.5 mm², 500 V, 24 A, Number of connections: 2
-
Item No.:2429780000Packaging unit:100 PC
Feed-through terminal block, Screw connection, 2.5 mm², 500 V, 24 A, Number of connections: 2
