Properties

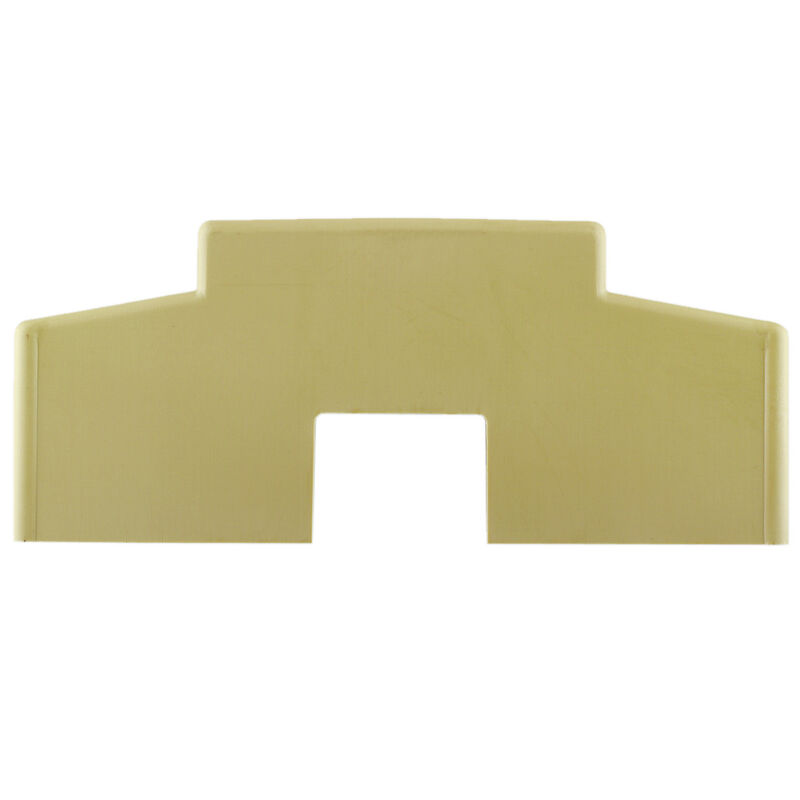

| Version | Terminal cover, PA 66, beige, Height: 186 mm, Width: 38 mm, Depth: 78 mm |
| Order No. | 0326860000 |
| Type | AH 40 SAKG40 |
| GTIN (EAN) | 4008190061258 |
| Qty. | 5 items |
| Depth | 78 mm |
| Depth (inches) | 3.071 inch |
| Height | 186 mm |
| Height (inches) | 7.323 inch |
| Width | 38 mm |
| Width (inches) | 1.496 inch |
| Net weight | 85.6 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| Material | PA 66 |
| Colour | beige |
| UL 94 flammability rating | V-2 |
| Version | Hood |
| Installation advice | Direct mounting |
| Snap-on | Yes |
| Installation advice | Direct mounting |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0326860000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=0326860000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ROHS | Conform |
Is accessory of
-
Item No.:0185220000Packaging unit:10 PC
Feed-through terminal block, Threaded stud connection, 95 mm², 1000 V, 232 A, Number of connections: 1
-
Item No.:0170520000Packaging unit:10 PC
Feed-through terminal block, Threaded stud connection, 95 mm², 1000 V, 232 A, Number of connections: 1
-
Item No.:0637720000Packaging unit:5 PC
Feed-through terminal block, Screw connection, 95 mm², 1000 V, 232 A, Number of connections: 2
-
Item No.:0637820000Packaging unit:5 PC
Feed-through terminal block, Screw connection, 95 mm², 1000 V, 232 A, Number of connections: 2
