Properties

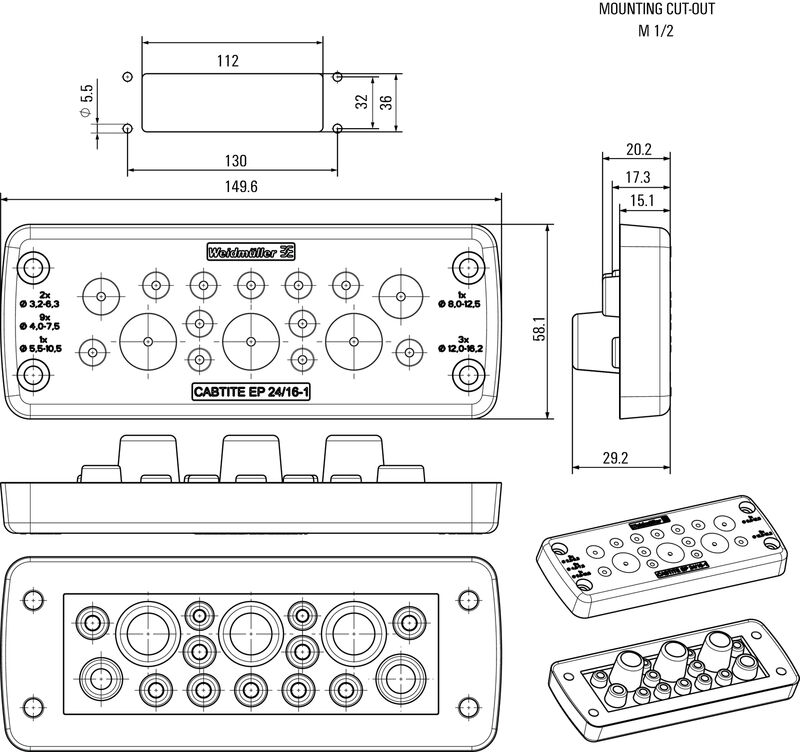

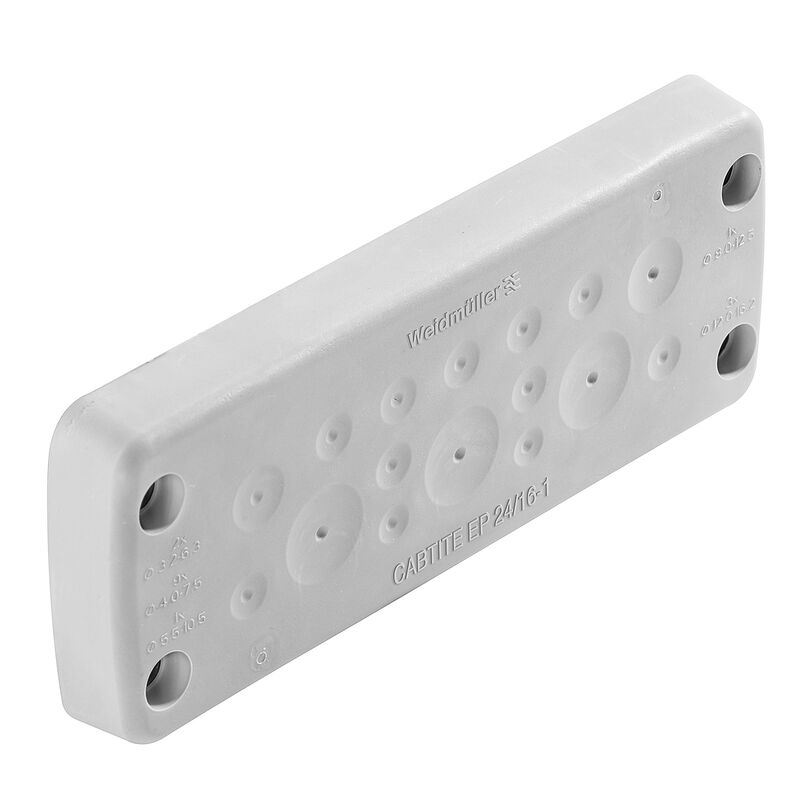

| Version | Cable entry plate, Cabtite (cable entry system), TPE, grey, Height: 58 mm, Width: 149.6 mm, Depth: 29.2 mm, -40 °C…90 °C, IP66 |
| Order No. | 2779340000 |
| Type | CABTITE EP 24/16-1 GY |
| GTIN (EAN) | 4064675048916 |
| Qty. | 10 items |
| Depth | 29.2 mm |
| Depth (inches) | 1.15 inch |
| Height | 58 mm |
| Height (inches) | 2.283 inch |
| Width | 149.6 mm |
| Width (inches) | 5.89 inch |
| Net weight | 109.9 g |
| Operating temperature | -40 °C...90 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | TPE |
| Protection class (UL) |
Type 1
Type 12 Type 4X |
| Protection degree | IP66 |
| Silicone | No |
| Tightening torque | 3.5 Nm |
| UL 94 flammability rating | V-0 |
| Type of mounting | 4 screws |
| Number of connectable cables | 16 |
| Cable entries |
|
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity - Cabtite EP - DoC DE PS2483](https://mdcop.weidmueller.com/mediadelivery/asset/900_198864) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_212306) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2779340000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2779340000) |
| User Documentation | [INSTR CABTITE EP DE/EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_200399) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002624 |
| ETIM 7.0 | EC002624 |
| ETIM 8.0 | EC002624 |
| ETIM 9.0 | EC002624 |
| ECLASS 9.0 | 27-18-28-15 |
| ECLASS 9.1 | 27-18-92-65 |
| ECLASS 10.0 | 27-18-28-15 |
| ECLASS 11.0 | 27-18-28-15 |
| ECLASS 12.0 | 27-18-28-15 |
| ECLASS 13.0 | 27-18-28-15 |
| ECLASS 14.0 | 27-18-28-15 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E223801 |
