Properties
| Version | , 1-channel distributor LIMITER, IP66, IP67 |
| Order No. | 2623870000 |
| Type | FBCON PA CG 1WAY LIMITER |
| GTIN (EAN) | 4050118627381 |
| Qty. | 1 items |
| Height | 34 mm |
| Height (inches) | 1.339 inch |
| Width | 64 mm |
| Width (inches) | 2.52 inch |
| Length | 58 mm |
| Length (inches) | 2.283 inch |
| Net weight | 266 g |
| Storage temperature | -40 °C...80 °C |
| Operating temperature | -40 °C...75 °C |
| REACH SVHC | Lead 7439-92-1 |
| Bus system |
Profibus-PA
Foundation Fieldbus |
| Cable glands | Brass cable gland |
| Connection type PE | Spur line with cable gland |

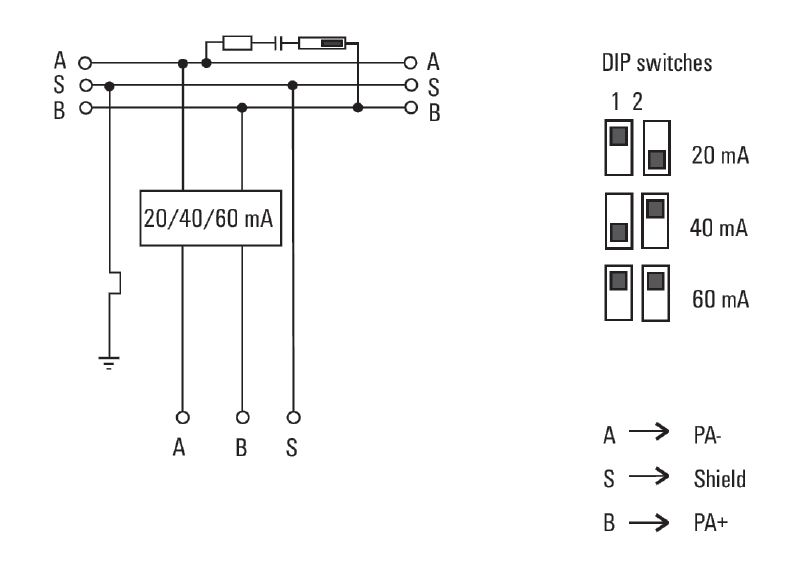

| Current limiting |
adjustable
20 mA, 40 mA, 60 mA |
| Design of housing | With pressure compensation element |
| Housing main material |
Aluminium
AISi12 Aluminum |
| Housing surface | powder coating |
| Number of poles | 3 |
| Operating voltage Umax, max. | 32 V |
| Pollution severity | 3 |
| Protection degree |
IP66
IP67 |
| Type of distribution | 1-channel distributor LIMITER |
| Type of mounting | surface-mounted |
| Approval/Certificate/Document of Conformity | [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_313469) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_234170) |
| User Documentation | [Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_313848) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001604 |
| ETIM 7.0 | EC001604 |
| ETIM 8.0 | EC001604 |
| ETIM 9.0 | EC001604 |
| ECLASS 9.0 | 27-24-26-08 |
| ECLASS 9.1 | 27-24-26-08 |
| ECLASS 10.0 | 27-24-26-08 |
| ECLASS 11.0 | 27-24-26-08 |
| ECLASS 12.0 | 27-44-01-11 |
| ECLASS 13.0 | 27-44-01-11 |
| Approvals |  |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
