Properties

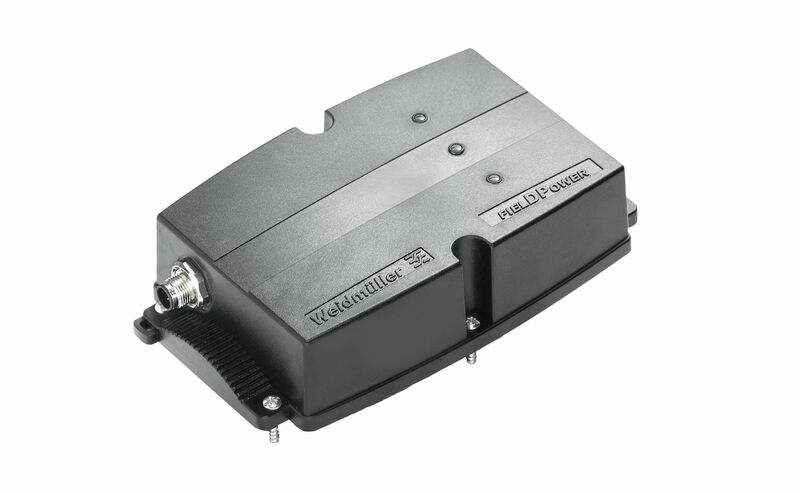

| Version | FieldPower® enclosures, 181 mm, 104 mm, 44 mm, IP65, in complete state, glass-fibre reinforced polycarbonate, black, Status |
| Order No. | 2814710000 |
| Type | FP ENC BM 44 1C FUSE R |
| GTIN (EAN) | 4064675300205 |
| Qty. | 1 items |
| Depth | 44 mm |
| Depth (inches) | 1.732 inch |
| Height | 181 mm |
| Height (inches) | 7.126 inch |
| Width | 104 mm |
| Width (inches) | 4.094 inch |
| Net weight | 225 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...55 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC |
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | 7645f3b1-6db9-495d-9e21-ab1d894aff05 |
| Enclosure material | glass-fibre reinforced polycarbonate |
| Silicone | No |
| Colour | black |
| Protection degree |
IP65
in complete state |
| UL 94 flammability rating | 5VA |
| Torque for lid screws | 2 Nm |
| Lid attachment | TX20 screws |
| Installation advice | Lid screws included |
| Function | Status |

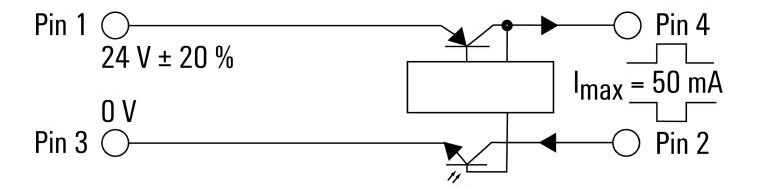

| Type of connection, signal | M12, A-coded |
| Approval/Certificate/Document of Conformity | [Manufacturer's Declaration FieldPower® BOX, BOX FUSE and Terminal variants](https://mdcop.weidmueller.com/mediadelivery/asset/900_42270) |
| User Documentation |
[Datasheet FieldPower® Box Fuse](https://mdcop.weidmueller.com/mediadelivery/asset/900_252972)
[Manual FieldPower® enclosure size 1](https://mdcop.weidmueller.com/mediadelivery/asset/900_269978) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000214 |
| ETIM 7.0 | EC000214 |
| ETIM 8.0 | EC000214 |
| ETIM 9.0 | EC000214 |
| ECLASS 9.0 | 27-14-24-09 |
| ECLASS 9.1 | 27-14-24-09 |
| ECLASS 10.0 | 27-14-24-09 |
| ECLASS 11.0 | 27-14-24-09 |
| ECLASS 12.0 | 27-14-24-09 |
| ECLASS 13.0 | 27-14-24-09 |
| ECLASS 14.0 | 27-14-24-09 |
| ROHS | Conform |
