Properties

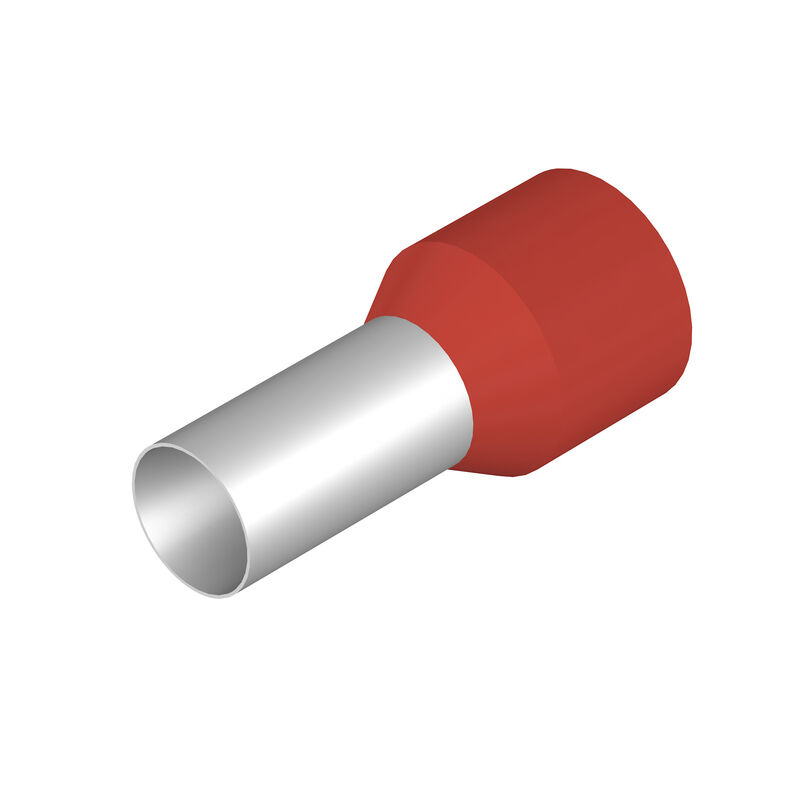

| Version | Wire-end ferrule, Standard, 21 mm, 18 mm, red |
| Order No. | 1418330000 |
| Type | H35,0/32 DS RT |
| GTIN (EAN) | 4050118221626 |
| Qty. | 50 items |
| Packaging | loose |
| Net weight | 2.02 g |
| Description of article | Wire end ferrule with plastic collar, special size, red |
| Version | Standard |
| Collar diameter (D2) | 12.7 mm |
| Colour code | DIN |
| Conductor cross-section | 35 mm² |
| Contact surface diameter (D1) | 8.3 mm |
| Contact surface length (L2) | 18 mm |
| L1 in mm | 32 mm |
| Metal sleeve thickness (S1) | 0.2 mm |
| Plastic collar thickness (S2) | 0.4 mm |
| Stripping length | 21 mm |
| Wire connection cross section AWG, max. | AWG 2 |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1418330000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1418330000&norm=0) |
| User Documentation |
[Technical information - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_106826)
[Technical information - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_106827) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E354986 |
