Properties

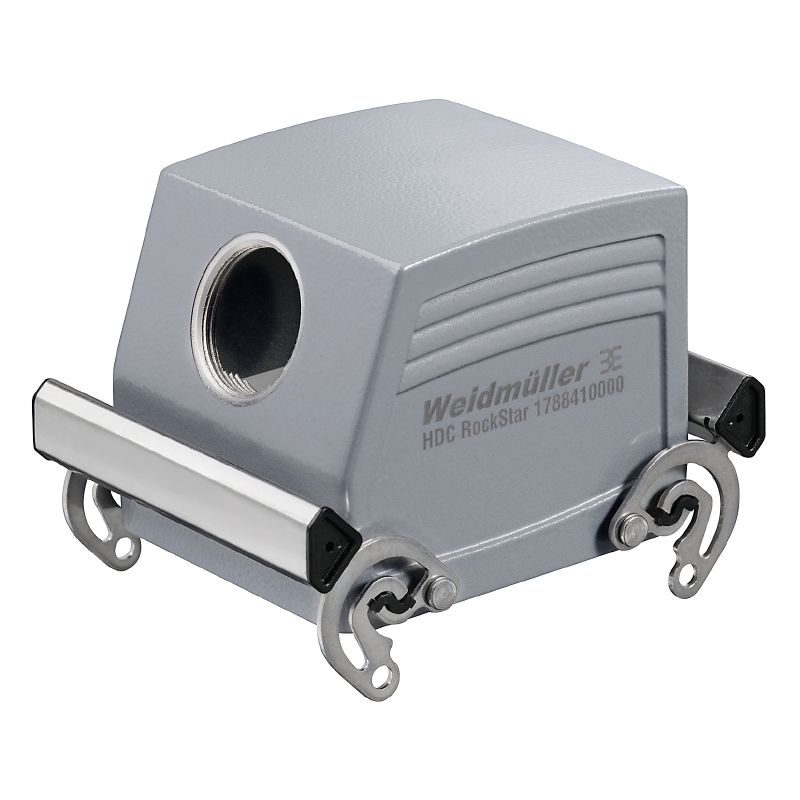

| Version | HDC enclosures, Size: 10, Protection degree: IP65 (in plugged condition), Cable entry from side, Plug housing, Side-locking clamp on upper side, Standard, Size of cable entries: M 32 |
| Order No. | 1788410000 |
| Type | HDC 32B TSBO 1M32G |
| GTIN (EAN) | 4032248205943 |
| Qty. | 1 items |
| Height | 79 mm |
| Height (inches) | 3.11 inch |
| Width | 97 mm |
| Width (inches) | 3.819 inch |
| Net weight | 477 g |
| Limit temperature | -40 °C ... 125 °C |
| REACH SVHC |
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | e98b2b24-ba23-41bf-8d19-0dda3647412f |
| Chemical resistance |
|
| Cable entry | w. thread |
| Height of housing B | 79 mm |
| Total length housing | 94 mm |
| Width housing C | 82.5 mm |
| EMC housings | No |
| Housing main material | diecast aluminium |
| Material of locking element | Stainless steel, rust-proof |
| Protection degree | IP65 (in plugged condition) |
| Surface finish | Powder coating |
| Tightening torque | 2 Nm |
| BG | 10 |
| Cable entry | w. thread |
| Clamp version | Side-locking clamp |
| Colour (RAL) | RAL 7035 |
| Design | Standard |
| Design of housing |
Cable entry from side
Plug housing |
| Design of locking system | Side-locking clamp on upper side |
| Internal thread | M 32 |
| Number of cable entry on top | 0 |
| Number of cable entry sideways | 1 |
| Size | 10 |
| Size of cable entries | M 32 |
| Suitable for ModuPlug® | Yes |
| Tightening torque | 2 Nm |
| Top part/bottom part/lid | upper part |
| Type | Plug |
