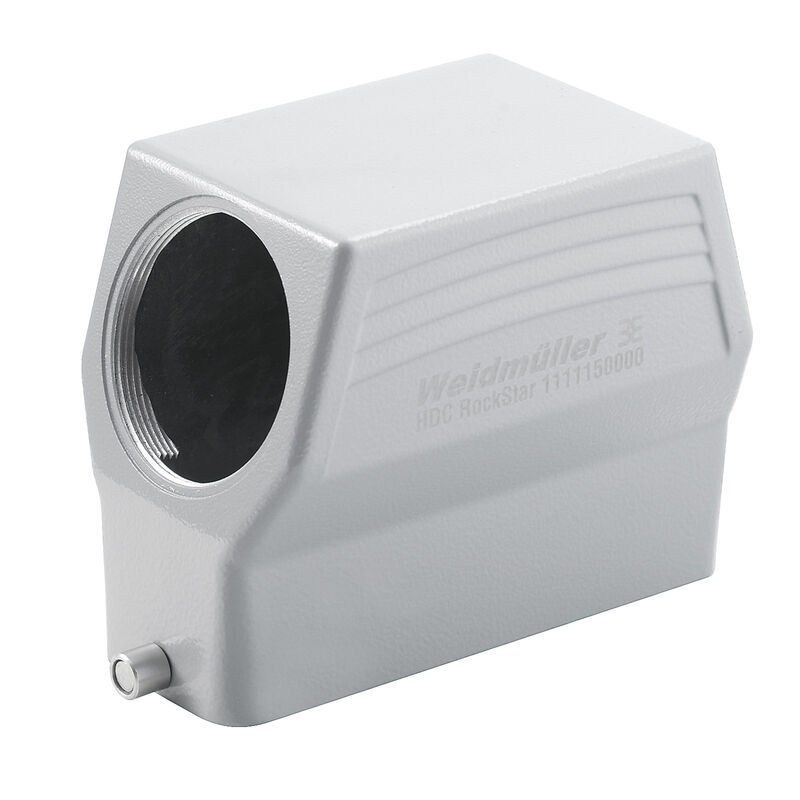

HDC 64D TSLU 1M50G

HDC enclosures, Size: 8, Protection degree: IP65 (in plugged condition), Cable entry from side, Plug housing, End-locking clamp, lower side, Standard, Size of cable entries: M 50

Item No. 1111150000

General ordering data

Version	HDC enclosures, Size: 8, Protection degree: IP65 (in plugged condition), Cable entry from side, Plug housing, End-locking clamp, lower side, Standard, Size of cable entries: M 50
Order No.	1111150000
Type	HDC 64D TSLU 1M50G
GTIN (EAN)	4032248100118
Qty.	1 items

Dimensions and weights

Height	94 mm
Height (inches)	3.701 inch
Width	65.5 mm
Width (inches)	2.579 inch
Net weight	416 g

Temperatures

Limit temperature

-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6bI
REACH SVHC	Lead 7439-92-1
SCIP	d447edfa-0214-4f34-b5ba-82eae491b46a
Chemical resistance	Substance: Acetone Chemical resistance: Conditionally resistant Substance: Drilling oil Chemical resistance: Resistant Substance: Diesel Chemical resistance: Resistant Substance: Ethyl alcohol Chemical resistance: Resistant Substance: Transmission oil Chemical resistance: Resistant Substance: Hydraulic oil Chemical resistance: Resistant Substance: Coolant Chemical resistance: Resistant Substance: Petroleum benzine Chemical resistance: Resistant Substance: Sweat Chemical resistance: Resistant Substance: Premium gasoline Chemical resistance: Conditionally resistant Substance: Water Chemical resistance: Resistant Substance: UV Chemical resistance: Unstable Substance: Ozone Chemical resistance: Unstable

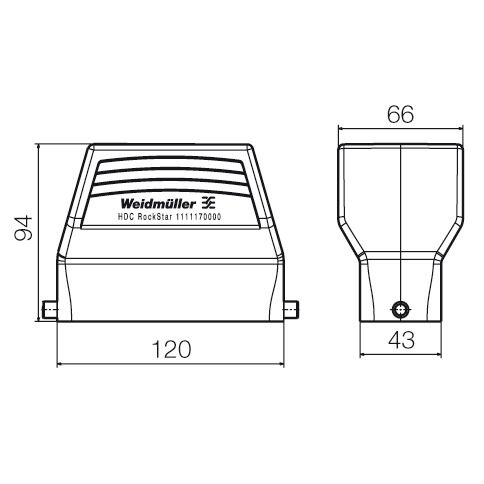

Dimensions

Cable entry	w. thread
Height of housing B	76 mm
Hole pitch length A2	0 mm
Total length housing	120 mm
Width housing C	43 mm

General data

EMC housings	No
Housing main material	diecast aluminium
Protection degree	IP65 (in plugged condition)
Surface finish	Powder coating

Version

BG	8
Cable entry	w. thread
Colour (RAL)	RAL 7035
Design	Standard
Design of housing	Cable entry from side Plug housing
Design of locking system	End-locking clamp, lower side
Internal thread	M 50
Number of cable entry on top	0
Number of cable entry sideways	1
Size	8
Size of cable entries	M 50
Suitable for ModuPlug^®	Yes
Top part/bottom part/lid	upper part
Type	Plug
