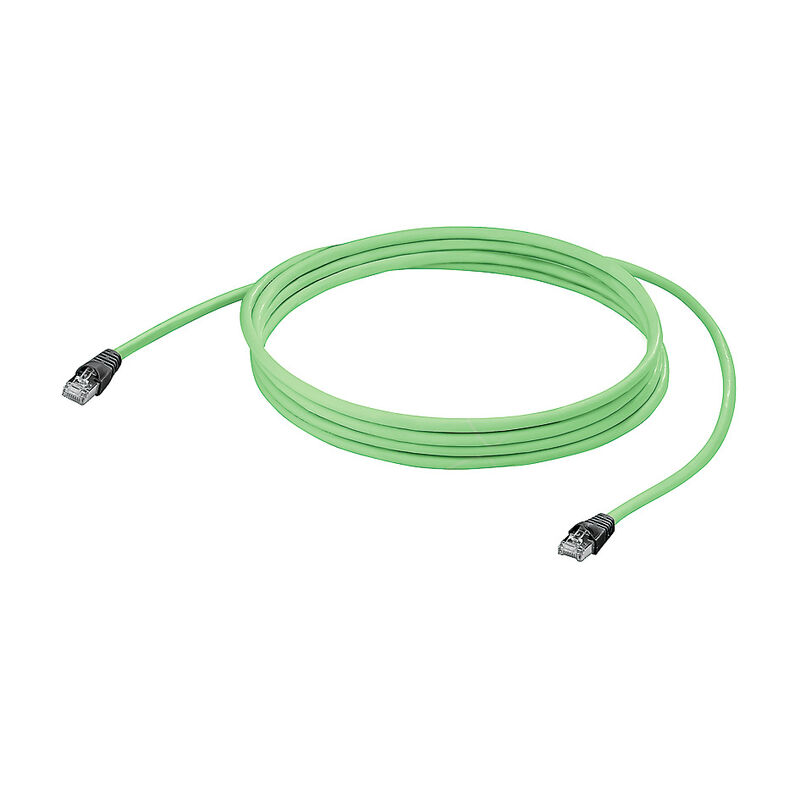

IE-C5ES8VG0150A40A40-E

IE-C5ES8VG0150A40A40-E

System cable, RJ45 IP 20, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PVC, 15 m

Produkt ID 1142800000
Download datablad Engineering-support Produktdownloads
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General standards Struktura kabelu ケーブルの電気プロパティ Mechanical and material properties of cable Plug Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
System cable, RJ45 IP 20, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PVC, 15 m
Order No.
1142800000
Type
IE-C5ES8VG0150A40A40-E
GTIN (EAN)
4032248925995
Qty.
1 Styk

Dimensions and weights

Längd
15 m
Length (inches)
590,551 inch
Net weight
577,25 g

Temperatures

Storage temperature
-40 °C...75 °C
Operating temperature
-40 °C...80 °C
Installation temperature
0 °C...50 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General standards

Connector standard
IEC 60603-7-51

Struktura kabelu

Arrangement of wire cores
verdrilltes Paar
Complete shielding
Aluminium foil
Shielding braid made from copper wiring
Cross-section
4*2*AWG 26/7 - 4*2*0.128 mm²
Diameter of wire pair
2 mm
Farbsequenz Adern - Adernpaare
white - blue, white - orange, white - green, white - brown
Insulation
PE
Insulation cross-section
1 mm
Material sheath
PVC
Materiál vodiče
Stranded tin-plated copper wire
Number of wires
8
Overlap of shielding braid
65 %
Sheath diameter, max.
6,1 mm
Sheath diameter, min.
5,7 mm
Sheathing colour
green (RAL 6018)
Shielding
SF/UTP
Strands
7
Stärke Schirmgeflecht
0,1 mm
Wire core insulation thickness
0,25 mm

ケーブルの電気プロパティ

Capacity at 1 kHz
47 nF/km
Category
Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Distorsione di propagazione
25 ns/100m
Durée du signal
4,85 ns/m
Impedancja przejścia
10 mΩ/m at 10 MHz
Karakteristisk impedans
100 ± 5 Ω at 100MHz
Resistencia de bucle
290 Ω/km
Resistenza differenziale
3 %
Test voltage: wire-wire-shield
700 V AC

Mechanical and material properties of cable

Abrasion resistance
good
Fire propagation
No
Halogen
Yes
Min. bending radius, once only
5 x cable diameter
Min. bending radius, repetitive
10 x cable diameter
Resistance to spread of flame
in accordance with IEC 60332-1

Plug

Plug left
RJ45, IP20, male contact, straight, Plastic, shielded
Plug right
RJ45, IP20, male contact, straight, Plastic, shielded

Plug, left

Plug left
RJ45, IP20, male contact, straight, Plastic, shielded

Plug, right

Plug right
RJ45, IP20, male contact, straight, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-07
