Properties

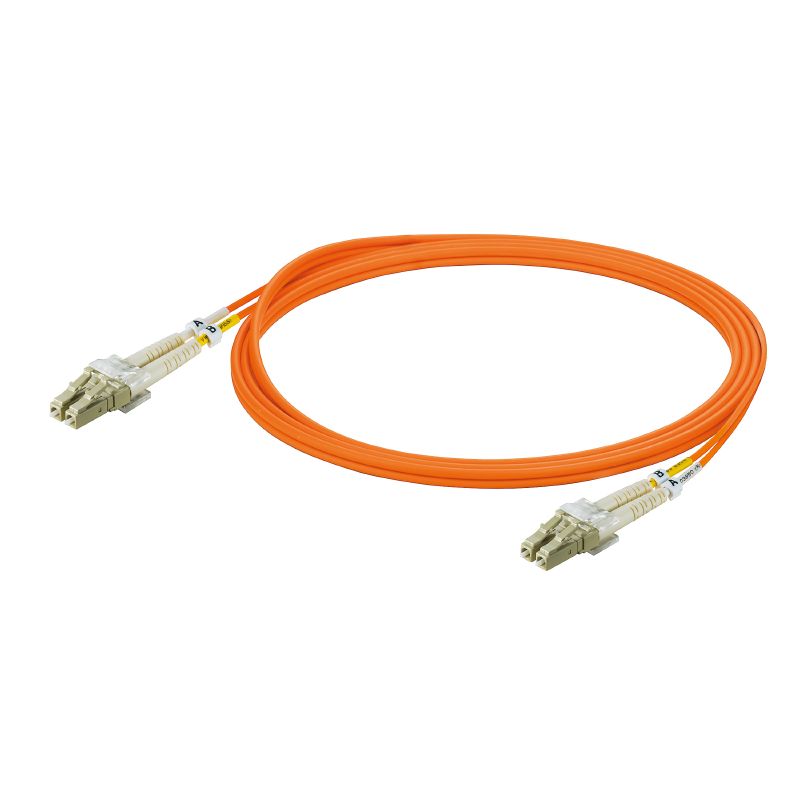

| Version | Patch cable, duplex clip included, LC-Duplex IP 20, LC-Duplex IP 20, 62.5 µm, LSZH, 0.5 m |
| Order No. | 1433930005 |
| Type | IE-FM6Z2LO0005DLD0LD0-X |
| GTIN (EAN) | 4050118242324 |
| Qty. | 1 items |
| Length | 0.5 m |
| Length (inches) | 19.685 inch |
| Net weight | 18 g |
| Operating temperature | -20 °C...70 |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Specification for checking the symmetrical communication cabling | IEC 61935-3 |
| Specification for twisted-pair device connection cables |
IEC 61156-6
DIN EN 50288-4-2 |
| Connector standard | IEC 61754-20 |
| Connector standard | IEC 61754-20 |
| Attenuation |
≤3.1 dB/km at 850 nm
≤0.8 dB/km at 1300 nm |
| Bandwidth |
≥ 200 MHz*km at 850 nm
≥ 600 MHz*km at 1300 nm |
| Fibre type |
GOF
Multimode OM1 |
| Cable layout | ZIPCORD |
| Core diameter | 62.5 µm |
| Material sheath | LSZH |
| Primary coating | 245 µm |
| Sheath diameter | 2.0 * 4.1 mm |
| Sheathing colour | orange |
| Standard designations | I-V(ZN)H |
| Halogen | No |
| Min. bending radius, once only | 20 mm |
| Min. bending radius, repetitive | 40 mm |
| Resistance to spread of flame | IEC 60754-2 |
| Plug left | LC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded |
| Plug right | LC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded |
| Plug left | LC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded |
| Plug right | LC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC002607 |
| ETIM 7.0 | EC002607 |
| ETIM 8.0 | EC002607 |
| ETIM 9.0 | EC002607 |
| ECLASS 9.0 | 27-06-10-03 |
| ECLASS 9.1 | 27-06-10-03 |
| ECLASS 10.0 | 27-06-10-03 |
| ECLASS 11.0 | 27-06-10-03 |
| ECLASS 12.0 | 27-06-10-03 |
| ECLASS 13.0 | 27-06-10-03 |
| ECLASS 14.0 | 27-06-10-03 |
| ROHS | Conform |
