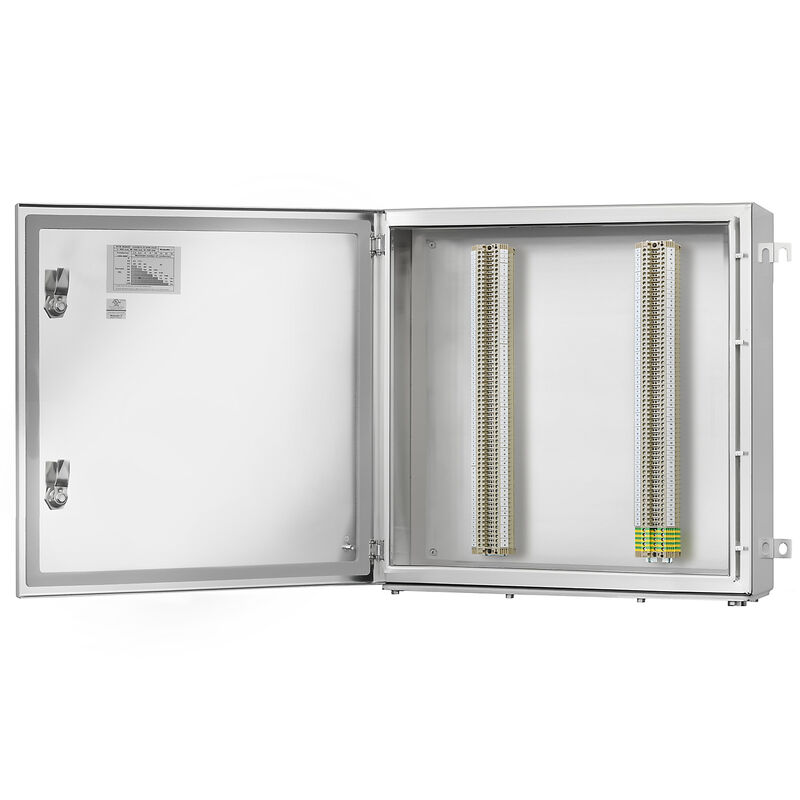

KTB QL 484820 EXE

Klippon TB (Terminal Box), Terminal Box, stainless steel enclosure, Height: 480 mm, Width: 480 mm, Depth: 200 mm, Gland plates: Bottom, Material: Stainless steel 1.4404 (316L), electropolished, silver

Item No. 8000028401

Properties

General ordering data

Version	Klippon TB (Terminal Box), Terminal Box, stainless steel enclosure, Height: 480 mm, Width: 480 mm, Depth: 200 mm, Gland plates: Bottom, Material: Stainless steel 1.4404 (316L), electropolished, silver
Order No.	8000028401
Type	KTB QL 484820 EXE
GTIN (EAN)	4050118649154
Qty.	1 items

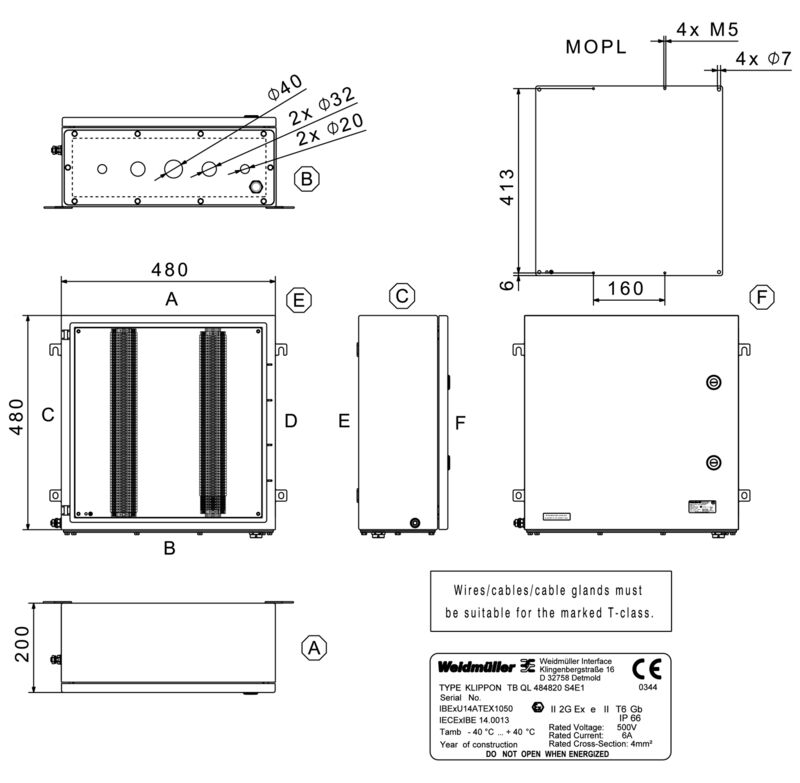

Dimensions and weights

Depth	200 mm
Depth (inches)	7.874 inch
Height	480 mm
Height (inches)	18.898 inch
Width	480 mm
Width (inches)	18.898 inch
Diameter	11 mm
Mounting dimension - height	327 mm
Mounting dimension - width	506 mm
Net weight	19,088.399 g

Temperatures

Ambient temperature

Tamb -40°C...+40°C

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1
SCIP	586e6b8f-a509-420d-b3e1-5602f2434c6c

Certificate numbers enclosure

Certificate no. Terminal Box (ATEX)	IBExU14ATEX1050
Certificate no. Terminal Box (IECEx)	IECEx IBE 14.0013
Identification	Ex eb IIC T6 Gb

vertical assembly

WDU 4 / ZDU 4

1x66
1x59
5 x PE

Housing

Drill holes side A	none
Drill holes side B	2 x M20 2 x M25 1 x M40 1 x BDX
Drill holes side C	none
Drill holes side D	none
Material	Stainless steel 1.4404 (316L)
Material type plate	Polyester coated with aluminium

Downloads

Approval/Certificate/Document of Conformity	[IBEXU14ATEX1050](https://mdcop.weidmueller.com/mediadelivery/asset/900_157701) [IECEXIBE14.0013](https://mdcop.weidmueller.com/mediadelivery/asset/900_157703) [EU Declaration of Conformity - Klippon TB JUnction Box - DoC DE PS270X 160309 001ISS05](https://mdcop.weidmueller.com/mediadelivery/asset/900_199321)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.8000028401)
WSCAD Universe	[WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=8000028401&norm=0)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002503
ETIM 7.0	EC002503
ETIM 8.0	EC002503
ETIM 9.0	EC002503
ECLASS 9.0	27-18-05-02
ECLASS 9.1	27-18-05-02
ECLASS 10.0	27-18-05-02
ECLASS 11.0	27-18-05-02
ECLASS 12.0	27-18-05-02
ECLASS 13.0	27-18-05-02

Approvals

CE; ATEX; IECEX

Accessories

Cable Entry Systems and ComponentsCable GlandsSupplemental accessoriesBlanking plugsPlastic blanking plugs Ex e/i 7 Joule

VP M20 EX SI 7J

Item No.:

2066730000

Packaging unit:

100 PC

VPK EX 7J (Ex blanking plug, plastic, 7J), Blanking plug, in closed state, M 20, 11 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6

Data sheet Downloads

VP M40 EX SI 7J

Item No.:

2066760000

Packaging unit:

20 PC

VPK EX 7J (Ex blanking plug, plastic, 7J), Blanking plug, in closed state, M 40, 18 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6

Data sheet Downloads

VP M25 EX SI 7J

Item No.:

2066740000

Packaging unit:

100 PC

VPK EX 7J (Ex blanking plug, plastic, 7J), Blanking plug, in closed state, M 25, 10 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6

Data sheet Downloads

Cable Entry Systems and ComponentsCable GlandsSupplemental accessoriesLocknutsPlastic lock nuts, black

SKMU M25 K SW

Item No.:

1736940000

Packaging unit:

25 PC

SKMU PA (plastic locknut), Locknut, M 25, 6 mm, Polyamid 6 (PA6 - GF30)

Data sheet Downloads

SKMU M20 K SW

Item No.:

1736930000

Packaging unit:

100 PC

SKMU PA (plastic locknut), Locknut, M 20, 6 mm, Polyamid 6 (PA6 - GF30)

Data sheet Downloads

SKMU M40 K SW

Item No.:

1736960000

Packaging unit:

10 PC

SKMU PA (plastic locknut), Locknut, M 40, 7 mm, Polyamid 6 (PA6 - GF30)

Data sheet Downloads

Enclosure Systems and ComponentsSteel enclosuresKlippon® TBAccessories - Klippon® TBMounting plates480 x 480mm

KTB MOPL 4848 S2N

Item No.:

1193870000

Packaging unit:

1 PC

Klippon TB (Terminal Box), Mounting plate, Height: 425 mm, Width: 419 mm, Depth: 1.5 mm, Material: Stainless steel 1.4301 (304), untreated, silver

Data sheet Downloads

Enclosure Systems and ComponentsSteel enclosuresKlippon® TBAccessories - Klippon® TBEarthing stud

PEBZ M10 KTB S4 SET

Item No.:

1192690000

Packaging unit:

1 PC

Klippon TB (Terminal Box), Earthing stud, Miscellaneous, Height: 21 mm, Width: 21 mm, Depth: 48.7 mm, Material: Stainless steel 1.4404, untreated, silver

Data sheet Downloads

Cable Entry Systems and ComponentsCable GlandsCable glands for hazardous areas - ExPlastic cable glands - Ex e with 7 JouleSilicone seal material, -60°C - +70°C

VG M25 EXE 12-17 SI7J G4

Item No.:

2722130000

Packaging unit:

50 PC

VG Exe 7J (Ex plastic cable gland 7J Exe), Cable glands, straight, M 25, 10 mm, OD min. 12 - OD max. 17 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6

Data sheet Downloads

VG M20 EXE 7-12 SI7J G4

Item No.:

2722100000

Packaging unit:

50 PC

VG Exe 7J (Ex plastic cable gland 7J Exe), Cable glands, straight, M 20, 10 mm, OD min. 7 - OD max. 12 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6

Data sheet Downloads

VG M40 EXE 20-28 SI7J G4

Item No.:

2722170000

Packaging unit:

15 PC

VG Exe 7J (Ex plastic cable gland 7J Exe), Cable glands, straight, M 40, 10 mm, OD min. 20 - OD max. 28 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6

Data sheet Downloads

VG M25 EXE 14-18 SI7J G4

Item No.:

2722140000

Packaging unit:

25 PC

VG Exe 7J (Ex plastic cable gland 7J Exe), Cable glands, straight, M 25, 10 mm, OD min. 14 - OD max. 18 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6

Data sheet Downloads

VG M40 EXE 23-32 SI7J G4

Item No.:

2722180000

Packaging unit:

10 PC

VG Exe 7J (Ex plastic cable gland 7J Exe), Cable glands, straight, M 40, 18 mm, OD min. 23 - OD max. 32 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6

Data sheet Downloads

VG M20 EXE 7-13 SI7J G4

Item No.:

2722110000

Packaging unit:

50 PC

VG Exe 7J (Ex plastic cable gland 7J Exe), Cable glands, straight, M 20, 10 mm, OD min. 7 - OD max. 13 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6

Data sheet Downloads

VG M20 EXE 11-14 SI7J G4

Item No.:

2722120000

Packaging unit:

50 PC

VG Exe 7J (Ex plastic cable gland 7J Exe), Cable glands, straight, M 20, 10 mm, OD min. 11 - OD max. 14 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), Polyamide 6

Data sheet Downloads

Enclosure Systems and ComponentsSteel enclosuresKlippon® TBAccessories - Klippon® TBGland platesGland plates made out of stainless steel - 3 mmGland plates without earthing studs

KTB GP 484820 AB S4

Item No.:

1281130000

Packaging unit:

1 PC

Klippon TB (Terminal Box), flange plate, straight, Height: 470 mm, Width: 167 mm, Depth: 3 mm, Gland plates: top, Bottom, Material: Stainless steel 1.4404, electropolished, silver

Data sheet Downloads

Cable Entry Systems and ComponentsCable GlandsSupplemental accessoriesLocknutsStainless Steel lock nuts, natural finish

SKMUS M40-W

Item No.:

1185720000

Packaging unit:

144 PC

SKMU SS (stainless steel locknut), Locknut, M 40, 3.8 mm, Stainless steel 1.4404

Data sheet Downloads

SKMUS M20-W

Item No.:

1185690000

Packaging unit:

240 PC

SKMU SS (stainless steel locknut), Locknut, M 20, 2.2 mm, Stainless steel 1.4404

Data sheet Downloads

SKMUS M25-W

Item No.:

1185700000

Packaging unit:

240 PC

SKMU SS (stainless steel locknut), Locknut, M 25, 2.2 mm, Stainless steel 1.4404

Data sheet Downloads

Enclosure Systems and ComponentsSteel enclosuresKlippon® TBAccessories - Klippon® TBType label holder

TPSDHA KTB 130X50 S2 R

Item No.:

1283450000

Packaging unit:

1 PC

Klippon TB (Terminal Box), Ratings plate holder, Riveted, Height: 50 mm, Width: 171 mm, Depth: 16.5 mm, Material: Stainless steel 1.4301, Mirror polished, silver

Data sheet Downloads

TPSDHA KTB 70X70M3 S2 R

Item No.:

1279320000

Packaging unit:

1 PC

Klippon TB (Terminal Box), Ratings plate holder, Riveted, Height: 70 mm, Width: 70 mm, Depth: 20 mm, Material: Stainless steel 1.4301, Mirror polished, silver

Data sheet Downloads

TPSDHA KTB 100X25 S2 2R

Item No.:

1257640000

Packaging unit:

1 PC

Klippon TB (Terminal Box), Ratings plate holder, Riveted, Height: 25 mm, Width: 141 mm, Depth: 16.5 mm, Material: Stainless steel 1.4301, Mirror polished, silver

Data sheet Downloads

Enclosure Systems and ComponentsSteel enclosuresKlippon® TBAccessories - Klippon® TBGland platesGland plates made out of stainless steel - 6 mm

KTB GP 484820 AB S4 6MM

Item No.:

1256550000

Packaging unit:

1 PC

Klippon TB (Terminal Box), flange plate, straight, Height: 470 mm, Width: 167 mm, Depth: 6 mm, Gland plates: top, Bottom, Material: Stainless steel 1.4404, electropolished, silver

Data sheet Downloads

Enclosure Systems and ComponentsSteel enclosuresKlippon® TBAccessories - Klippon® TBDocument holders

DOHA KTB A5 S2 R

Item No.:

1252750000

Packaging unit:

1 PC

Klippon TB (Terminal Box), Document holders, Riveted, Height: 150 mm, Width: 180 mm, Depth: 20 mm, Material: Stainless steel 1.4301, Mirror polished, silver

Data sheet Downloads

DOHA KTB A6 S2 R

Item No.:

1252780000

Packaging unit:

1 PC

Klippon TB (Terminal Box), Document holders, Riveted, Height: 110 mm, Width: 130 mm, Depth: 20 mm, Material: Stainless steel 1.4301, Mirror polished, silver

Data sheet Downloads

DOHA KTB A4 S2 R

Item No.:

1252730000

Packaging unit:

1 PC

Klippon TB (Terminal Box), Document holders, Riveted, Height: 200 mm, Width: 240 mm, Depth: 20 mm, Material: Stainless steel 1.4301, Mirror polished, silver

Data sheet Downloads

Cable Entry Systems and ComponentsCable GlandsSupplemental accessoriesBlanking plugsStainless Steel blanking plugs, VP HEX head Ex e/d

VPS-HEX M25-EX W

Item No.:

1219040000

Packaging unit:

16 PC

VP-HEX (Klippon Ex blanking plug with hexagon head), Blanking plug, straight, M 25 x 1.5, 16 mm, Stainless steel 1.4404

Data sheet Downloads

VPS-HEX M20-EX W

Item No.:

1219030000

Packaging unit:

24 PC

VP-HEX (Klippon Ex blanking plug with hexagon head), Blanking plug, straight, M 20 x 1.5, 16 mm, Stainless steel 1.4404

Data sheet Downloads

VPS-HEX M40-EX W

Item No.:

1219060000

Packaging unit:

9 PC

VP-HEX (Klippon Ex blanking plug with hexagon head), Blanking plug, straight, M 40 x 1.5, 16 mm, Stainless steel 1.4404

Data sheet Downloads
