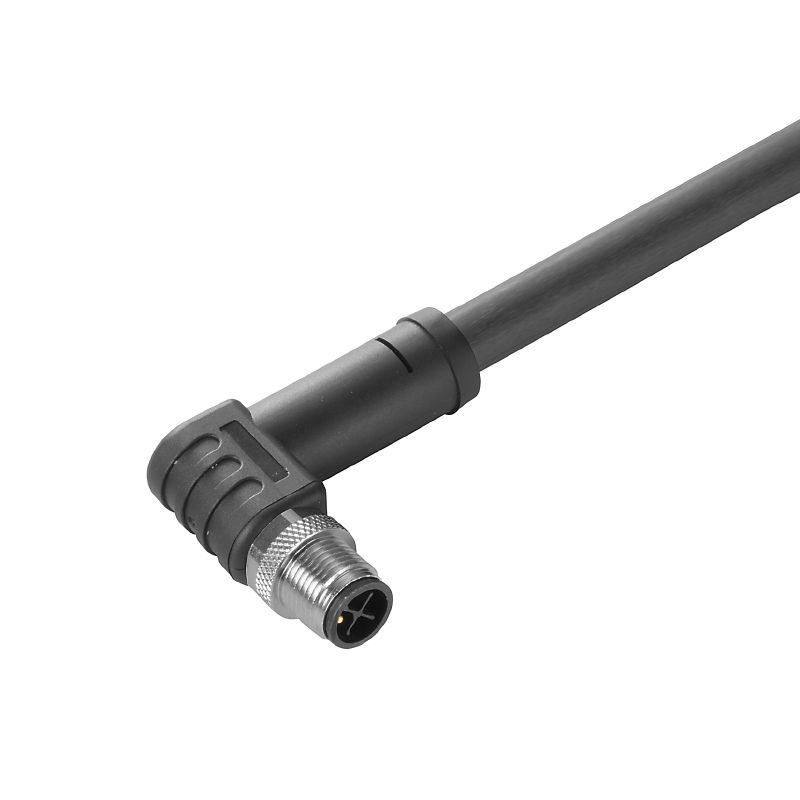

SAIL-M12W-S3-3.0P
Power cable, One end without connector, M12, Number of poles : 3 (2 + PE), 3 m, pin, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Item No.
2050050300
Properties
| Product type | Power cable |
| Sheathing colour | black |
| Version | Power cable, One end without connector, M12, Number of poles : 3 (2 + PE), 3 m, pin, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No |
| Order No. | 2050050300 |
| Type | SAIL-M12W-S3-3.0P |
| GTIN (EAN) | 4050118441093 |
| Qty. | 1 items |
| Net weight | 200 g |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | e8d8af70-4c85-4483-bc8c-9bc5b598e2a9 |
| Acceleration | 5 m/s² |
| Bending cycles | 10 Mio |
| Bending radius, min., moving | 7.5 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 3 m |
| Colour coding |
blue
brown Green/yellow |
| Configurable cable length | No |
| Core cross-section | 1.5 mm² |
| Halogen | No |
| Insulation | PP |
| Irradiation crosslinked | No |
| Number of poles | 3 (2 + PE) |
| Outer cladding in accordance with UL AWM style | 20234 (80 °C / 1000 V) |
| Outside diameter | 8.5 mm ± 0.3 mm |
| PE function | Yes |
| Resistant to welding beads | No |
| Sheath material | PUR |
| Sheathing colour | black |
| Shielded | No |
| Speed | 5 m/s |
| Suitable for cable carriers | Yes |
| Temperature range, moving | -40...80 °C |
| Temperature range, stationary | -50...80 °C |
| Welding spark resistance | No |
| AF size | 13 mm |
| Coding | S-coded |
| Connection thread | M12 |
| Contact surface | Gold-plated |
| Housing main material | PUR |
| Insulation strength | 108 Ω |
| LED | No |
| Plugging cycles | ≥ 100 |
| Pollution severity | 3 |
| Protection degree |
IP67
when screwed in |
| Rated current | 12 A |
| Rated voltage | 600 V |
| Temperature range of housing | -40 … +85 ° C |
| Tightening torque | M12: 0.8 - 1.2 Nm |
| Version | pin, 90° |
| Insulation strength | 108 Ω |
| Rated voltage | 600 V |
| Certificate no. (cULus) | E310075 |
| Connector standard | IEC 61076-2-111 |
| Connector standard | IEC 61076-2-111 |
| Plug left | M12, S-coded, IP67, male contact, angled 90°, Plastic, unshielded |
| Plug right | free conductor end |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_212031) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2050050300) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 9.0 | EC001855 |
| ECLASS 9.0 | 27-06-03-11 |
| ECLASS 9.1 | 27-06-03-11 |
| ECLASS 10.0 | 27-06-03-11 |
| ECLASS 11.0 | 27-06-03-11 |
| ECLASS 12.0 | 27-06-03-11 |
| ECLASS 13.0 | 27-06-03-11 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E310075 |
