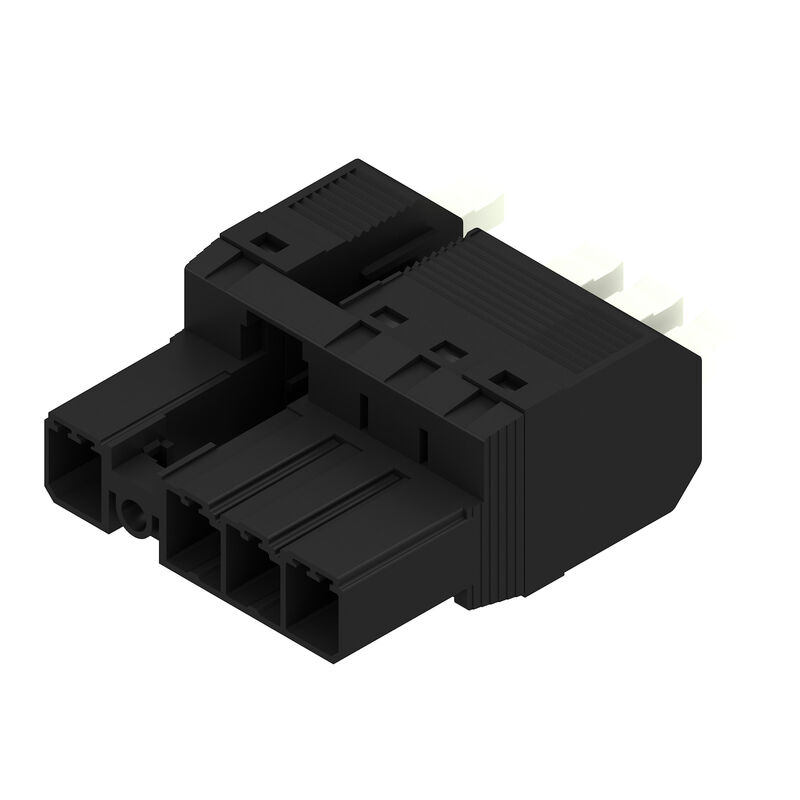

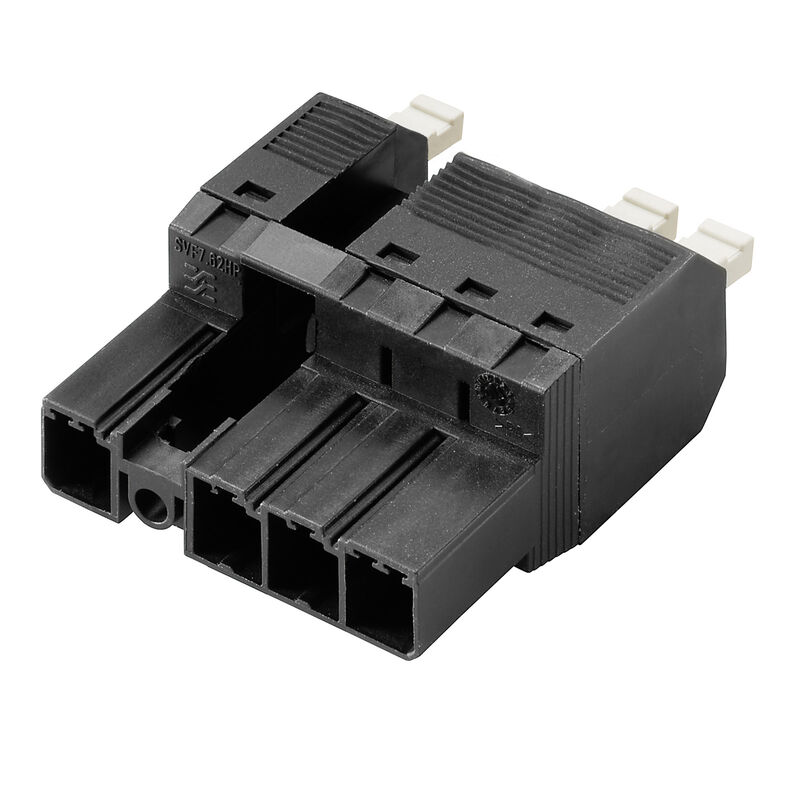

Product image
SVFL 7.62HP/04/180MF4 SN BK BX

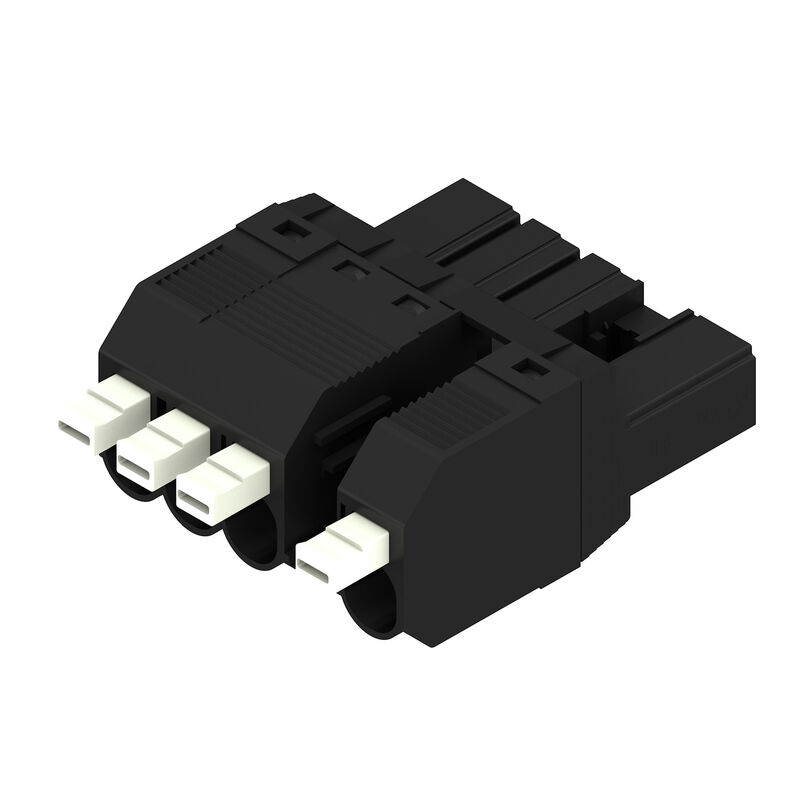

Product image
SVFL 7.62HP/04/180MF4 SN BK BX

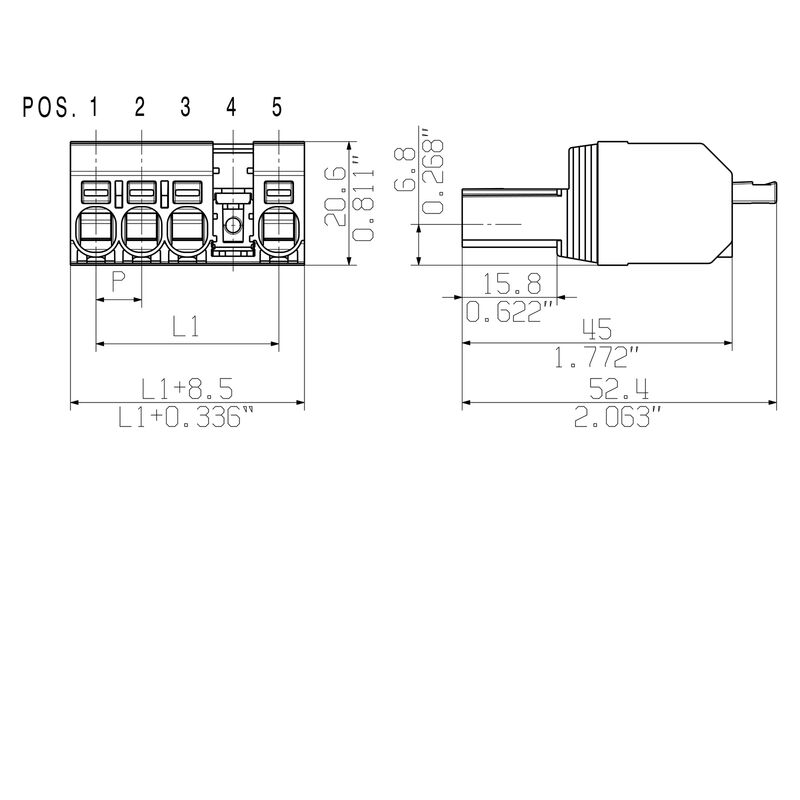

Dimensional drawing
Similar to illustration
SVFL 7.62HP/04/180MF4 SN BK BX
Connection diagram
Similar to illustration
SVFL 7.62HP/04/180MF4 SN BK BX
Product benefits
Secure connection of small conductors
PUSH IN WIRE READY

SVFL 7.62HP/04/180MF4 SN BK BX

PCB plug-in connector, male plug, 7.62 mm, Number of poles: 4, 180°, PUSH IN with actuator, Clamping range, max. : 6 mm², Box

Ürün No. 2630470000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 2 İlgili ürünler 10
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
PCB plug-in connector, male plug, 7.62 mm, Number of poles: 4, 180°, PUSH IN with actuator, Clamping range, max. : 6 mm², Box
Order No.
2630470000
Type
SVFL 7.62HP/04/180MF4 SN BK BX
GTIN (EAN)
4050118634112
Qty.
48 adet
Product data
IEC: 1000 V / 41 A / 0.5 - 6 mm²
UL: 600 V / 36 A / AWG 24 - AWG 10
Packaging
Box

Dimensions and weights

Depth
47,7 mm
Depth (inches)
1,878 inch
Height
23,4 mm
Height (inches)
0,921 inch
Width
38,98 mm
Width (inches)
1,535 inch
Net weight
21,706 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Famille de produits
OMNIMATE Power - series BV/SV 7.62HP
Type de raccordement
Field connection
Técnica de conexión de conductores
PUSH IN with actuator
Pitch in mm (P)
7,62 mm
Pitch in inches (P)
0,3 "
Conductor outlet direction
180°
Nombre de pôles
4
L1 in mm
30,48 mm
L1 en pulgadas
1,2 "
Nombre de séries
1
Nombre de pôles
1
Protection au toucher selon DIN VDE 57 106
Safe from finger touch
Érintésvédelem a DIN VDE 0470 szerint
IP20 plugged
IP20
Resistenza di passaggio
4.50 mΩ
Can be coded
Yes
Stripping length
12 mm
Tightening torque for screw flange, min.
0,2 Nm
Screwdriver blade
0.6 x 3.5
Plugging cycles
25

Material data

Insulating material
PA GF
Colour
black
Colour of operational elements
white
Colour chart (similar)
RAL 9011
Insulating material group
II
Comparative Tracking Index (CTI)
≥ 500
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of plug contact
4...6 µm Sn glossy
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
125 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
125 °C

Conductors suitable for connection

Clamping range, min.
0,5 mm²
Clamping range, max.
6 mm²
Solid, min. H05(07) V-U
0,5 mm²
Solid, max. H05(07) V-U
6 mm²
Flexible, min. H05(07) V-K
0,5 mm²
Flexible, max. H05(07) V-K
6 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
1,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
6 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
1,5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
6 mm²
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0186100000
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9019170000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      4 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0244100000
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9019200000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      6 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0191900000
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      0533500000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        15 mm
    • Recommended wire-end ferrule:
      9019140000
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9004060000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
41 A
Rated current, max. number of poles (Tu=20°C)
41 A
Rated current, min. number of poles (Tu=40°C)
41 A
Rated current, max. number of poles (Tu=40°C)
41 A
Rated voltage for surge voltage class / pollution degree II/2
1 000 V
Rated voltage for surge voltage class / pollution degree III/2
800 V
Rated voltage for surge voltage class / pollution degree III/3
800 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
8 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
8 kV
Short-time withstand current resistance
3 x 1s with 420 A
Clearance, min.
12,7 mm
Creepage distance, min.
12,7 mm

Rated data acc. to CSA

Tensión nominal (Use Group B / CSA)
600 V
Rated voltage (Use group C / CSA)
600 V
Rated voltage (Use group D / CSA)
600 V
Rated current (Use group B / CSA)
35 A
Rated current (Use group C / CSA)
35 A
Rated current (Use group D / CSA)
5 A
przekrój przyłącza przewodu AWG, min.
AWG 24
przekrój przyłącza przewodu AWG, maks.
AWG 10

Rated data acc. to UL 1059

Institut (cURus)
CURUS
Certificate No. (cURus)
E60693
Tensión nominal (Use Group B / UL 1059)
600 V
Tension nominale (groupe d'utilisation C / UL 1059)
600 V
Tension nominale (groupe d'utilisation D / UL 1059)
600 V
Rated current (Use group B / UL 1059)
36 A
Courant nominal (groupe d'utilisation C / UL 1059)
36 A
Corrente nominale (Gruppo D / UL 1059)
5 A
와이어 단면적, AWG, 최소
AWG 24
Wire cross-section, AWG, max.
AWG 10
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
338 mm
VPE width
130 mm
VPE height
54 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule with plastic collar to DIN 46228/4
  • Wire end ferrule without plastic collar to DIN 46228/1
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Additional pole combinations on request
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
