Properties
| Order No. | 2593170000 |

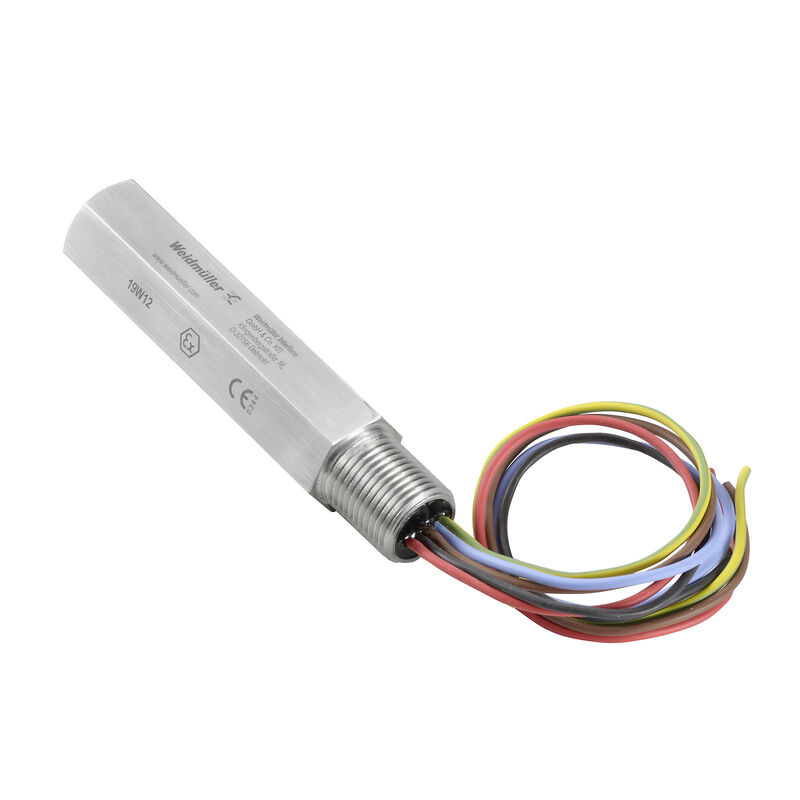

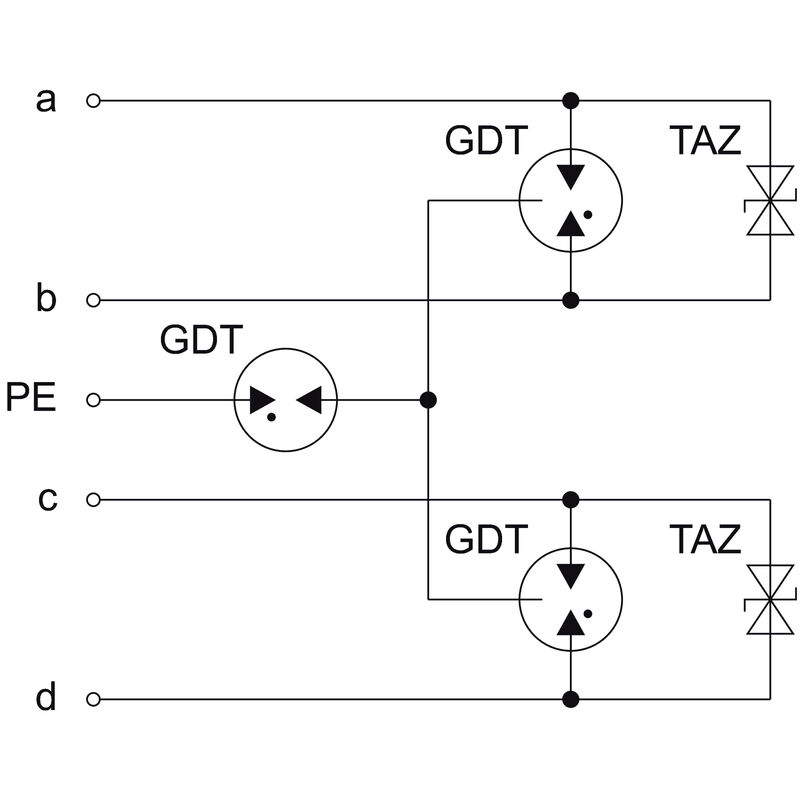

| Type | VCG 24V EX 4 G 1/2 |
| GTIN (EAN) | 4050118605150 |
| Qty. | 1 items |
| Height of lowest version | 96 mm |
| Width | 24 mm |
| Width (inches) | 0.945 inch |
| Length | 120 mm |
| Length (inches) | 4.724 inch |
| Diameter | 28 mm |
| Net weight | 300 g |
| Storage temperature | -30 °C...60 °C |
| Operating temperature | -30 °C...60 °C |
| ATEX - dust labelling |
IEC Ex BAS 18.0085X
Ex ia IIIC T85 °C Da (-30 °C≤Ta≤50 °C) |
| ATEX - gas labelling |
18ATEX0141X
II 1GD Ex ia II T6 Ga (-30 °C≤Ta≤50 °C) |
| Input power, max. PI | 2 W |
| Input voltage, max. Ui | 50 V |
| Input current, max. Ii | 0.8 A |
| Internal capacity, max. CI | 0 nF |
| Internal inductance, max. LI | 60 µH |
| Colour | silver |
| Design |
straight
G 1/2 (BSP 1/2) |
| FIELD BUS FOUNDATION BUS H1 compatible | According to IEC 61158-2 |
| Protection degree | IP67 |
| Segment | Measurement - Monitoring - Setting |
| Version | Stainless steel screw mounting housing |
| Dielectric strength at FG against PE | ≥ 500 V |
| Discharge current Imax (8/20µs) wire-PE | 20 kA |
| Discharge current Imax (8/20µs) wire-wire | 20 kA |
| Discharge current In (8/20µs) wire-PE | 10 kA |
| Discharge current In (8/20µs) wire-wire | 10 kA |
| Frequency range, max. | 30 MHz |
| Frequency range, min. | 0 Hz |
| Input voltage, max. Ui | 50 V |
| Insertion loss | 30 MHz |
| Lightning test current, Iimp (10/350 µs) Wire-PE | 2 kA |
| Lightning test current, Iimp (10/350 µs) wire-wire | 2 kA |
| Protection level UP (typ.) | < 1300 V |
| Protection level, UP wire - PE | 864 V |
| Protection level, UP wire - wire | 44 V |
| Rated voltage (DC) | 24 V |
| Rated voltage (DC), max. | 33 V |
| Requirements category acc. to IEC 61643-21 |
D1
C1 C2 C3 |
| Response time | < 1 ns |
| Standards |
IEC 61643-21
IEC 60079-0 IEC 60079-11 |
| Cross-section | 1 mm² |
| Wire connection method | Cable length: 250 mm (min.) |
| ATEX - dust labelling |
IEC Ex BAS 18.0085X
Ex ia IIIC T85 °C Da (-30 °C≤Ta≤50 °C) |
| ATEX - gas labelling |
18ATEX0141X
II 1GD Ex ia II T6 Ga (-30 °C≤Ta≤50 °C) |
| Time interval | 5 years |
| Approval/Certificate/Document of Conformity |
[IECEX](https://mdcop.weidmueller.com/mediadelivery/asset/900_96556)
[ATEX](https://mdcop.weidmueller.com/mediadelivery/asset/900_96557) [EU_Konformitätserklärung / EU_Declaration_of_Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_79208) |
| User Documentation | [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_79196) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000943 |
| ETIM 7.0 | EC000943 |
| ETIM 8.0 | EC000943 |
| ETIM 9.0 | EC000943 |
| ECLASS 9.0 | 27-13-08-07 |
| ECLASS 9.1 | 27-13-08-07 |
| ECLASS 10.0 | 27-13-08-07 |
| ECLASS 11.0 | 27-13-08-07 |
| ECLASS 12.0 | 27-17-90-90 |
| ECLASS 13.0 | 27-17-90-90 |
| Approvals |     |
| ROHS | Conform |
