Egenskaber
| Version | WAVESERIES, Voltage monitoring, 1 x three-phase (R, S, T, N), 250 V, Screw connection |
| Order No. | 8705630000 |
| Type | WAS2 VMR 3PH |
| GTIN (EAN) | 4032248377060 |
| Qty. | 1 Styk |
| Delivery status | This article will no longer be available in the future. |
| Available until | 31.12.2022 |
| Alternative product | [7760054165](~/p/7760054165) |
| Depth | 112,4 mm |
| Depth (inches) | 4,425 inch |
| Width | 22,5 mm |
| Width (inches) | 0,886 inch |
| Length | 96,5 mm |
| Length (inches) | 3,799 inch |
| Net weight | 120,6 g |
| Storage temperature | -25 °C...85 °C |
| Operating temperature | 0 °C...70 °C |
| Humidity at operating temperature | 0...95 % (no condensation) |
| SIL in compliance with IEC 61508 | None |
| MTTF | 493 a |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | b25f3b7c-b874-4a4e-a8b2-4f423a7e2a65 |
| Input frequency | 50...60Hz |
| Input voltage |
80…250 V AC/DC 3~
200...400 V AC/DC |
| Number of inputs | 1 x three-phase (R, S, T, N) |

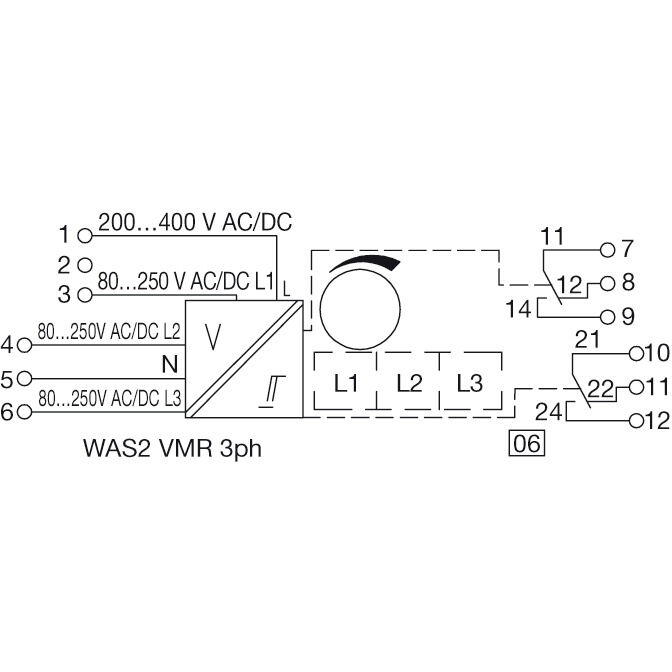

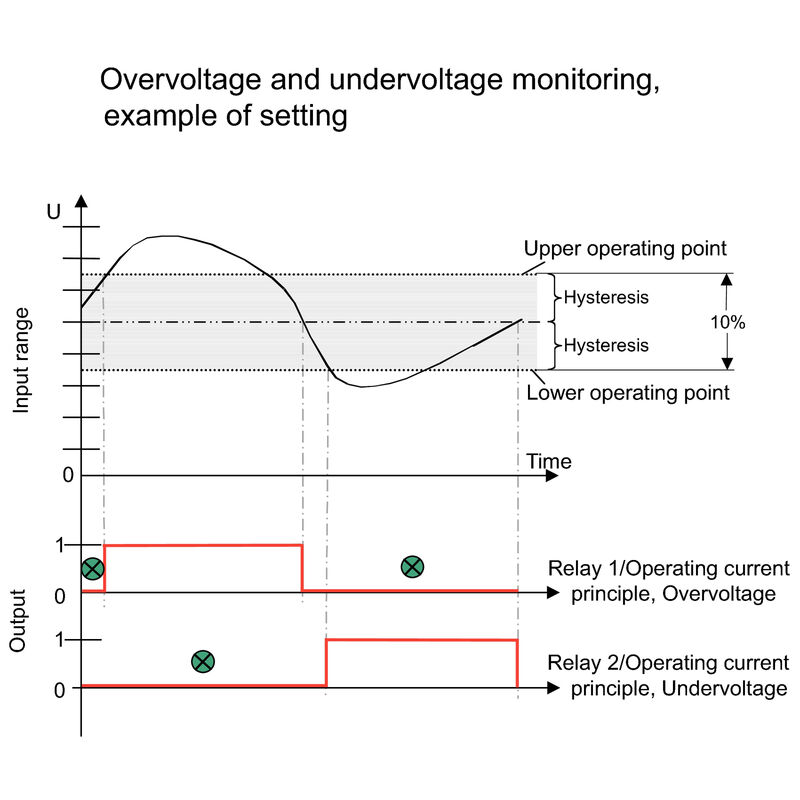

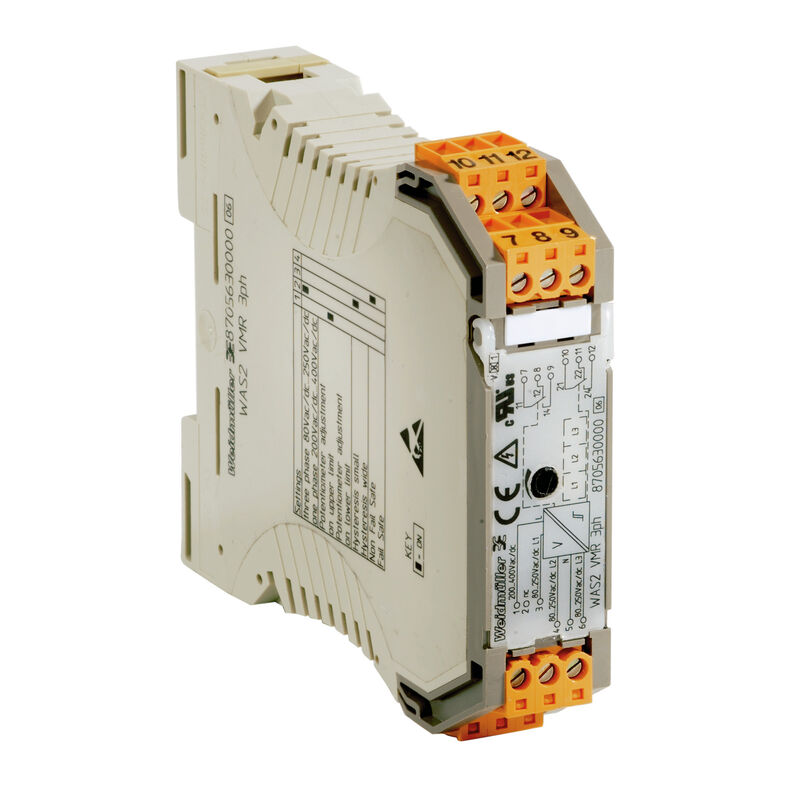

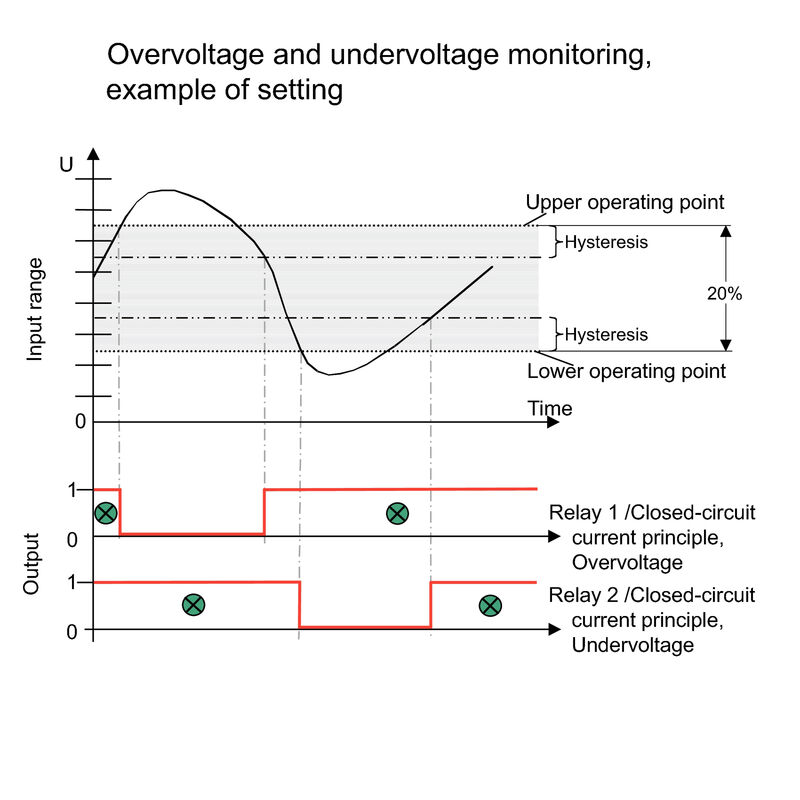

| Alarm function |
configurable
Surge voltage Undervoltage Hysteresis: 10 V |
| Continuous current | 3 A |
| Max. switching voltage, AC | 0 V |
| Rated switching current | 0.1 A |
| Type | 2 CO contacts |
| Configuration |
DIP switch and potentiometer
Alarm status reset via reset input or button |
| Galvanic isolation | 3-way isolator |
| Protection degree | IP20 |
| Rail | TS 35 |
| Repeat accuracy | <0.3 % of set range |
| Step response time | <300 ms |
| Temperature coefficient | ≤ 300 ppm/K |
| Voltage supply | from the measuring circuit |
| EMC standards | EN 61000-6-1, 2, 3, 4 |
| Galvanic isolation | 3-way isolator |
| Impulse withstand voltage | 6 kV |
| Insulation voltage | 4 kVeff / 1 min. |
| Pollution severity | 2 |
| Rated voltage | 600 V |
| Surge voltage category | III |
| Type of connection | Screw connection |
| Clamping range, rated connection | 2,5 mm² |
| Clamping range, min. | 0,5 mm² |
| Clamping range, max. | 2,5 mm² |
| Product information |
This product will soon be replaced by a new product. Please do not use with new systems. Please contact our technical support. |
| Approval/Certificate/Document of Conformity | [Application notes -- Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37670) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_206170) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8705630000) |
| User Documentation | [Device description -- Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_35784) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002653 |
| ETIM 7.0 | EC002653 |
| ETIM 8.0 | EC002653 |
| ETIM 9.0 | EC002653 |
| ECLASS 9.0 | 27-21-01-20 |
| ECLASS 9.1 | 27-21-01-20 |
| ECLASS 10.0 | 27-21-01-20 |
| ECLASS 11.0 | 27-21-01-20 |
| ECLASS 12.0 | 27-21-01-20 |
| ECLASS 13.0 | 27-21-01-20 |
| ECLASS 14.0 | 27-21-01-20 |
| Long specification |
Limit-value monitoring component for 1- /3- phase AC and DC voltages Add-on housing for TS35 rail mounting Secure isolation EN 50178, 2-way isolation up to 6 kV Type WA5 VMR 3ph |
| Short specification |
Limit-value monitoring component for 1- /3- phase AC and DC voltages |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
