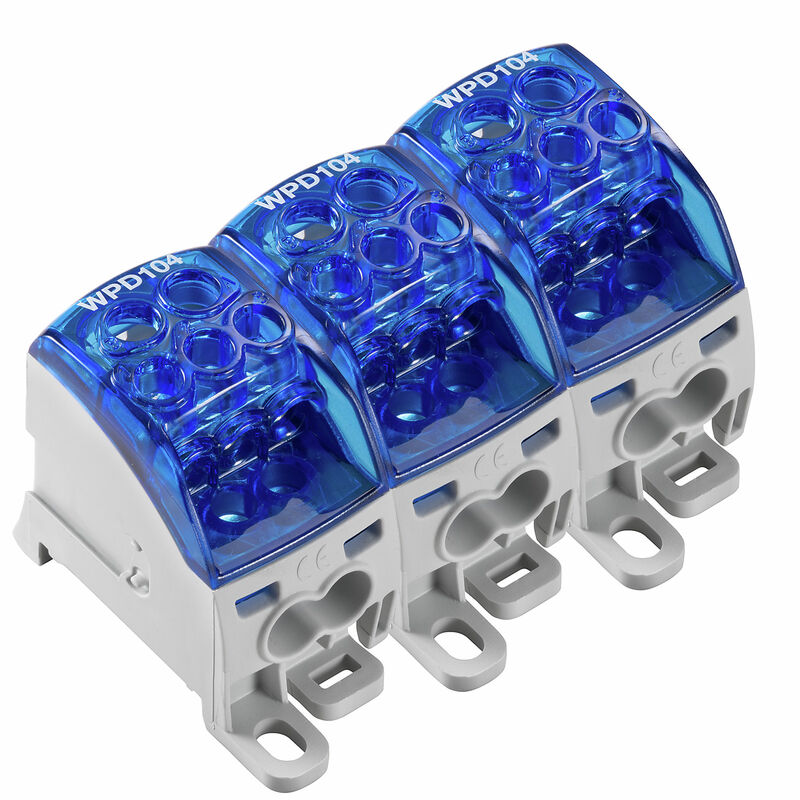

WPD 304 3X25/6X16+9X10 3XBL

Potential distributor terminal, Screw connection, blue, 25 mm², 164 A, 1000 V, Number of connections: 18, Number of levels: 1, Mounting plate, TS 35, V-0, Wemid

Item No. 2518340000

Properties

General ordering data

Version	Potential distributor terminal, Screw connection, blue, 25 mm², 164 A, 1000 V, Number of connections: 18, Number of levels: 1, Mounting plate, TS 35, V-0, Wemid
Order No.	2518340000
Type	WPD 304 3X25/6X16+9X10 3XBL
GTIN (EAN)	4050118536942
Qty.	1 items

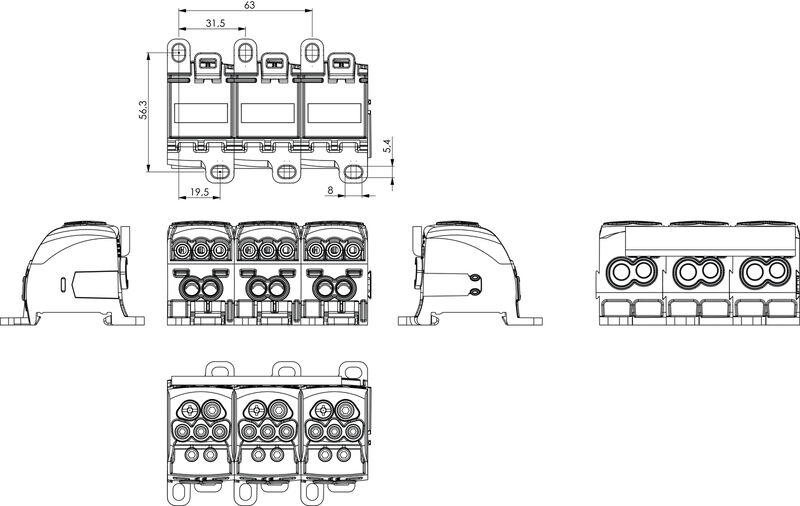

Dimensions and weights

Depth	49 mm
Depth (inches)	1.929 inch
Height	68 mm
Height (inches)	2.677 inch
Width	94.5 mm
Width (inches)	3.72 inch
Net weight	305 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c
REACH SVHC	Lead 7439-92-1
SCIP	9b5f0838-1f0b-4c14-9fc7-3f5e6ee75be2

Material data

Material	Wemid
Colour	blue
UL 94 flammability rating	V-0

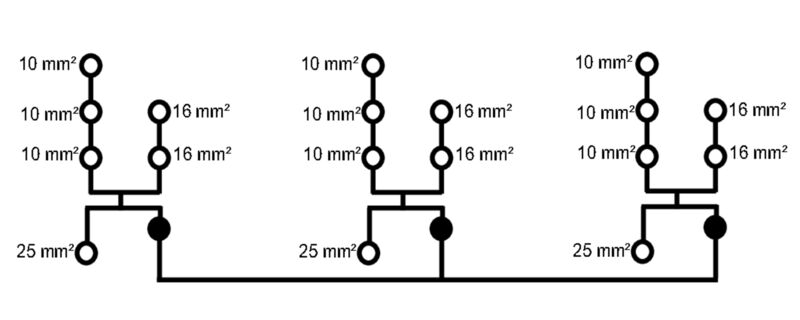

System specifications

Version	Screw connection
End cover plate required	No
Number of potentials	3
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	3
Levels cross-connected internally	Yes
Rail	Mounting plate TS 35
PE function	No
PEN function	No

Additional technical data

Explosion-tested version	Yes
Installation advice	Terminal rail / mounting plate
Open sides	closed
Type of mounting	Snap-on

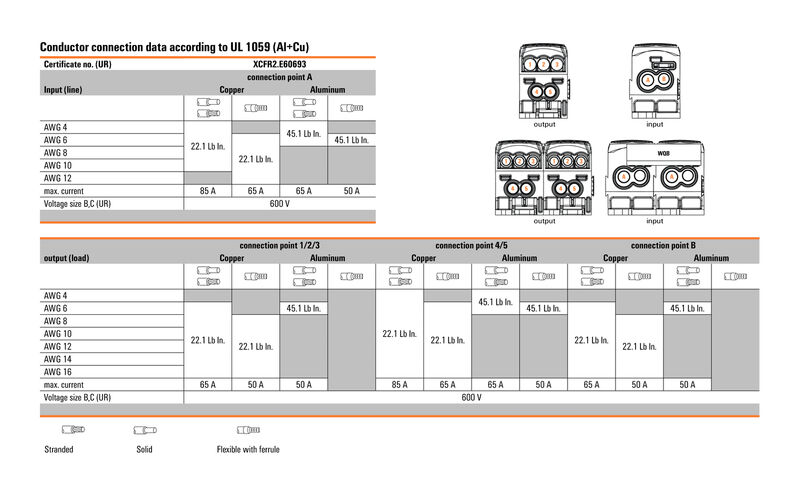

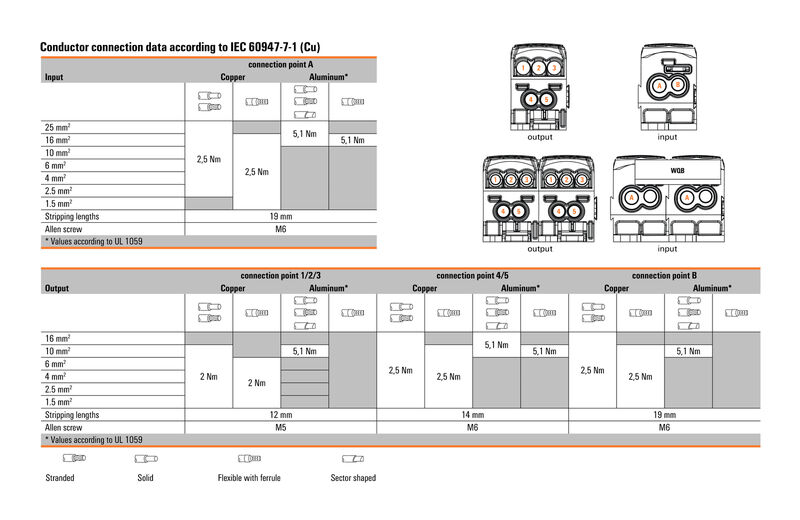

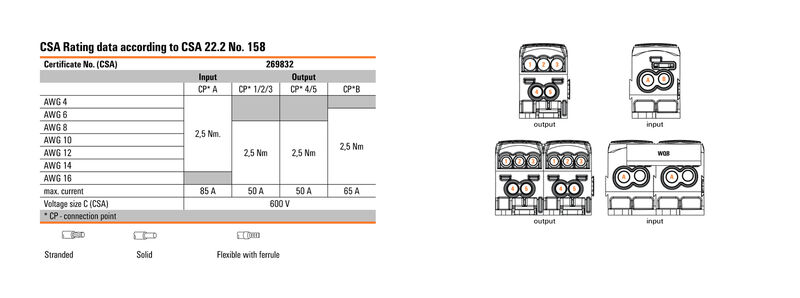

Conductors for clamping (additional connection)

Connection type, additional connection

Screw connection

Conductors for clamping (rated connection)

Connection cross-section, stranded, max.	25 mm²
Connection direction	on side
Number of connections	18
Type of connection	Screw connection
Type of connection 2	Screw connection
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	16 mm²
Wire connection cross-section, solid core, max.	25 mm²

General

Installation advice	Terminal rail / mounting plate
Number of poles	3
Rail	Mounting plate TS 35
Standards	IEC 60947-7-1 UL 1059

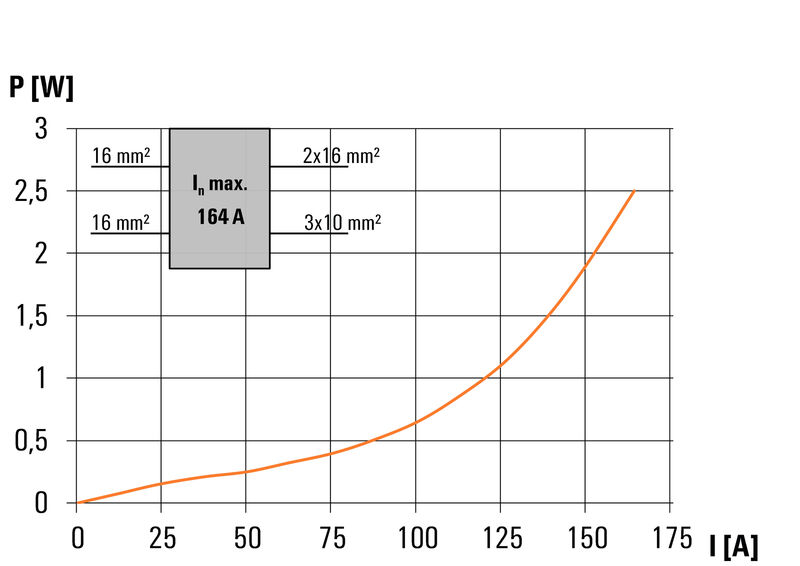

Rating data

Rated cross-section	25 mm²
Rated voltage	1,000 V
Rated AC voltage	1,000 V
Rated DC voltage	1,000 V
Rated current	164 A
Standards	IEC 60947-7-1 UL 1059

Important note

Product information

The socket complies with flammability class V-2 according to UL94.

Downloads

Approval/Certificate/Document of Conformity	[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_79201) [UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253936) [CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89230) [DNV Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_320351) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66283)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2518340000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2518340000)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) [DATA SHEET WPD 304](https://mdcop.weidmueller.com/mediadelivery/asset/900_89341) [Manual - How to connect aluminum wires in WPD-Terminal blocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_317919) [Torque_Conductor_Connection_Data_WPD_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_319361) [Drehmoment_Leiteranschlussdaten_WPD_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_319362)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC000897
ETIM 7.0	EC000897
ETIM 8.0	EC000897
ETIM 9.0	EC000897
ECLASS 9.0	27-14-11-20
ECLASS 9.1	27-14-11-20
ECLASS 10.0	27-14-11-20
ECLASS 11.0	27-14-11-20
ECLASS 12.0	27-14-11-20
ECLASS 13.0	27-25-01-19
ECLASS 14.0	27-25-01-19
