Properties

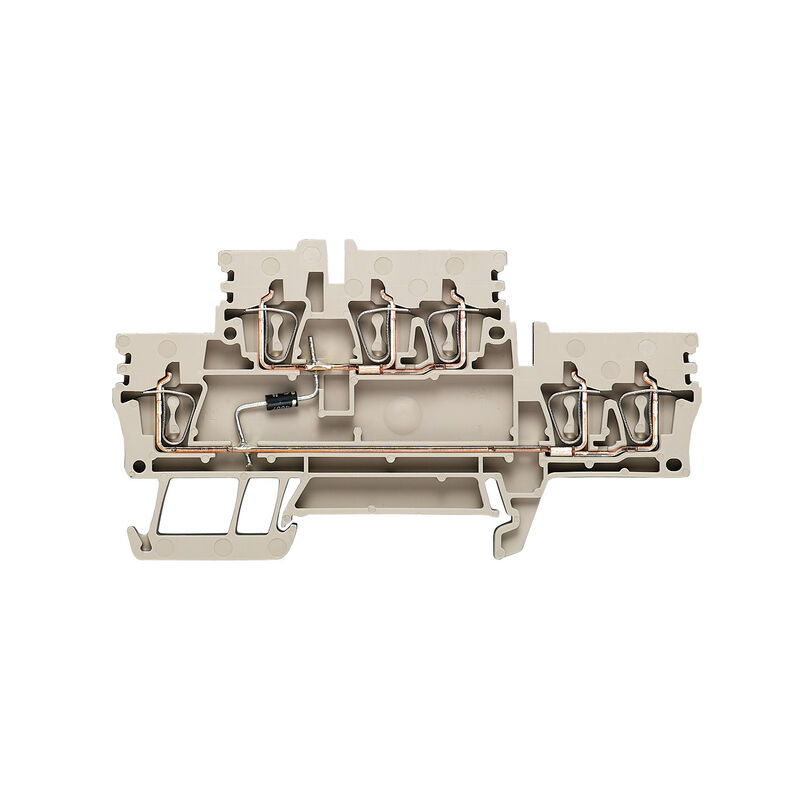

| Version | Z-series, Component terminal, Double-tier terminal, Rated cross-section: 4 mm², Tension-clamp connection, dark beige |
| Order No. | 1924450000 |
| Type | ZDK 2.5/3AN D2 |
| GTIN (EAN) | 4032248563883 |
| Qty. | 50 items |
| Delivery status | This article will no longer be available in the future. |
| Available until | 31.12.2024 |
| Alternative product | [1690020000](~/p/1690020000) |
| Depth | 50.5 mm |
| Depth (inches) | 1.988 inch |
| Depth including DIN rail | 51.5 mm |
| Height | 93 mm |
| Height (inches) | 3.661 inch |
| Width | 5.1 mm |
| Width (inches) | 0.201 inch |
| Net weight | 13.73 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 120 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | c6099607-b1cd-4fc8-8f5b-8c2defa73093 |
| Material | Wemid |
| Colour | dark beige |
| UL 94 flammability rating | V-0 |
| Version |
Tension-clamp connection
with diode for plug-in cross-connector One end without connector |
| End cover plate required | Yes |
| Number of potentials | 1 |
| Number of levels | 2 |
| Number of clamping points per level | 3 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | Yes |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Electronic component | Diode |
| Explosion-tested version | Yes |
| Open sides | right |
| Type of mounting | Snap-on |
| Component diode |
|
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max. | 2.5 mm² |
| Blade size | 0.6 x 3.5 mm |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.05 mm² |
| Connection cross-section, stranded, max. | 2.5 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Connection direction | top |
| Gauge to IEC 60947-1 | A2 |
| Number of connections | 6 |
| Stripping length | 10 mm |
| Type of connection | Tension-clamp connection |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.21 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Certificate No. (CSA) | 200039-1842498 |
| Current size B (CSA) | 24 A |
| Current size C (CSA) | 24 A |
| Voltage size B (CSA) | 300 V |
| Voltage size C (CSA) | 300 V |
| Wire cross section max. (CSA) | 12 AWG |
| Wire cross section min. (CSA) | 30 AWG |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 30 |
| Rated cross-section | 4 mm² |
| Rated voltage | 500 V |
| Rated DC voltage | 500 V |
| Rated current | 0.5 A |
| Current at maximum wires | 0.5 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Pollution severity | 3 |
| Certificate No. (cURus) | E60693 |
| Conductor size Factory wiring max. (cURus) | 12 AWG |
| Conductor size Factory wiring min. (cURus) | 30 AWG |
| Conductor size Field wiring max. (cURus) | 12 AWG |
| Conductor size Field wiring min. (cURus) | 30 AWG |
| Current size B (cURus) | 20 A |
| Current size C (cURus) | 20 A |
| Voltage size B (cURus) | 300 V |
| Voltage size C (cURus) | 300 V |
| Product information | The allowed continuous operating temperature must be observed |
| Approval/Certificate/Document of Conformity |
[Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_36765)
[UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284531) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_44827) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1924450000) |
| User Documentation |
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
[User Manual Z-Series](https://mdcop.weidmueller.com/mediadelivery/asset/900_229215) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000903 |
| ETIM 7.0 | EC000903 |
| ETIM 8.0 | EC000903 |
| ETIM 9.0 | EC000903 |
| ECLASS 9.0 | 27-14-11-27 |
| ECLASS 9.1 | 27-14-11-47 |
| ECLASS 10.0 | 27-14-11-27 |
| ECLASS 11.0 | 27-14-11-27 |
| ECLASS 12.0 | 27-14-11-27 |
| ECLASS 13.0 | 27-25-01-14 |
| ECLASS 14.0 | 27-25-01-14 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
