Properties
| Version | W-Series, Cross-connector, 32 A |
| Order No. | 1762630000 |

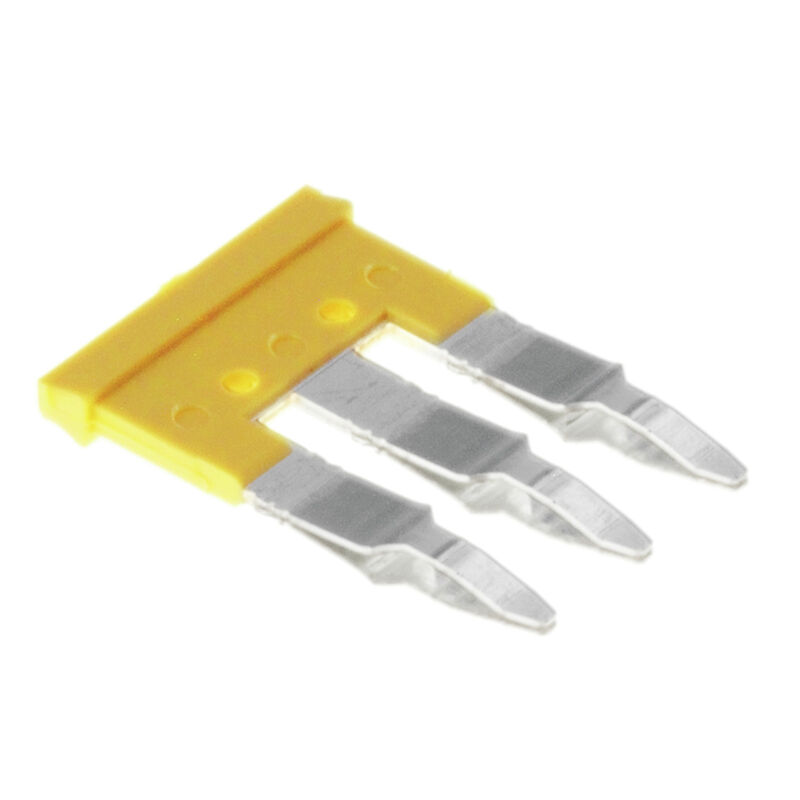

| Type | ZQV 4N/3 GE |
| GTIN (EAN) | 4032248169788 |
| Qty. | 60 items |
| Delivery status | This article will no longer be available in the future. |
| Available until | 31.12.2021 |
| Alternative product | [1527940000](~/p/1527940000) |
| Depth | 25.7 mm |
| Depth (inches) | 1.012 inch |
| Height | 17 mm |
| Height (inches) | 0.669 inch |
| Width | 2.8 mm |
| Width (inches) | 0.11 inch |
| Net weight | 1.95 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 |
| Continuous operating temp., max. | 130 |
| Material | Wemid |
| Colour | yellow |
| UL 94 flammability rating | V-0 |
| Version | For the terminals |
| Explosion-tested version | Yes |
| Type of fixing | Plugged |
| Number of cross-connected terminals | 3 |
| Rated current, 2-pole | 32 A |
| Rated current, multi-pole | 32 A |
| Type | Cross-connector |
| Pitch in mm (P) | 6.1 mm |
| Number of poles | 3 |
| Rated current | 32 A |
| Product information | Due to stability and temperature reasons It is only possible to break out 60% of contact elements The usage of cross connectors reduces the rated voltage to 400VThe voltage reduced to 25V if cut cross connection with blank cut edges are used |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_63473) |
| Engineering Data | [Zuken E3.S](LINK/CAE_EN.html) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1762630000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1762630000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1762630000&norm=0) |
| User Documentation |
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
[User Manual ZQV 2.5](https://mdcop.weidmueller.com/mediadelivery/asset/900_229217) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ROHS | Conform |
