ZTA ZDK 2.5

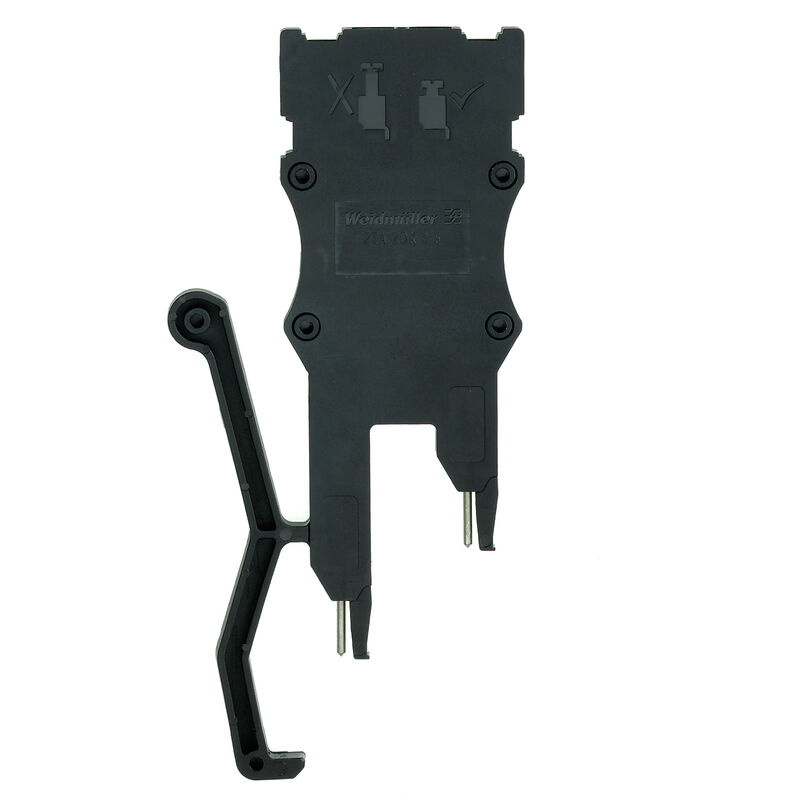

Product image

ZTA ZDK 2.5

Accessories, Test adapter, 6 A

Item No. 1052660000
Download data sheet Engineering Support Product Downloads
Is accessory of 14 Related products 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (rated connection) Dimensions General Rating data Classifications

Approvals

ROHS
Conform

General ordering data

Version
Accessories, Test adapter, 6 A
Order No.
1052660000
Type
ZTA ZDK 2.5
GTIN (EAN)
4032248847891
Qty.
5  items

Dimensions and weights

Depth
110.7  mm
Depth (inches)
4.358  inch
Height
35.6  mm
Height (inches)
1.402  inch
Width
5.1  mm
Width (inches)
0.201  inch
Net weight
22.2  g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-50  °C
Continuous operating temp., max.
120  °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
c6099607-b1cd-4fc8-8f5b-8c2defa73093

Material data

Material
Wemid
Colour
black
Colour of operational elements
red
UL 94 flammability rating
V-0

System specifications

Version
For the terminals
End cover plate required
No
Number of potentials
1
Number of levels
1
Number of clamping points per level
1
N-function
No
PE function
No
PEN function
No

Additional technical data

Snap-on
No
Type of mounting
Plugged
With snap-in pegs
No

Conductors for clamping (rated connection)

Clamping range, max.
1.5  mm²
Clamping range, min.
0.5  mm²
Connection cross-section, stranded, max.
1.5  mm²
Connection direction
top
Number of connections
1
Stripping length
6  mm
Tightening torque, max.
0.3  Nm
Tightening torque, min.
0.3  Nm
Type of connection
Tension-clamp connection
Wire connection cross section, finely stranded, max.
1.5  mm²
Wire connection cross section, finely stranded, min.
0.5  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
1.5  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.5  mm²
Wire connection cross-section, solid core, max.
1.5  mm²
Wire connection cross-section, solid core, min.
0.5  mm²

Dimensions

Pitch in mm (P)
5.1  mm

General

Number of poles
1

Rating data

Rated cross-section
1.5  mm²
Rated voltage
250  V
Rated current
6  A
Volume resistance according to IEC 60947-7-x
1.86  mΩ
Pollution severity
3
Surge voltage category
III

Classifications

ETIM 6.0
EC002555
ETIM 7.0
EC002555
ETIM 8.0
EC002555
ETIM 9.0
EC002555
ETIM 10.0
EC002555
ECLASS 9.0
27-14-11-48
ECLASS 9.1
27-14-11-48
ECLASS 10.0
27-14-11-48
ECLASS 11.0
27-14-11-48
ECLASS 12.0
27-14-11-48
ECLASS 13.0
27-25-03-04
ECLASS 14.0
27-25-03-04
ECLASS 15.0
27-25-03-04
