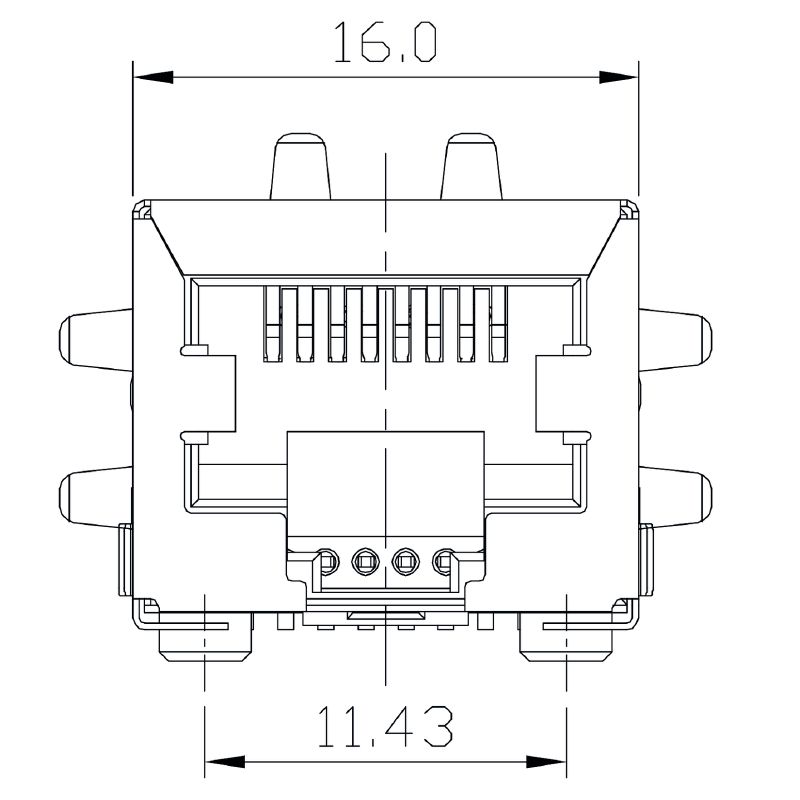

Dimensioned drawing
RJ45M S1D DE4N RL
Dimensioned drawing
RJ45M S1D DE4N RL

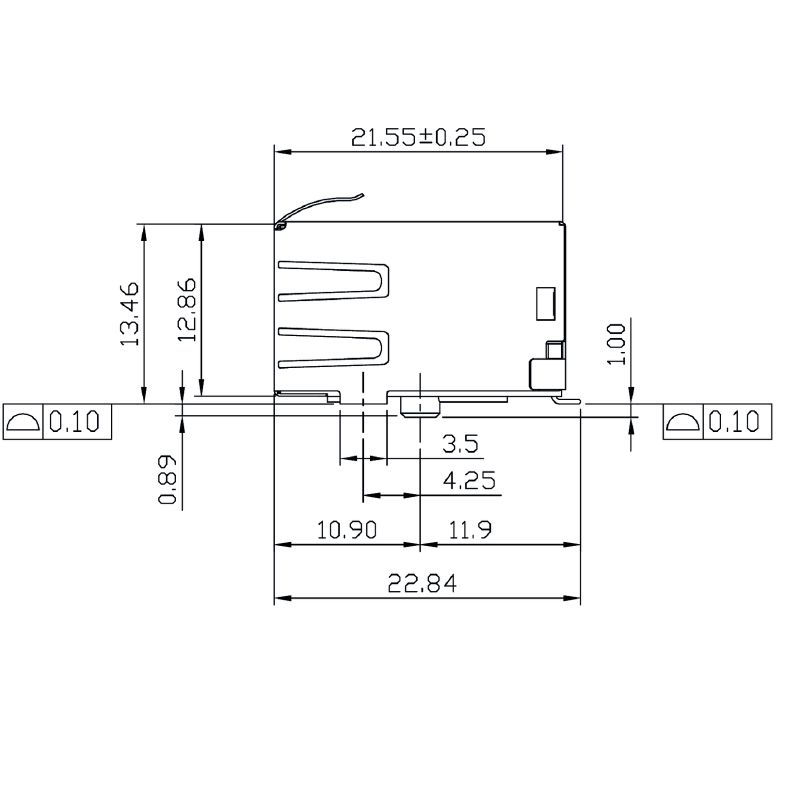

Dimensioned drawing
RJ45M S1D DE4N RL

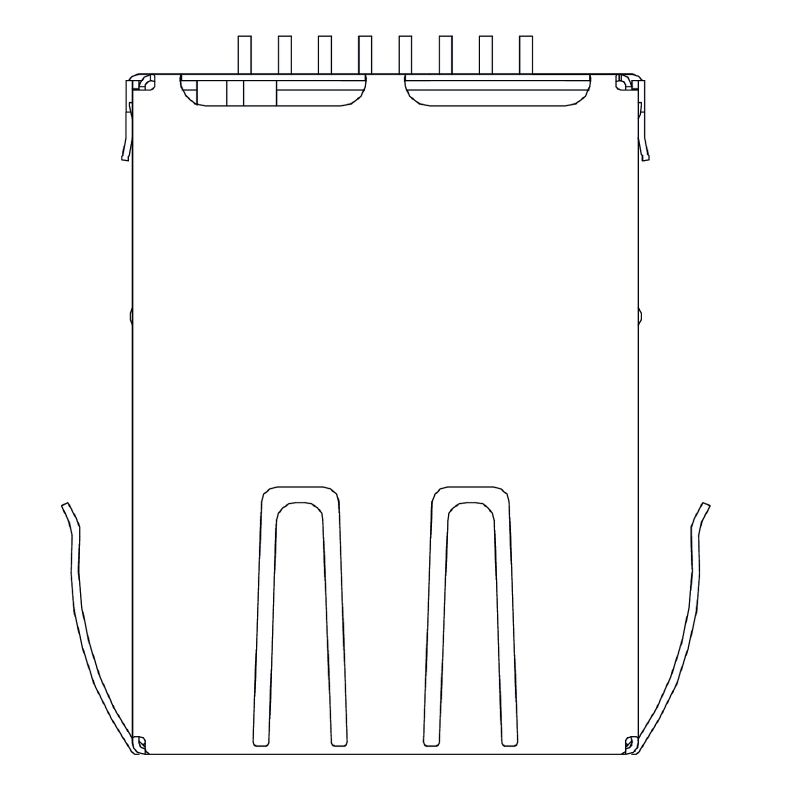

Dimensioned drawing
RJ45M S1D DE4N RL

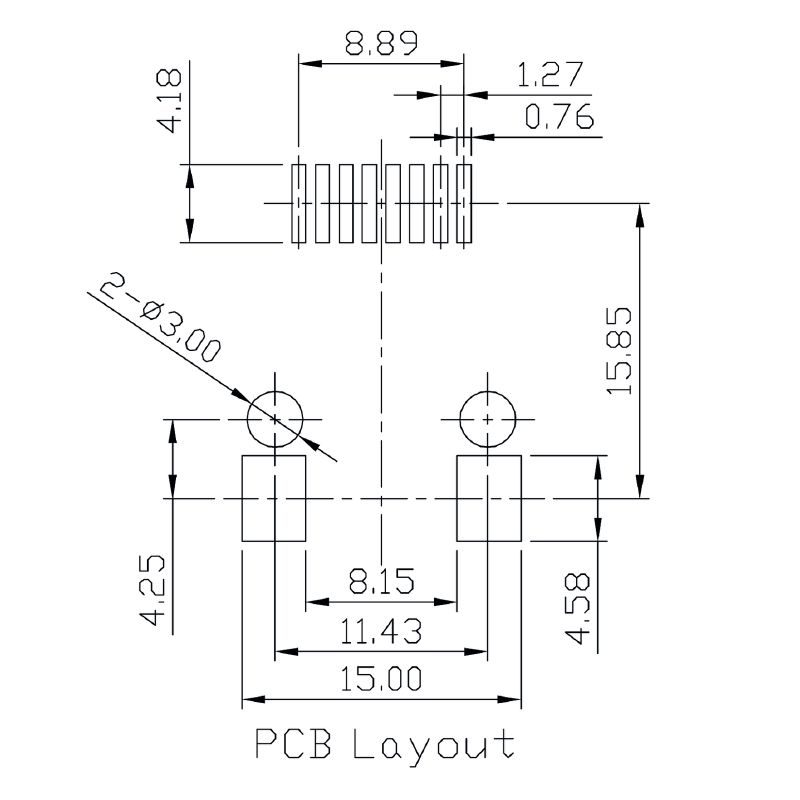

PCB design
RJ45M S1D DE4N RL

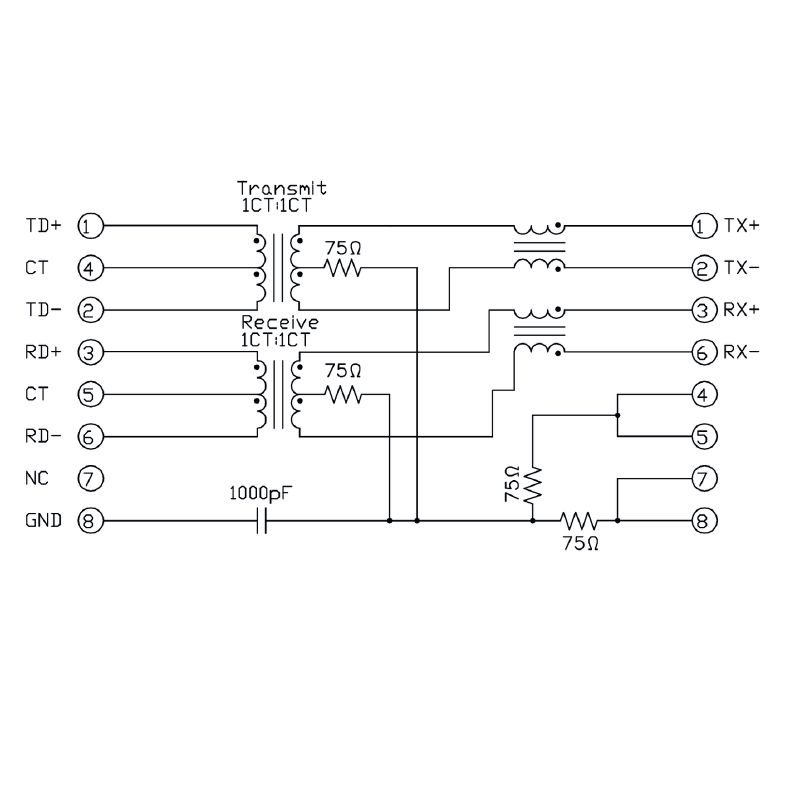

Wiring diagram
RJ45M S1D DE4N RL

RJ45M S1D DE4N RL

PCB plug-in connector, RJ45 jacks transformer, 10/100 MBit/s , SMD solder connection, 90°, Latch option: bottom, Shield tabs: 6 tabs, 30...80 µ" Ni / ≥ 30 µ" Au , LED: No, Number of poles: 8, Tape

Item No. 2564450000
Download data sheet Product Downloads Engineering Support
Counterparts 20 Related products 1
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Electrical properties Material data Packing Classifications

Approvals

ROHS
Conform

General ordering data

Version
PCB plug-in connector, RJ45 jacks transformer, 10/100 MBit/s , SMD solder connection, 90°, Latch option: bottom, Shield tabs: 6 tabs, 30...80 µ" Ni / ≥ 30 µ" Au , LED: No, Number of poles: 8, Tape
Order No.
2564450000
Type
RJ45M S1D DE4N RL
GTIN (EAN)
4050118572940
Qty.
220  items
Packaging
Tape

Dimensions and weights

Depth
21.55  mm
Depth (inches)
0.848  inch
Height
13.46  mm
Height (inches)
0.53  inch
Height of lowest version
12.86  mm
Width
16  mm
Width (inches)
0.63  inch
Net weight
0.001  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Coplanarity:
100  µm
Latch option
bottom
LED
No
Mounting onto the PCB
SMD solder connection
Number of poles
8
Number of solder pins per pole
1
Outgoing elbow
90°
Performance-Category
10/100 MBit/s
Pitch in inches (P)
0.05  "
Pitch in mm (P)
1.27  mm
Plugging cycles
750
Product family
OMNIMATE Data - RJ45 transformer jack
Protection degree
IP20
Shield surface
nickel-plated
Shield tabs
6 tabs
Shielding
Yes
Shielding material
Brass
Solder pin dimensions
Octagonal
Solder pin length (l)
0  mm
Soldering process
Reflow soldering
Manual soldering
Tolerance of solder pin position
± 0.1 mm
Transmission rate
10/100 MBit/s
Type of connection
SMT solder connection

Electrical properties

Dielectric strength, contact / contact
1000 V DC
Dielectric strength, contact / shield
1500 V DC
Rated current
1.5 A
Rated voltage
125  V

Material data

Insulating material
PA 9T
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
II
Comparative Tracking Index (CTI)
≥ 500
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact base material
Phosphorus bronze
Contact material
Cu-alloy
Contact surface
Gold over nickel
Layer structure of plug contact
30...80 µ" Ni / ≥ 30 µ" Au
Storage temperature, min.
-40  °C
Storage temperature, max.
85  °C
Operating temperature, min.
-40  °C
Operating temperature, max.
85  °C

Packing

Packaging
Tape
VPE length
356  mm
VPE width
351  mm
VPE height
129  mm
Tape reel diameter ∅ (A)
330 mm
Surface resistance
Rs = 109 - 1012 Ω

Classifications

ETIM 6.0
EC002637
ETIM 7.0
EC002637
ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 9.1
27-44-04-02
ECLASS 10.0
27-44-04-02
ECLASS 11.0
27-46-02-01
ECLASS 12.0
27-46-02-01
ECLASS 13.0
27-46-02-01
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
