SAIL-M12GM12G-3-5.6U
SAIL-M12GM12G-3-5.6U
Detailed drawing
Male, straight
SAIL-M12GM12G-3-5.6U
Detailed drawing
Straight socket
SAIL-M12GM12G-3-5.6U
Pole scheme
Male
SAIL-M12GM12G-3-5.6U
Pole scheme
Socket
SAIL-M12GM12G-3-5.6U
Wiring diagram
Schaltbild

SAIL-M12GM12G-3-5.6U

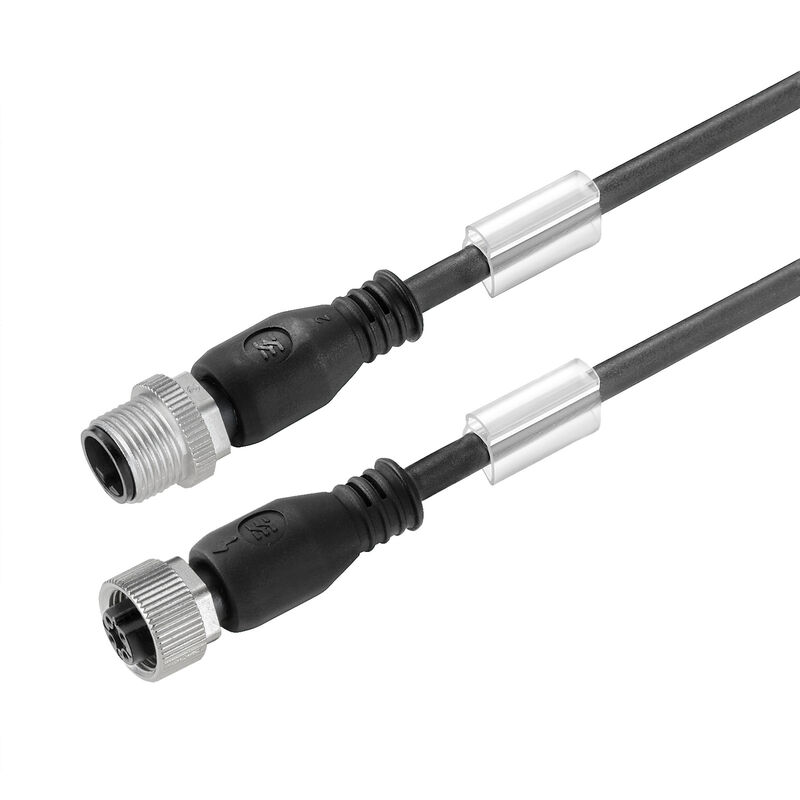

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 3, 5.6 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Item No. 9457230560
Download data sheet Product Downloads Engineering Support
Related products 82
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties Standards Plug, left Plug, right Product images Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Versione
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 3, 5.6 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
N. d’ordine
9457230560
Tipo
SAIL-M12GM12G-3-5.6U
GTIN (EAN)
4050118620283
Qty.
1 items

Dimensions and weights

Diameter
3.8 mm
Net weight
136.4 g

Environmental Product Compliance

Stato conformità RoHS
Compliant with exemption
Esenzione RoHS (se applicabile/nota)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Bending cycles
12 Mio
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Cable length
5.6 m
Ciclos de plegado a torsión
> 5 Mio.
Configurable cable length
Yes
Core cross-section
0.34 mm²
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Diametro esterno
3.8 mm ± 0.15 mm
Farbcodierung
brown
blue
black
Gama de temperatura, fija
-50...80 °C
Halogen
No
Hydrolysis and microbe resistant
Yes
Insulation
PP
LABS-free
Yes
Lunghezza della torsione
1 m
Materiale della guaina igroscopico
Yes
Numero di poli
3
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Resistance to oils
Yes
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Resistente a las salpicaduras de soldadura
No
Sheath material
PUR
Sheathing colour
black
Shielded
No
Speed
3.33 m/s
Suitable for cable carriers
Yes
Temperature range, moving
-25...60 °C
Torsionsfestigkeit
180 °/m
Welding spark resistance
No
Zesítěné vyzařování
No

General technical data

Filettatura del collegamento
M12 / M12
Insulation resistance
108 Ω
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
when screwed in
IP69
Shock and vibration proof according to
Section B
Superficie dei contatti
Gold-plated
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Versione
pin, straight - socket, straight
ハウジング主要材質
PUR

Electrical properties

Resistenza d'isolamento
108 Ω
Tensione nominale
250 V

Standards

Shock and vibration proof according to
Section B

Plug, left

Stickkontakt vänster
M12, A-coded, IP69, male contact, straight, Plastic, unshielded

Plug, right

Штекер правый
M12, A-coded, IP69, female contact, straight, Plastic, unshielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
